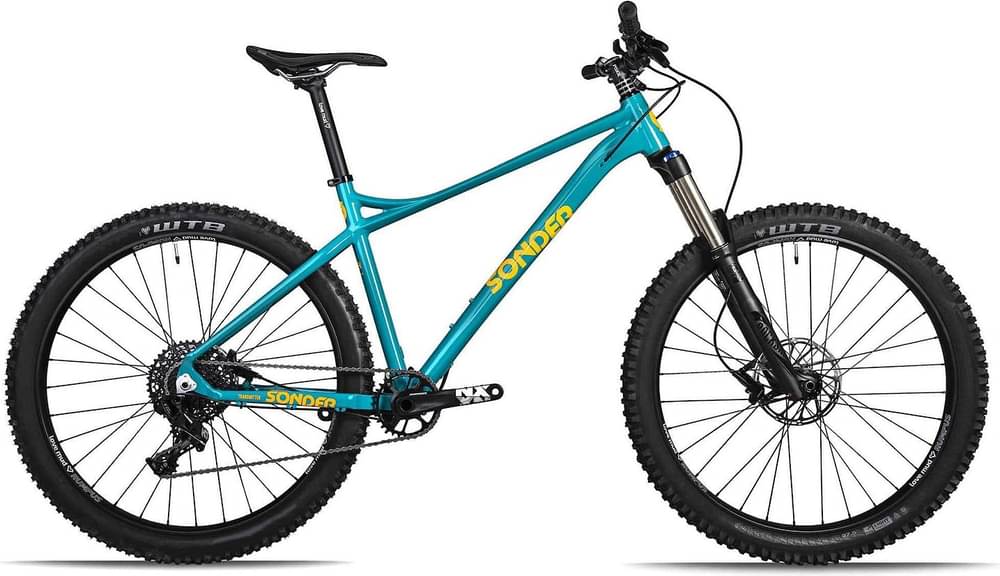

Sonder Transmitter SX Eagle 2021
2021 Mountain
Estimate price |
1,199$
Weight | 13.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL Silver
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle PowerSpline, 170mm length
Bottom Bracket
SRAM PowerSpline, 73mm English/BSA threaded
Chain
SRAM NX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Shimano, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
Sonder Nova
Spokes
Sonder Nova wheelset
Tires
Front: WTB Vigilante, Comp, 27.5" x 2.8", Rear: WTB Trail Boss, Comp, 27.5" x 2.6"
Brakes
Brakes
SRAM Level, 2-piston, Avid CenterLine rotors (180mm front, 160mm rear)
Brake Levers
SRAM Level
Cockpit
Stem
Love Mud Piskie, 35mm length, 31.8mm bar clamp
Handlebar
Love Mud Aspect Riser, 31.8mm clamp diameter
Grips
WTB Wafel
Headset
FSA Orbit C-40-ACB
Seat
Saddle
Love Mud Abode
Seatpost
Love Mud Membar, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 724 mm | 749 mm | 768 mm | 795 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 116 mm | 116 mm | 116 mm | 116 mm |
| Stack | 582 mm | 591 mm | 591 mm | 605 mm |
| Reach | 415 mm | 435.5 mm | 455.5 mm | 475.5 mm |
| Top Tube Length | 574 mm | 596 mm | 616 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 115 mm | 115 mm | 130 mm |
| Chainstay Length | 418 mm | 418 mm | 420 mm | 423 mm |
| Wheelbase | 1137 mm | 1162 mm | 1184 mm | 1213 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 52 mm |
| Standover Height | 743 mm | 752 mm | 776 mm | 789 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Transmitter SX Eagle belongs to the Sonder Transmitter model. There are 3 bikes that carry this model name. Take a sneak peek at all Sonder Transmitter bikes models from 2021, by clicking here.
Model range prices
Sonder Transmitter SX Eagle 2021 is the cheapest bike model and costs 1199$. Sonder Transmitter GX Eagle 2021 is the most expensive one and costs 2399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1199$. In conclusion, this bike price is 200.17% smaller than the price of the average Enduro bike.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.3 kg (29.32 lbs), Sonder bike is a bit lighter than average. In short, the average Enduro bike weight is 7.29% higher than this one.
Transmitter SX Eagle components
Fork
The Transmitter SX Eagle comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Transmitter SX Eagle are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Sonder Transmitter SX Eagle is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Transmitter SX Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
