Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized E5 aluminum, fully manipulated tubing, smooth weld compact race design, 1.5"" integrated headset
Suspension Fork
Specialized FACT carbon, carbon legs, aluminum crown and steerer, 1.5"" lower bearing
Drivetrain
Rear Derailleur
SRAM Apex
Front Derailleur
SRAM Apex
Shift Levers
SRAM Apex
Cassette
SRAM Apex, 10-speed, 11-28t
Crank
SRAM S100
Bottom Bracket
With crankset
Chain
KMC DX10SC
Pedals
Black cage, body & toe clips w/ strap
Wheels
Front Hub
Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes
Rear Hub
Forged aluminum, 32h double sealed ball bearings, cassette, QR
Rims
Mavic CXP22 w/ eyelets
Spokes
Stainless 14g
Tires
Specialized All Condition, 700x23c, aramid bead, 60TPI, w/ Flak Jacket protection
Brakes
Brakes
Tektro cold-forged, dual pivot w/ cartridge pads
Brake Levers
SRAM Apex
Cockpit
Stem
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
Handlebar
Specialized Elite, 6061 aluminum, 130 drop, 90 reach, 31.8mm
Headset
1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer with 20mm of spacers
Seat
Saddle
Body Geometry Riva Road, w/ steel rails
Seatpost
Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 613 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 145 mm | 170 mm | 205 mm | 230 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 729 mm | 769 mm | 790 mm | 808 mm | 828 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

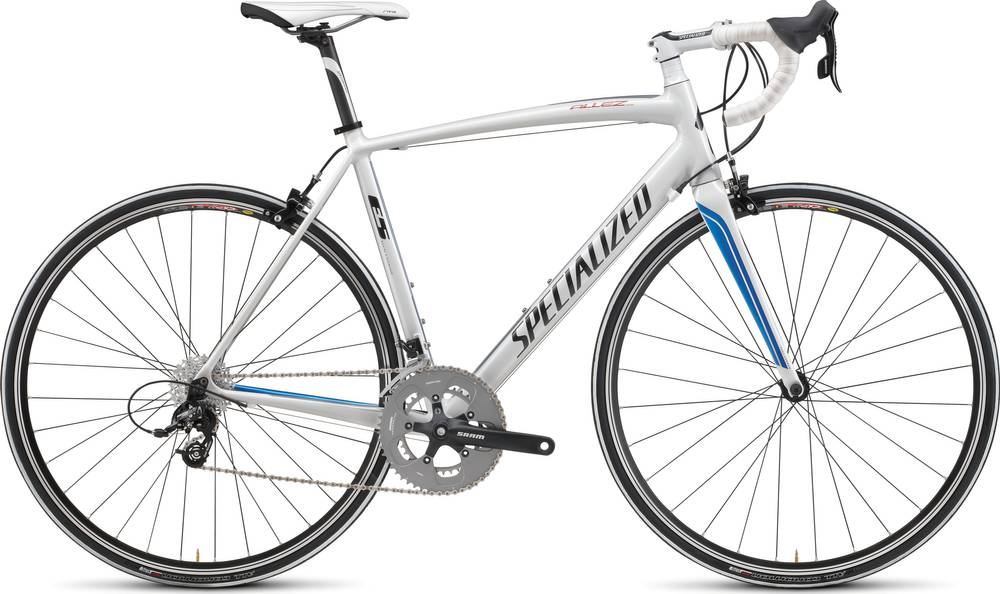

Model Overview
Allez Comp Compact M2 Apex completes the Specialized Allez model. There are 112 bikes that carry this model name. You can easily view all of the Specialized Allez bikes models from 2011, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Allez Comp Compact M2 Apex bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
