Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, fully manipulated tubing, smooth weld compact race design, integrated headset
Suspension Fork
Specialized FACT carbon, carbon fiber legs, aluminum crown and steerer
Drivetrain
Rear Derailleur
Shimano Tiagra, short cage
Front Derailleur
Shimano Sora, 31.8mm clamp, bottom pull
Shift Levers
Shimano Sora, 9-speed STI, flight deck compatible
Cassette
Shimano Tiagra, 9-speed, 11-25t
Crank
Sugino, five arm, polished
Bottom Bracket
Sealed cartridge, square taper, 68mm x 103mm
Chain
Shimano HG73, 9-speed
Pedals
Silver cage, black body, w/ toe clip and strap
Wheels
Front Hub
Specialized forged alloy, 32 hole, sealed bearings, QR
Rear Hub
Specialized forged alloy, 32 hole, double sealed bearings, cassette, QR
Rims
Alex S500, sleeve joint, CNC sidewalls, 32 hole
Spokes
Stainless 14g
Tires
Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket
Brakes
Brakes
Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ standard pads
Brake Levers
Shimano Sora, 9-speed STI, flight deck compatible
Cockpit
Stem
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
Handlebar
Specialized Comp, 6061 alloy, short drop, ergonomic shaping, 31.8mm
Headset
Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone with one 10mm and two 5mm alloy spacers
Seat
Saddle
Specialized Comp Road, full padding
Seatpost
Specialized carbon wrapped, two-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 58cm | 61cm | 56cm | 54cm | 49cm | 52cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 0.93 mm | 0.97 mm | 0.92 mm | 0.91 mm | 0.83 mm | 0.9 mm |
| Bottom Bracket Height | 262 mm | 263 mm | 263 mm | 263 mm | 264 mm | 263 mm |
| Front Center | 205 mm | 230 mm | mm | mm | mm | mm |
| Stack | 547 mm | 587 mm | 527 mm | 507 mm | 437 mm | 487 mm |
| Reach | 589 mm | 607 mm | 572 mm | 555 mm | 525 mm | 544 mm |
| Seat Tube Angle | 56 ° | 59 ° | 59 ° | 60 ° | 60 ° | 65 ° |
| Seat Tube Length | 407 mm | 410 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 72 mm | 71 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

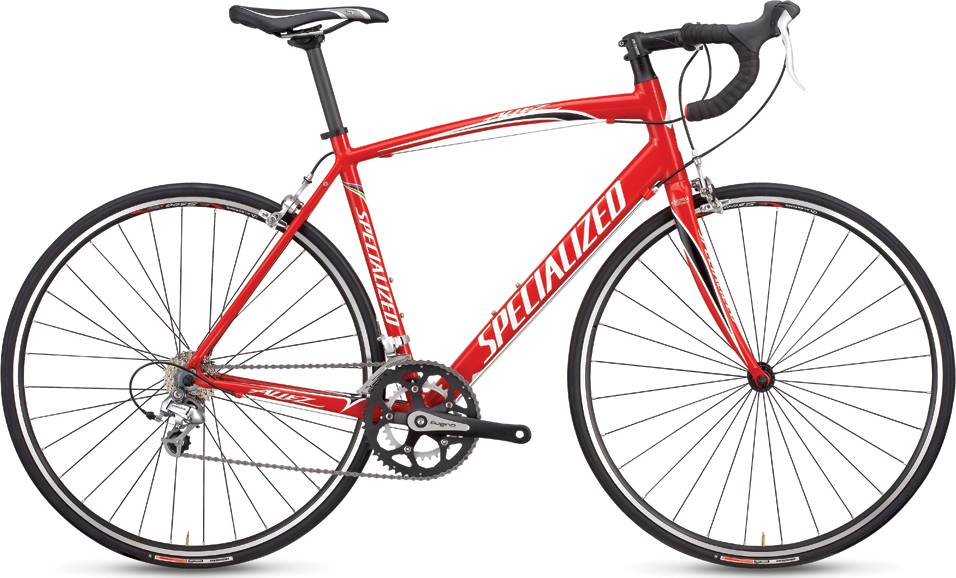

Model Overview
Allez Compact is part of the Specialized Allez model. Specialized launched 112 bikes of this model so far. Take a sneak peek at all Specialized Allez bikes models from 2009, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Allez Compact components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Allez Compact 2009 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Allez Compact has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
