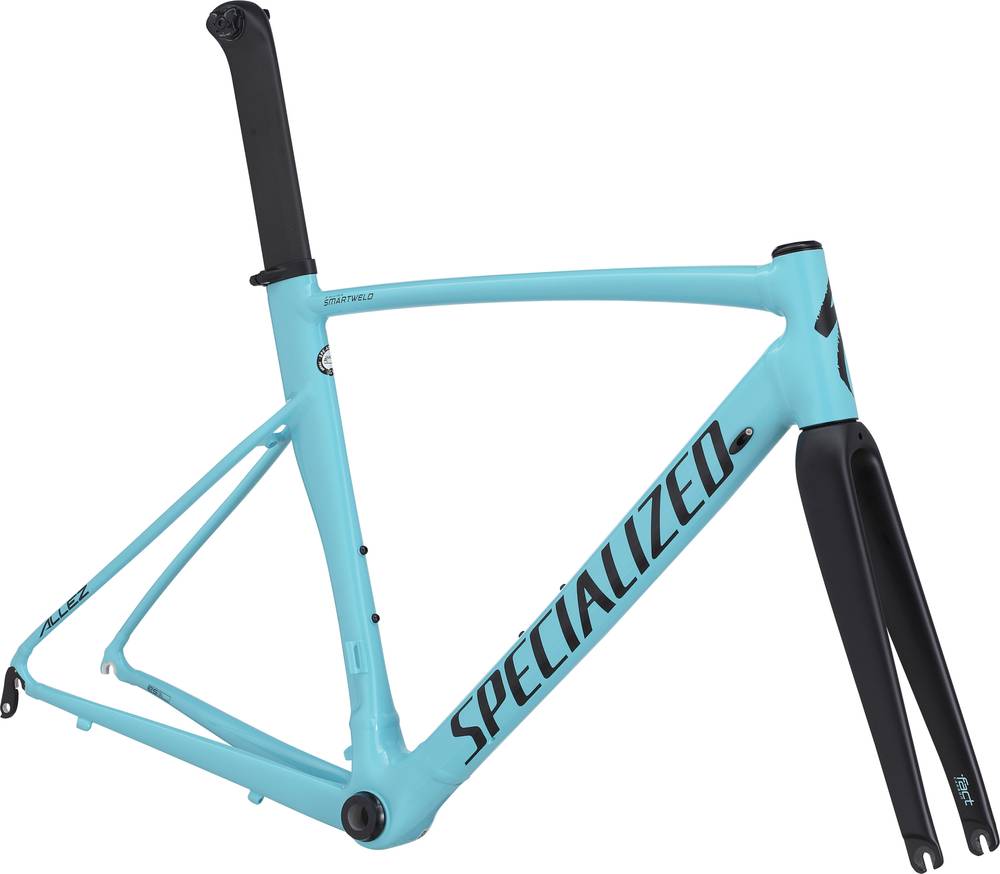

Specialized Allez DSW SL Sprint Frameset – Limited Edition II 2017
2017 Road
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized E5 Premium Aluminum w/D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
Suspension Fork
S-Works FACT full carbon, size-specific taper
Drivetrain
Bottom Bracket
Enduro BB30
Seat
Seatpost
Specialized Venge, FACT carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.39 mm | 1.41 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 272.5 mm | 272.5 mm | 272.5 mm | 272.5 mm | 272.5 mm | 272.5 mm |
| Front Center | 564 mm | 566 mm | 577 mm | 589 mm | 602 mm | 608 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 494 mm | 506 mm | 525 mm | 546 mm | 575 mm | 596 mm |
| Reach | 367 mm | 372 mm | 377 mm | 387 mm | 392 mm | 397 mm |
| Top Tube Length | 511 mm | 519 mm | 530 mm | 546 mm | 559 mm | 570 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm | 180 mm | 200 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm |
| Wheelbase | 951 mm | 953 mm | 964 mm | 976 mm | 989 mm | 997 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 724 mm | 737 mm | 757 mm | 776 mm | 800 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
Allez DSW SL Sprint Frameset – Limited Edition II completes the Specialized Allez model. Specialized launched 112 frames of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race frames average price
According to our math, the average price for a trustworthy Race frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Allez DSW SL Sprint Frameset – Limited Edition II components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
This frame is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
