Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized E5 aluminum, fully manipulated tubing, smooth weld, compact race design, 1-1/2"" lower bearing, integrated headset, OSBB
Suspension Fork
Specialized FACT carbon, full monocoque, OS race for 1-1/2"" bearing
Drivetrain
Rear Derailleur
SRAM Rival
Front Derailleur
SRAM Rival
Shift Levers
SRAM Rival DoubleTap, 10-speed
Cassette
SRAM Apex, 10-speed, 11-28t
Crank
FSA SL-K Light BB30 carbon
Bottom Bracket
With crankset
Chain
KMC X10 CP
Pedals
Nylon flat test ride, loose ball, w/ reflectors
Wheels
Rims
DT Axis 4.0
Tires
Specialized Turbo Pro w/ BlackBelt, 127 TPI, aramid bead, 700x23c
Brakes
Brakes
SRAM Apex
Brake Levers
SRAM Rival
Cockpit
Stem
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
Handlebar
New Specialized Tarmac Comp, alloy
Headset
1-1/8"" upper and 1-1/2"" lower Cr-Mo cartridge bearings integrated, w/ headset, 20mm cone spacer, w/ 20mm of spacers
Seat
Saddle
Body Geometry Romin Comp, hollow Cr-Mo rails
Seatpost
New Specialized Sport, alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.38 mm | 1.43 mm | 1.48 mm | 1.54 mm | 1.58 mm | 1.64 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 613 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm | 53 mm |
| Stack | 497 mm | 519 mm | 540 mm | 567 mm | 599 mm | 624 mm | 644 mm |
| Reach | 377 mm | 377 mm | 377 mm | 384 mm | 389 mm | 394 mm | 393 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm | 620 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 145 mm | 170 mm | 205 mm | 230 mm | 250 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm | 1009 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 729 mm | 769 mm | 790 mm | 808 mm | 828 mm | 855 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

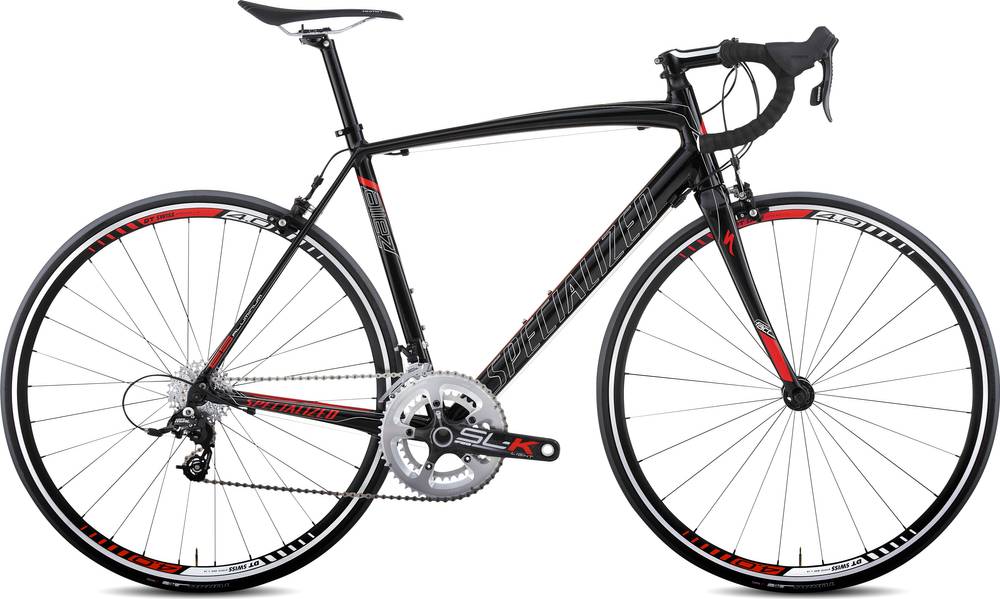

Allez EVO Rival Mid-Compact is a Specialized Allez model. Specialized released 112 bikes variations of this model so far. Take a sneak peek at all Specialized Allez bikes models from 2012, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
Allez EVO Rival Mid-Compact has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Allez EVO Rival Mid-Compact are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Allez EVO Rival Mid-Compact is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
