Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset SLX, microSHIFT XCD -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 SL Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, internal cable routing, flat mount disc, rack & Plug + Play mounts
Drivetrain
Rear Derailleur
Shimnao SLX, Shadow Plus design, SGS cage, 10-speed
Front Derailleur
microSHIFT XCD, 31.8mm clamp, 10-/11-speed, MTB double
Shift Levers
Flow Set Control, 10-speed
Cassette
Sunrace, 11-40t, 10-speed
Crank
FSA V-Drive, MegaEXO BB, 10-/11-speed, hollow forged 7075 aluminum, 170mm Q-factor, direct-mount, 44/32T w/chainguard
Bottom Bracket
FSA MegaEvo Road, 68mm, Di2 wiring compatible
Chain
KMC X10, 10-speed w/reusable MissingLink
Pedals
Specialized Fitness platform, alloy
Wheels
Front Hub
Axis Sport Disc
Rear Hub
Shimano, loose ball bearings, 11-speed, 135mm axle, 28h
Rims
700c Disc 6061 double wall pin joint
Spokes
Stainless, 14g w/self-locking threads, 700c
Tires
Trigger Sport Reflect, 700x38mm, 60TPI, wire bead
Brakes
Brakes
Tektro Flow Set Control, hydraulic disc, metal pads, post mount, 160mm rotor
Cockpit
Handlebar
Specialized, double-butted alloy, 9-degree backsweep, 31.8mm
Grips
Body Geometry Flow Set Control Grips, lock-on
Seat
Saddle
Aldia Sport, steel rails, 155mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.52 mm | 1.52 mm | 1.52 mm |
| Front Center | 613 mm | 630 mm | 641 mm | 659 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 586 mm | 600 mm | 617 mm | 636 mm |
| Reach | 384 mm | 396 mm | 406 mm | 418 mm |
| Top Tube Length | 561 mm | 578 mm | 593 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 375 mm | 425 mm | 475 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1057 mm | 1073 mm | 1084 mm | 1102 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 703 mm | 731 mm | 764 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

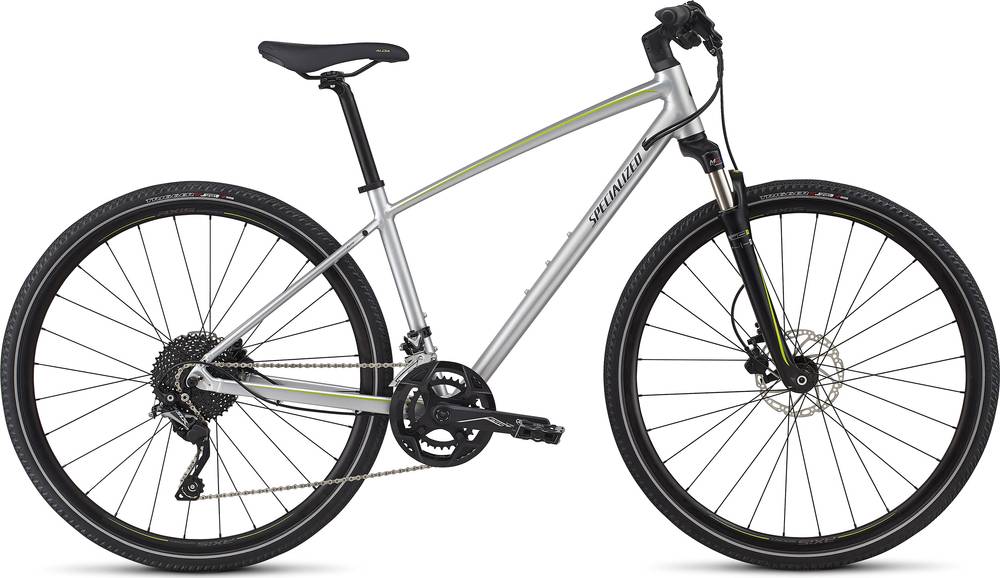

Ariel Elite is part of the Specialized Ariel model. Specialized launched 45 bikes of this model so far. You can easily view all of the Specialized Ariel bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Ariel Elite components
Wheels
The Ariel Elite 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Ariel Elite has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
