Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio, microSHIFT MTB -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 SL Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, internal cable routing, flat mount disc, rack & Plug + Play mounts
Drivetrain
Rear Derailleur
Shimano Alivio, Shadow design, SGS cage, 9-speed
Front Derailleur
microSHIFT, 31.8mm clamp, 9-speed, MTB double
Shift Levers
microSHIFT MTB, 9-speed
Cassette
Sunrace, 9-speed, 11-36t
Crank
FSA Alpha Drive, forged 6061 aluminum, 44/32T w/chainguard
Bottom Bracket
FSA BB-7420ST
Pedals
Specialized Fitness platform
Wheels
Front Hub
Specialized Center Lock, loose ball bearings, 32h, 9mm QR
Rear Hub
Shimano Center Lock disc, 8-/9-/10-speed freehub, 135mm axle, 32h
Rims
700c disc, 6061 aluminum double-wall
Spokes
Stainless, 14g
Tires
Trigger Sport Reflect, 700x38mm, 60TPI, wire bead
Brakes
Brakes
Tektro Flow Set Control, hydraulic disc, metal pads, post mount, 160mm rotor
Cockpit
Stem
3D forged aluminum, 7-degree rise, 31.8mm clamp
Handlebar
Specialized, double-butted alloy, 9-degree backsweep, 31.8mm
Grips
Body Geometry Flow Set Control Grips, lock-on
Seat
Saddle
Aldia Sport, steel rails, 155mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.52 mm | 1.52 mm | 1.52 mm |
| Front Center | 613 mm | 630 mm | 641 mm | 659 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 586 mm | 600 mm | 617 mm | 636 mm |
| Reach | 384 mm | 396 mm | 406 mm | 418 mm |
| Top Tube Length | 561 mm | 578 mm | 593 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 375 mm | 425 mm | 475 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1057 mm | 1073 mm | 1084 mm | 1102 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 703 mm | 731 mm | 764 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

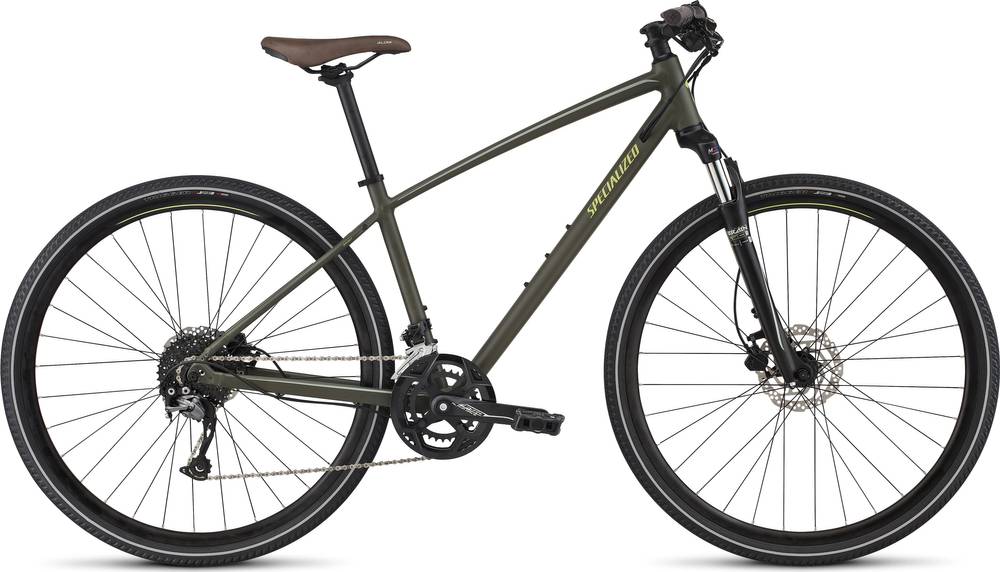

Ariel Sport is a Specialized Ariel model. There are 45 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness bikes average price
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Wheels
When it comes to wheels, the Ariel Sport bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ariel Sport comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Ariel Sport comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
