Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset X9, Apex -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fully butted premium Cr-Mo, heat treated
Suspension Fork
Butted premium Cr-Mo, unicrown, heat treated
Drivetrain
Rear Derailleur
SRAM X9 Type 2, 10-speed, long cage
Front Derailleur
SRAM Apex, braze-on
Shift Levers
SRAM Apex
Cassette
SRAM PG 1030, 10-speed, 11-36
Crank
Forged alloy, 2 pc.
Bottom Bracket
Included w/ crankset
Chain
KMC X10, 10-speed, reusable Missing Link
Pedals
Alloy, 1 pc. body, stamped cage, 9/16""
Wheels
Front Hub
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
Rear Hub
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
Rims
29"" disc, Al6061-T6 double-wall, 622-21c, 32h
Spokes
Stainless, 2.0/1.8/2.0mm
Tires
Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 700x48c
Brakes
Brakes
Tektro Spyre-CS, mechanical disc, dual pivot, 160mm rotor, stainless hardware
Brake Levers
SRAM Apex
Cockpit
Stem
Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
Handlebar
Specialized AWOL, 6061 double-butted alloy, 12-degree flare-out, 31.8mm
Headset
1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 15mm cone spacer
Seat
Saddle
Body Geometry Phenom, steel rails, 143mm
Seatpost
Specialized alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.56 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 622 mm | 626 mm | 646 mm | 659 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 64 mm | 64 mm | 64 mm |
| Stack | 596 mm | 624 mm | 647 mm | 671 mm |
| Reach | 393 mm | 399 mm | 411 mm | 416 mm |
| Top Tube Length | 562 mm | 582 mm | 607 mm | 632 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 475 mm | 495 mm | 525 mm | 550 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 160 mm | 185 mm | 210 mm | 235 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1074 mm | 1079 mm | 1099 mm | 1111 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 780 mm | 801 mm | 828 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

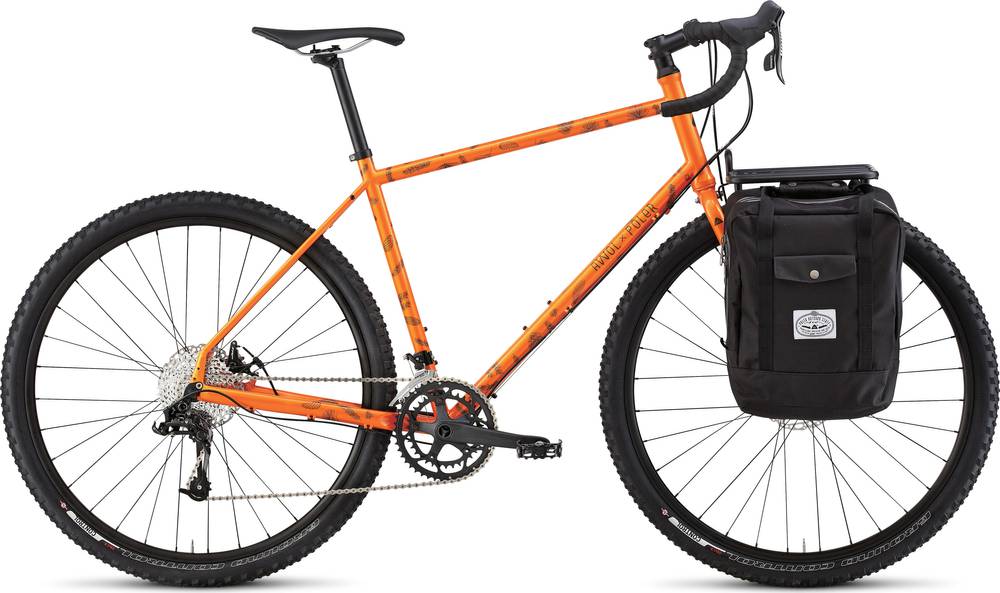

AWOL x POLER is part of the Specialized Awol model. There are 11 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring bikes average price
If you want an acceptable Touring bike you should know that the average price is 1007$. However, you could also get a good Touring bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The wheels on AWOL x POLER are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized AWOL x POLER has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
