Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 160mm -
Fork Marzocchi Bomber Z1
-
Groupset X7, X4 -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BigHit FSR, M4 Manipulated Alloy ORE TT/DT, full cartridge bearing pivots, ISCG mount, asymetrical rear triangle, 6.75"" travel
Suspension Fork
Marzocchi Z1 Sport for Specialized, 160mm travel, coil spring, rebound adj. 20mm thru-axle, 1-1/8"" to 1.5"" tapered alloy steerer tube
Rear Shock
Fox Vanilla R coil, rebound adjust, 8.5x2.25"", rebound adj. S:450, M:500, L:550
Drivetrain
Rear Derailleur
SRAM X-7, 9-speed, short cage
Shift Levers
SRAM X4-R, trigger, 8-speed
Cassette
SRAM PG-830, 8-speed, 11-32t
Crank
Truvativ Ruktion, 170mm w/ SBC chain guide
Bottom Bracket
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell
Chain
KMC X8, 8-speed w/reusable missing link
Pedals
Specialized Lo-Pro alloy
Wheels
Front Hub
Specialized Hi-Lo disc, 20mm thru-axle, 36h
Rear Hub
Specialized bolt-on, 135mm, machined flange, sealed cartridge bearing, 5mm QR, 36h
Rims
Specialized P-Disc, 32mm, 36h
Spokes
2.0mm stainless, black, brass nipples
Tires
Specialized Clutch SX 26x2.3"", 60 TPI, aramid bead, cap ply, soft dual compound
Brakes
Brakes
Avid Juicy 3 full hydraulic, metallic brake pads, 203mm rotor
Brake Levers
Avid Juicy 3 Hydraulic
Cockpit
Stem
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged
Handlebar
Specialized DH rise bar, 31.8mm bar, 8 degree up, 8 degree backsweep, 640mm wide
Grips
Specialized thin lock on grip, alloy bar ends
Headset
1-1/8"" to 1.5"" Threadless, alloy, cartridge bearing
Seat
Saddle
Specialized Enduro, 8mm steel rails, SL foam
Seatpost
6061 butted alloy, two-bolt, 0 offset, 30.9x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm |
| Top Tube Length | 557 mm | 580 mm | 602 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 394 mm | 419 mm | 458 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1156 mm | 1179 mm | 1201 mm |
| Bottom Bracket Drop | -22 mm | -22 mm | -22 mm |
| Standover Height | 752 mm | 757 mm | 744 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

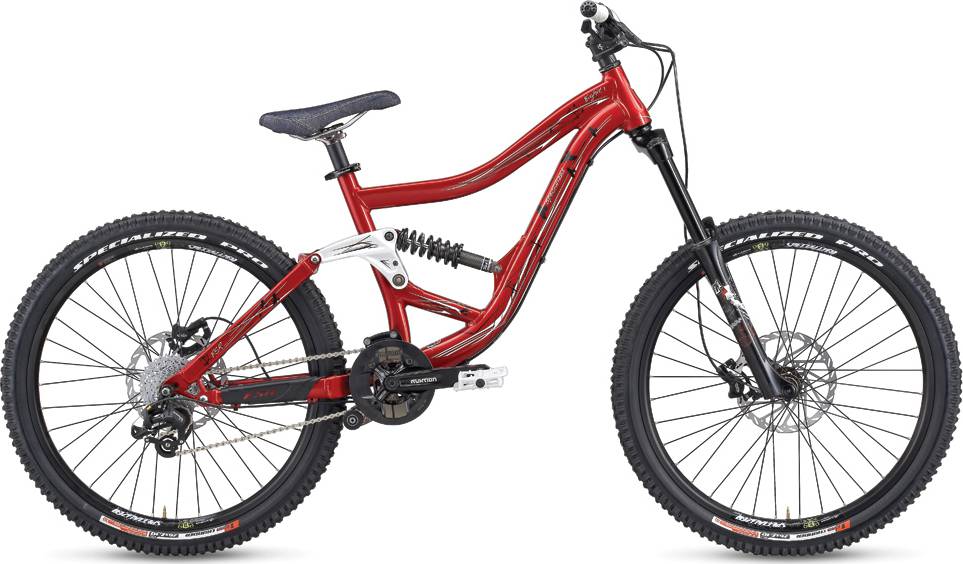

BigHit FSR I is a Specialized Bighit model. Specialized launched 9 bikes of this model so far. Check out the entire range from 2009 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
BigHit FSR I components
Fork
The Marzocchi Bomber Z1 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the BigHit FSR I bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized BigHit FSR I has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
BigHit FSR I comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
