Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 170mm -
Fork X Fusion
-
Groupset X7, X4 -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M4 tubing ORE TT/DT, tapered HT, ISCG mount, asymetrical rear triangle, full cartridge bearing pivots, 7.5"" travel
Suspension Fork
X-Fusion Vengeance, coil spring, tapered alloy steerer, reb adj. 20mm thru-axle, 170mm travel
Rear Shock
Custom X-Fusion Vector R, coil over w/piggy back, adj. rebound, Spring rate S: 400, M: 450, L: 500 8.5x2.5""
Drivetrain
Rear Derailleur
SRAM X.7, 9-speed, short cage
Shift Levers
SRAM X.4, 8-speed, trigger
Cassette
SRAM PG-830, 8-speed, 11-32t
Crank
Truvativ Ruktion, 170mm w/ SBC chain guide
Bottom Bracket
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell
Chain
KMC X8, 8-speed, w/ reuseable Missing Link
Pedals
Alloy platform, 9/16""
Wheels
Front Hub
Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 36h
Rear Hub
Specialized Disc, bolt-on 135mm, 36h
Rims
P-Disc, 32mm, 36h
Spokes
2.0mm (14g) stainless
Tires
Specialized Butcher SX, 60 TPI, aramid bead, soft dual compound, 26x2.3""
Brakes
Brakes
Avid Juicy 3, hydraulic disc, metallic pads, G3 Clean Sweep rotor, 203mm rotor
Brake Levers
Avid Juicy 3 hydraulic
Cockpit
Stem
Specialized DH, forged, 35mm length, 4-bolt, 31.8mm
Handlebar
Specialized DH low-rise bar, 6061 alloy, 750mm wide, 8 degree backsweep, 6 degree up, 31.8mm
Grips
Specialized lock-on, S/M: Grappler, Other: Rocca
Headset
1-1/8"" loose cage upper bearing and 1.5"" alloy lower loose-cage bearing
Seat
Saddle
Specialized Demo, 7mm hollow Cr-Mo rails
Seatpost
6061 alloy, two bolt micro adjust, no offset, 30.9mm, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm |
| Stack | 589 mm | 589 mm | 589 mm |
| Reach | 398 mm | 421 mm | 443 mm |
| Top Tube Length | 557 mm | 580 mm | 602 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 394 mm | 419 mm | 458 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1156 mm | 1179 mm | 1201 mm |
| Bottom Bracket Drop | -22 mm | -22 mm | -22 mm |
| Standover Height | 752 mm | 763 mm | 764 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

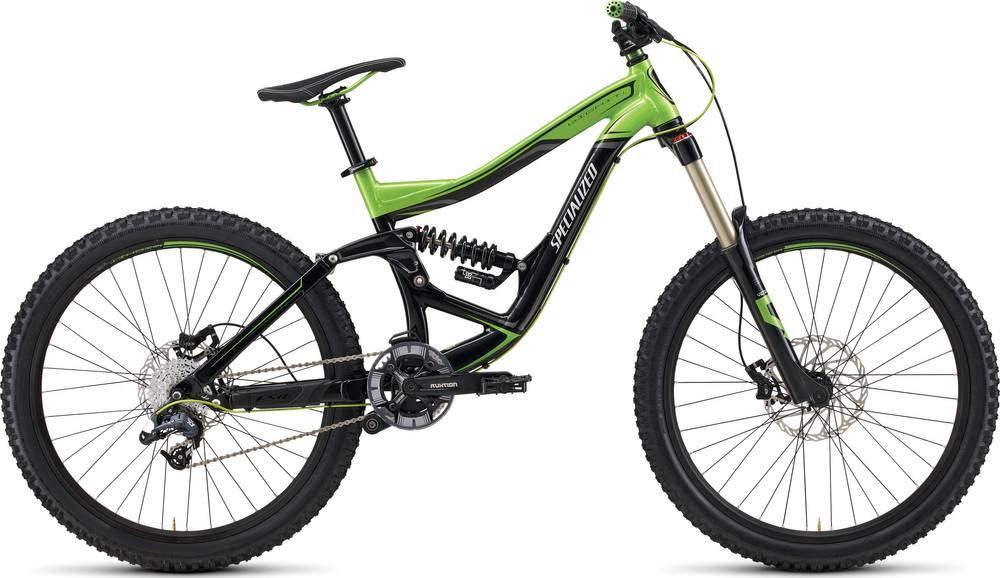

BigHit I is a Specialized Bighit model. There are 9 bikes that carry this model name. You can get a glimpse at all models from 2011, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
BigHit I components
Fork
The BigHit I comes factory-installed with the X Fusion fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The BigHit I 2011 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
