Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 110mm -
Travel Rear 110mm -
Fork SunTour XCR
-
Groupset Deore, SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 hydroformed tubing, 29"" geometry, tapered headtube, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
Suspension Fork
Suntour XCR 29, coil spring, tapered alloy steerer, lockout and reb adj. S: soft, M: standard, L/XL: hard, 110mm travel
Rear Shock
X-Fusion O2 RL, air spring, and reb adj. 197x48mm
Drivetrain
Rear Derailleur
Shimano Deore Shadow M592, 9-speed, SGS long cage
Front Derailleur
Shimano SLX M660, E-type for DMD, top-swing, bottom pull
Shift Levers
Shimano Alivio, 9-speed, trigger
Cassette
Shimano HG-20, 9-speed, 11-34
Crank
Shimano Alivio, Octalink spline, replaceable rings, S: 170mm, Others: 175mm
Bottom Bracket
Shimano BB-ES25, Octalink spline, cartridge bearings, 73mm shell
Chain
KMC X9, 9-speed, nickel plate, reusable Missing Link
Wheels
Front Hub
Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearings, QR, 32h
Rear Hub
Specialized disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
Rims
Specialized, alloy disc, 24mm wide, 32h
Spokes
Stainless, 2.0mm
Tires
Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60TPI
Brakes
Brakes
Tektro Draco 2, ceramic pads, Light Wave rotor, S/M: 180mm, Others: 200mm rotor
Brake Levers
Tektro Draco 2, hydraulic disc
Cockpit
Stem
Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 31.8mm clamp
Handlebar
Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, non-locking
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Rival, 143mm width
Seatpost
Specialized 6061 alloy, 2-bolt micro-adjust setback, 30.9mm, S/M:350mm, others:400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 585 mm | 594 mm | 618 mm | 641 mm |
| Reach | 394 mm | 422 mm | 439 mm | 460 mm |
| Top Tube Length | 549 mm | 581 mm | 606 mm | 636 mm |
| Seat Tube Angle | 75 ° | 74.8 ° | 74.5 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1094 mm | 1125 mm | 1150 mm | 1180 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 739 mm | 749 mm | 752 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

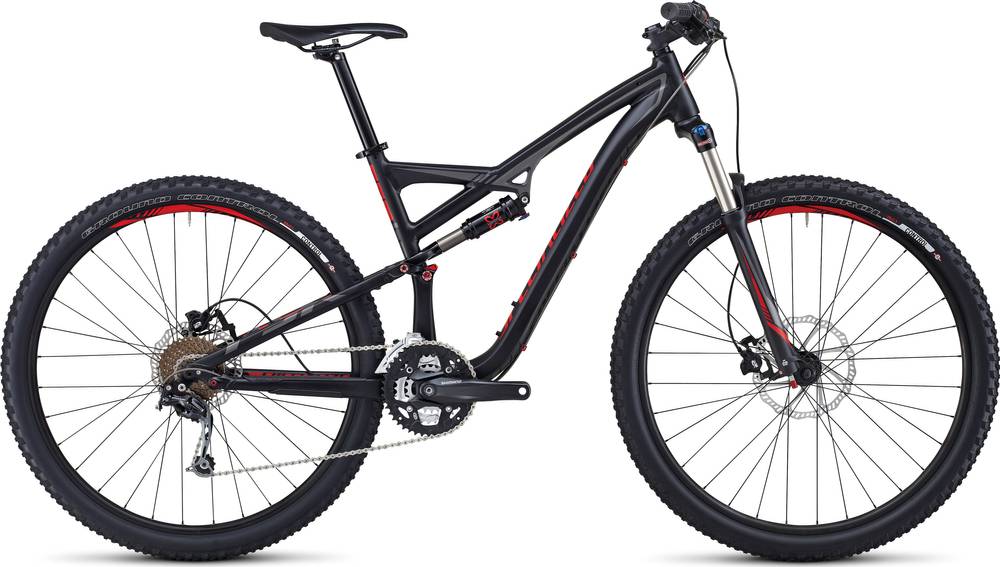

Camber 29 completes the Specialized Camber model. Specialized released 60 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Specialized Camber 29 2014 bike is equipped with the SunTour XCR fork, and has 110mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Camber 29 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The shock that’s installed on this bike is X-Fusion O2 RL, with a travel distance of 110mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Camber 29 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Camber 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
