Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Pike RC
-
Groupset X01, SRAM -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, 29"" EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm travel
Suspension Fork
RockShox Pike RC 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, 120mm travel
Rear Shock
Custom FOX Float CTD Factory w/ AUTOSAG, custom EVO tune, Kashima coating, Climb, Trail, Descend settings w/ Trail and rebound adjust, 197x51mm
Drivetrain
Rear Derailleur
SRAM X01, 11-speed, carbon cage
Shift Levers
SRAM X01, 11-speed, trigger
Cassette
SRAM XG 1195, 11-speed, 10-42
Crank
Custom SRAM S-2200, carbon, PF30 spindle, 30T, 94mm BCD spider
Bottom Bracket
SRAM, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM, 11-speed
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Roval Traverse, 15mm thru-axle end caps, 24h
Rear Hub
Roval Traverse 142+, XX1 driver body, 12mm thru-axle, 28h
Rims
Roval Traverse Fattie 29, alloy disc, 29mm wide, 24/28h
Spokes
DT Swiss Revolution
Tires
Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3""
Brakes
Brakes
Shimano XT BR-M785, hydraulic disc, Ice Tech pads, S/M: 180mm rotor, Others: 200mm
Brake Levers
Shimano XT BL-M785, hydraulic, alloy lever
Cockpit
Stem
Specialized, forged alloy, 6-degree rise
Handlebar
Specialized XC, mini rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust SRL, 30.9mm, 100mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.47 mm | 1.47 mm | 1.45 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 593 mm | 603 mm | 627 mm | 651 mm |
| Reach | 381 mm | 410 mm | 426 mm | 448 mm |
| Top Tube Length | 554 mm | 586 mm | 611 mm | 639 mm |
| Seat Tube Angle | 73.8 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 394 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 150 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1098 mm | 1129 mm | 1155 mm | 1184 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 730 mm | 735 mm | 739 mm | 750 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

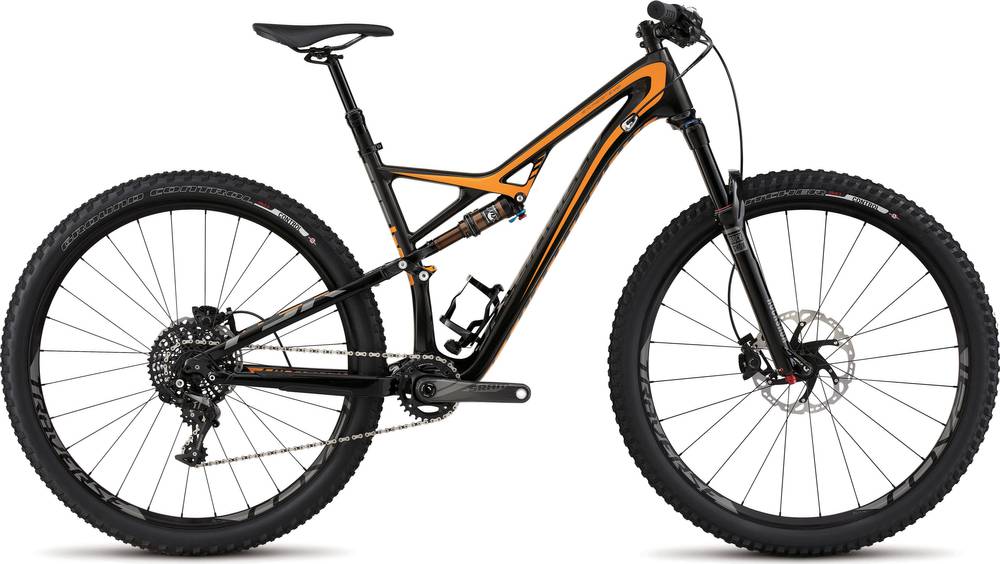

Camber Expert Carbon EVO 29 completes the Specialized Camber model. Specialized released 60 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Camber Expert Carbon EVO 29 components
Fork
This bike has the RockShox Pike RC fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this bike has the Custom FOX Float CTD Factory w/ AUTOSAG model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Specialized Camber Expert Carbon EVO 29 2015, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Camber Expert Carbon EVO 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Camber Expert Carbon EVO 29. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
