Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Globe A1 Premium Aluminum, ground control geometry, 26"" low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
Suspension Fork
Globe straight-blade steel fork
Drivetrain
Cassette
See rear hub
Crank
Sugino EX-1 aluminum, w/ alloy chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC, Internal 8-speed, 1/2x1/8""
Pedals
Composite platform body, sealed loose ball bearings
Wheels
Front Hub
Forged alloy w/ steel nutted axle, dual lock nuts
Rear Hub
Forged alloy, single speed
Rims
Alex Z-1000, 26"", single wall, 36h
Spokes
2mm (14g) stainless
Tires
Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
Alloy 4-finger, kraton lever pad, for twist shifter
Cockpit
Stem
Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
Handlebar
Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
Headset
1-1/8"" threaded, sealed loose ball bearings
Seat
Saddle
Comfort Plus with dual density foam and springs for extra comfort
Seatpost
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Front Center | 642 mm | 656 mm |
| Rake | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm |
| Top Tube Length | 614 mm | 629 mm |
| Seat Tube Angle | 67 ° | 67.5 ° |
| Seat Tube Length | 370 mm | 425 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 200 mm | 220 mm |
| Chainstay Length | 504 mm | 504 mm |
| Wheelbase | 1139 mm | 1154 mm |
| Bottom Bracket Drop | 59 mm | 59 mm |
| Standover Height | 429 mm | 430 mm |
| Wheels | 26" | 26" |

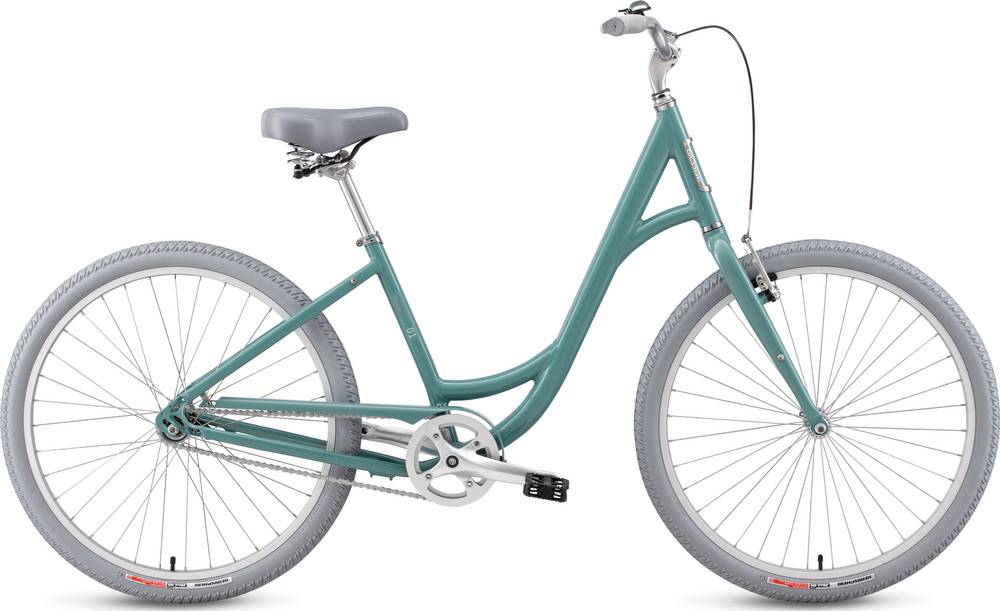

Model Overview
Carmel 1 Low Entry belongs to the Specialized Carmel model. Specialized released 16 bikes variations of this model so far. Take a sneak peek at all Specialized Carmel bikes models from 2010, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Comfort bikes
According to our math, the average price for a trustworthy Comfort bike is 360$. However, even though the average price of a Comfort bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Specialized Carmel 1 Low Entry 2010, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Carmel 1 Low Entry has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
