Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Globe A1 Premium Aluminum, ground control geometry, 26"" low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
Suspension Fork
SR Suntour NEX-4110-26, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
Drivetrain
Rear Derailleur
Shimano Altus, 7-speed
Front Derailleur
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
Shift Levers
Shimano Revo, 7-speed, twist shifter
Cassette
Shimano MF-TZ31-7, 7-speed, 13-34t Mega Range
Crank
Shimano FCM-151 w/ chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC Z7 w/ reuseable Missing Link
Pedals
Comfort pedal, composite body w/rubber top, sealed loose ball bearings
Wheels
Front Hub
Forged alloy, double sealed, ground race, QR
Rear Hub
Forged alloy, double sealed, ground race, freewheel type, QR
Rims
Alex Z-1000, 26"", single wall, 36h
Spokes
2mm (14g) stainless
Tires
Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
Alloy 4-finger, kraton lever pad, for twist shifter
Cockpit
Stem
Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
Handlebar
Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
Headset
1-1/8"" threaded, sealed loose ball bearings
Seat
Saddle
Comfort Plus with dual density foam and springs for extra comfort
Seatpost
Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Front Center | 630 mm | 650 |
| Rake | 40 mm | 40 mm |
| Trail | 89 mm | 89 mm |
| Top Tube Length | 614 mm | 629 mm |
| Seat Tube Angle | 67 ° | 67.5 ° |
| Seat Tube Length | 370 mm | 425 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 180 mm |
| Chainstay Length | 504 mm | 504 mm |
| Wheelbase | 1127 mm | 1148 mm |
| Bottom Bracket Drop | 59 mm | 59 mm |
| Standover Height | 442 mm | 443 mm |
| Wheels | 26" | 26" |
About this model

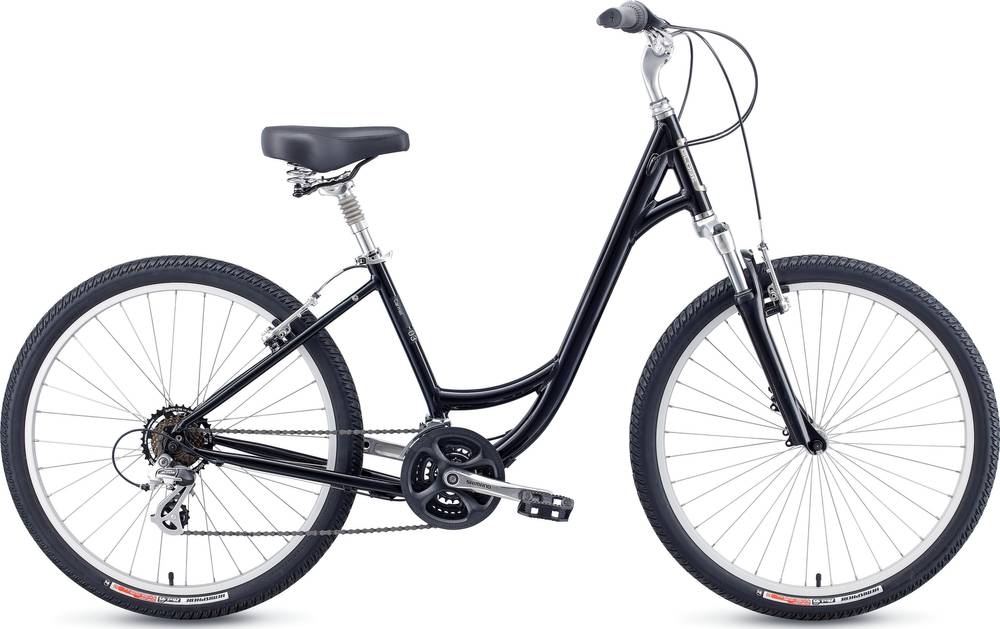

Carmel 3 Low Entry is part of the Specialized Carmel model. Specialized launched 16 bikes of this model so far. Take a sneak peek at all Specialized Carmel bikes models from 2010, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Comfort bikes
If you want an acceptable Comfort bike you should know that the average price is 360$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Carmel 3 Low Entry has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the Carmel 3 Low Entry model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Carmel 3 Low Entry is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
