Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Globe A1 Premium Aluminum, ground control geometry, 700c low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
Suspension Fork
SR Suntour NEX-4110V2, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
Drivetrain
Rear Derailleur
Shimano Altus, 7-speed
Front Derailleur
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
Shift Levers
Shimano Revo, 7-speed, twist shifter
Cassette
Shimano MF-TZ31-7, 7-speed, 13-34t Mega Range
Crank
Shimano FCM-151 w/ chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC Z7 w/ reuseable Missing Link
Pedals
Comfort pedal, composite body w/rubber top, sealed loose ball bearings
Wheels
Front Hub
Forged alloy, double sealed, ground race, QR
Rear Hub
Forged alloy, double sealed, ground race, freewheel type, QR
Rims
700c, single wall, 32h
Spokes
2mm (14g) stainless
Tires
Specialized Hemisphere, 700x38c, 60TPI, wire bead w/ Flak Jacket protection
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
Alloy 4-finger, kraton lever pad, for twist shifter
Cockpit
Stem
Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
Handlebar
Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
Headset
1-1/8"" threaded, sealed loose ball bearings
Seat
Saddle
Comfort Plus with dual density foam and springs for extra comfort
Seatpost
Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Front Center | 641 mm | 644 mm | 664 mm | 679 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 89 mm | 89 mm | 93 mm | 93 mm |
| Top Tube Length | 604 mm | 619 mm | 634 mm | 649 mm |
| Seat Tube Angle | 70 ° | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 370 mm | 425 mm | 480 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1136 mm | 1138 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 725 mm | 766 mm | 809 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

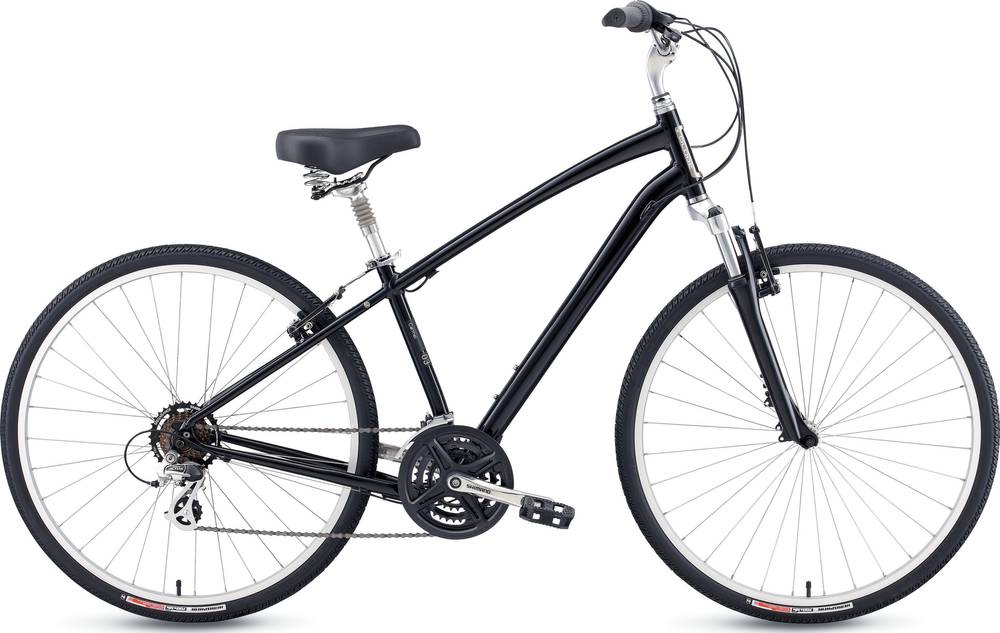

Carmel 700 3 belongs to the Specialized Carmel model. 16 bikes variations carry this model name so far. Take a sneak peek at all Specialized Carmel bikes models from 2010, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Comfort bikes
If you want an acceptable Comfort bike you should know that the average price is 360$. However, you could also get a good Comfort bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Carmel 700 3 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the Carmel 700 3 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Carmel 700 3 has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Carmel 700 3 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
