Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Globe A1 Premium Aluminum, ground control geometry, 700c low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
Suspension Fork
SR Suntour NEX-4110V2, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
Drivetrain
Shift Levers
Shimano Nexus, 3-speed
Cassette
Shimano 3-speed single cog, 18t
Crank
Sugino EX-1 aluminum, w/ alloy chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC 1/2x1/8""
Pedals
Comfort pedal, composite body w/rubber top, sealed loose ball bearings
Wheels
Front Hub
Forged alloy, double sealed, ground race, QR
Rear Hub
Shimano internal 3-speed
Rims
700c, single wall, 32h
Spokes
2mm (14g) stainless
Tires
Specialized Hemisphere, 700x38c, 60TPI, wire bead w/ Flak Jacket protection
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
Alloy 4-finger, kraton lever pad, for twist shifter
Cockpit
Stem
Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
Handlebar
Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
Headset
1-1/8"" threaded, sealed loose ball bearings
Seat
Saddle
Comfort Plus with dual density foam and springs for extra comfort
Seatpost
Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Front Center | 641 mm | 644 mm | 664 mm | 679 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 89 mm | 89 mm | 93 mm | 93 mm |
| Top Tube Length | 604 mm | 619 mm | 634 mm | 649 mm |
| Seat Tube Angle | 70 ° | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 370 mm | 425 mm | 480 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1136 mm | 1138 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 725 mm | 766 mm | 809 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

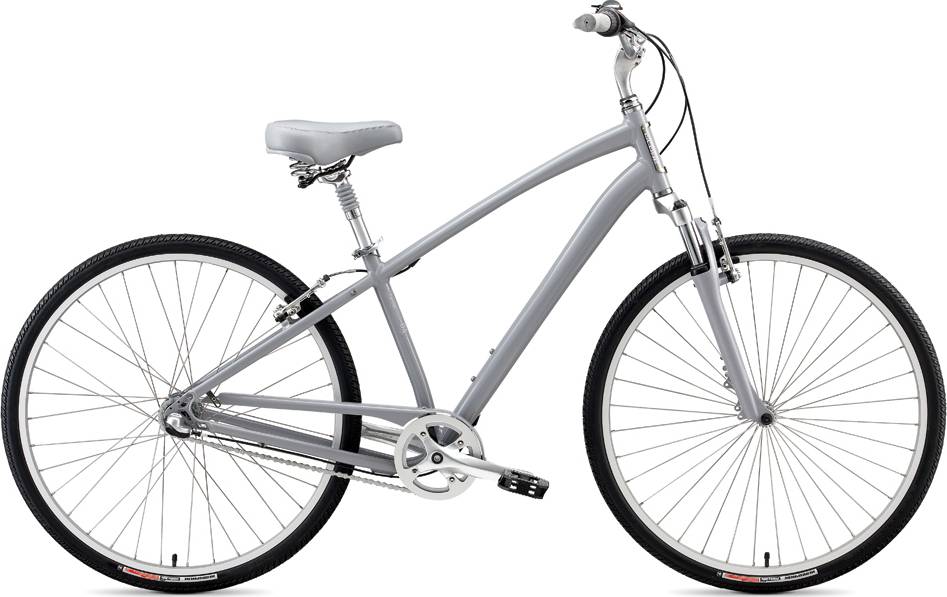

Carmel 700 4 is part of the Specialized Carmel model. Specialized launched 16 bikes of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Comfort bikes
According to our calculations, the average cost of a Comfort bike that is reliable is 360$. However, this doesn’t mean that if you spend less money on a Comfort bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The Carmel 700 4 2010 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Carmel 700 4 has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
