Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Globe A1 Premium Aluminum, ground control geometry, 700c low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
Suspension Fork
SR Suntour NEX-4110V2, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
Drivetrain
Shift Levers
Shimano Nexus, 3-speed
Cassette
Shimano 3-speed single cog, 18t
Crank
Sugino EX-1 aluminum, w/ alloy chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC 1/2x1/8""
Pedals
Comfort pedal, composite body w/rubber top, sealed loose ball bearings
Wheels
Front Hub
Forged alloy, double sealed, ground race, QR
Rear Hub
Shimano internal 3-speed
Rims
700c, single wall, 32h
Spokes
2mm (14g) stainless
Tires
Specialized Hemisphere, 700x38c, 60TPI, wire bead w/ Flak Jacket protection
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
Alloy 4-finger, kraton lever pad, for twist shifter
Cockpit
Stem
Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
Handlebar
Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
Headset
1-1/8"" threaded, sealed loose ball bearings
Seat
Saddle
Comfort Plus with dual density foam and springs for extra comfort
Seatpost
Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Front Center | 641 mm | 644 mm |
| Rake | 40 mm | 40 mm |
| Trail | 89 mm | 89 mm |
| Top Tube Length | 604 mm | 619 mm |
| Seat Tube Angle | 70 ° | 69 ° |
| Seat Tube Length | 370 mm | 425 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 160 mm |
| Chainstay Length | 504 mm | 504 mm |
| Wheelbase | 1136 mm | 1138 mm |
| Bottom Bracket Drop | 73 mm | 73 mm |
| Standover Height | 461 mm | 459 mm |
| Wheels | 700 | 700 |
About this model

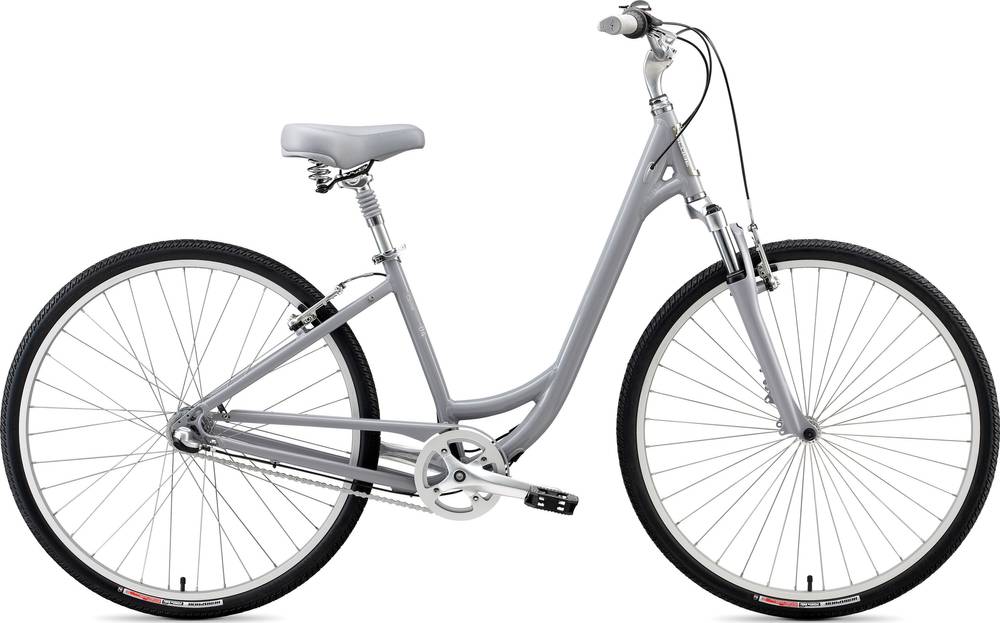

Carmel 700 4 Low Entry completes the Specialized Carmel model. 16 bikes variations carry this model name so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Comfort bikes
If you want to purchase a solid Comfort bike, it is important to know that the average cost is 360$. However, even though the average price of a Comfort bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Specialized Carmel 700 4 Low Entry 2010 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Carmel 700 4 Low Entry has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Carmel 700 4 Low Entry bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Carmel 700 4 Low Entry comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
