Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Suspension Fork
RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Drivetrain
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Crank
Stout Pro, 2-Piece Forged Alloy, Direct Mount chainring
Bottom Bracket
BSA for 24mm spindle
Chain
KMC X12, 12-speed w/ Missing Link™
Wheels
Front Hub
Shimano MT410-B, Centerlock 28h, 15x110 Boost
Rear Hub
Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
Rims
Alloy, Offset Design, Tubeless Ready, 25mm internal width, 28h
Spokes
Stainless, 14g
Tires
Front: Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3", Rear: Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Brakes
Brakes
Shimano M4100, 2-piston, 180/160mm
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebar
Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.41 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Stack | 592 mm | 606 mm | 606 mm | 620 mm | 634 mm |
| Reach | 386 mm | 406 mm | 431 mm | 456 mm | 481 mm |
| Top Tube Length | 556 mm | 579 mm | 604 mm | 633 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1071 mm | 1100 mm | 1125 mm | 1155 mm | 1186 mm |
| Bottom Bracket Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 733 mm | 763 mm | 793 mm | 817 mm | 848 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

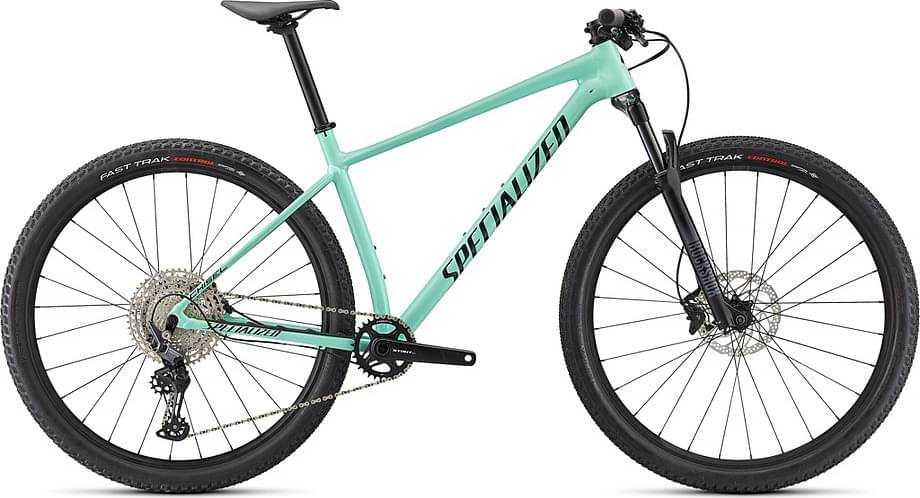

Chisel is a Specialized Chisel model. Specialized launched 22 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Specialized Chisel 2021 is the cheapest bike model and costs 1600$. Specialized Chisel Comp 2021 is the most expensive one and costs 1900$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1600$. If we compare this with the average Crosscountry bike cost we notice that the price is 19.06% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Chisel bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
