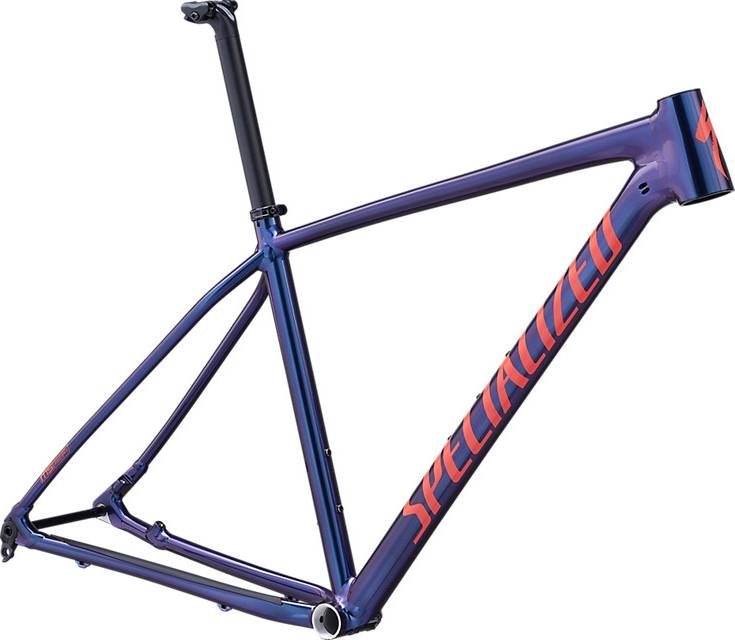

Specialized Chisel Frame 2019
2019 Mountain
Estimate price |
1,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Seat
Seatpost
Specialized, alloy, single-bolt, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.447 mm | 1.404 mm | 1.37 mm |
| Bottom Bracket Height | 312.5 mm | 312.5 mm | 312.5 mm | 312.5 mm |
| Front Center | 650 | 676 mm | 704 mm | 730 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 595 mm | 605 mm | 619 mm | 633 mm |
| Reach | 395 mm | 418 mm | 441 mm | 462 mm |
| Top Tube Length | 567 mm | 594 mm | 622 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1073 mm | 1100 mm | 1128 mm | 1154 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 760 mm | 790 mm | 814 mm | 845 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Chisel Frame is part of the Specialized Chisel model. There are 22 frames that carry this model name. Take a sneak peek at all Specialized Chisel frames models from 2019, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry frames average price
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Specialized released this model in 2019, its price was 1000$. If we compare this with the average Crosscountry frame cost we notice that the price is 68.9% smaller.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Chisel Frame components
Sizes
Chisel Frame comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
