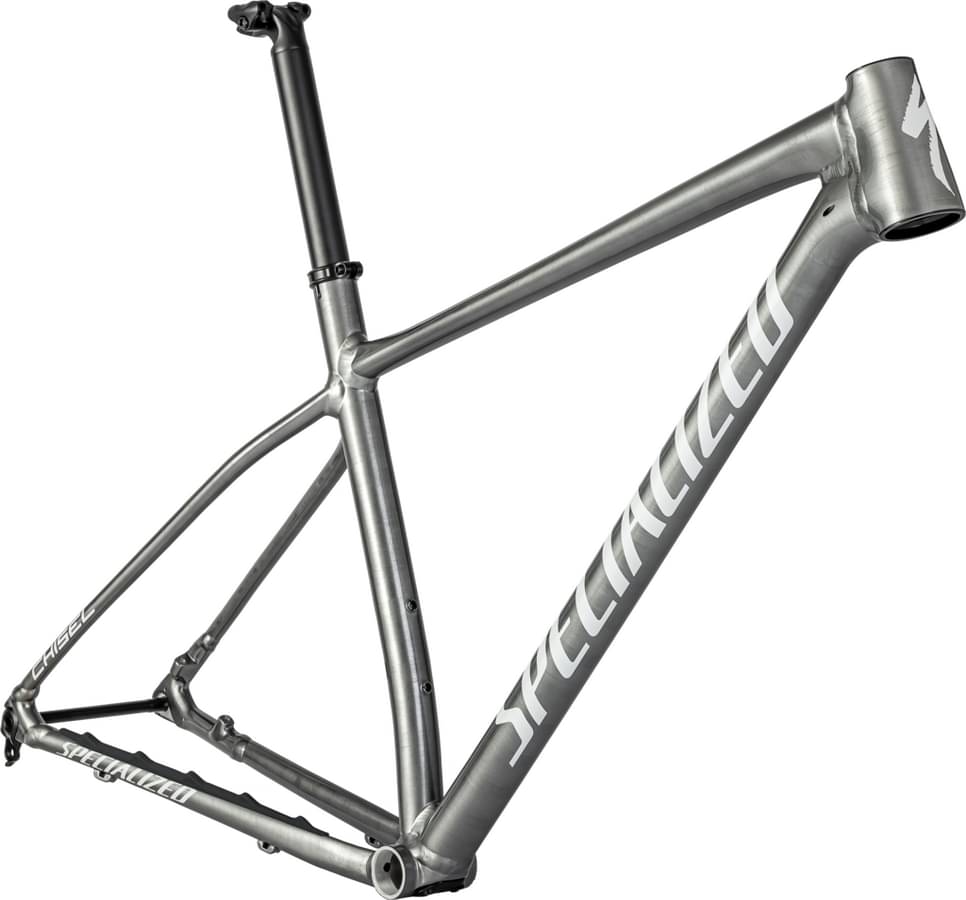

Specialized Chisel Frameset 2022
2022 Mountain
Estimate price |
1,319$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame aluminium -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Seat
Seatpost
Specialized Alloy, Single Bolt, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.41 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Stack | 592 mm | 606 mm | 606 mm | 620 mm | 634 mm |
| Reach | 386 mm | 406 mm | 431 mm | 456 mm | 481 mm |
| Top Tube Length | 556 mm | 579 mm | 604 mm | 633 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1071 mm | 1100 mm | 1125 mm | 1155 mm | 1186 mm |
| Bottom Bracket Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 733 mm | 763 mm | 793 mm | 817 mm | 848 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Chisel Frameset belongs to the Specialized Chisel model. Specialized launched 22 frames of this model so far. Take a sneak peek at all Specialized Chisel frames models from 2022, by clicking here.
Model range prices
Specialized Chisel Frameset 2022 is the cheapest frame model and costs 1221$. Specialized Chisel LTD Frameset 2022 is the most expensive one and costs 1500$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2022 and its price was 1221$. In conclusion, this frame price is 38.33% smaller than the price of the average Crosscountry frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
