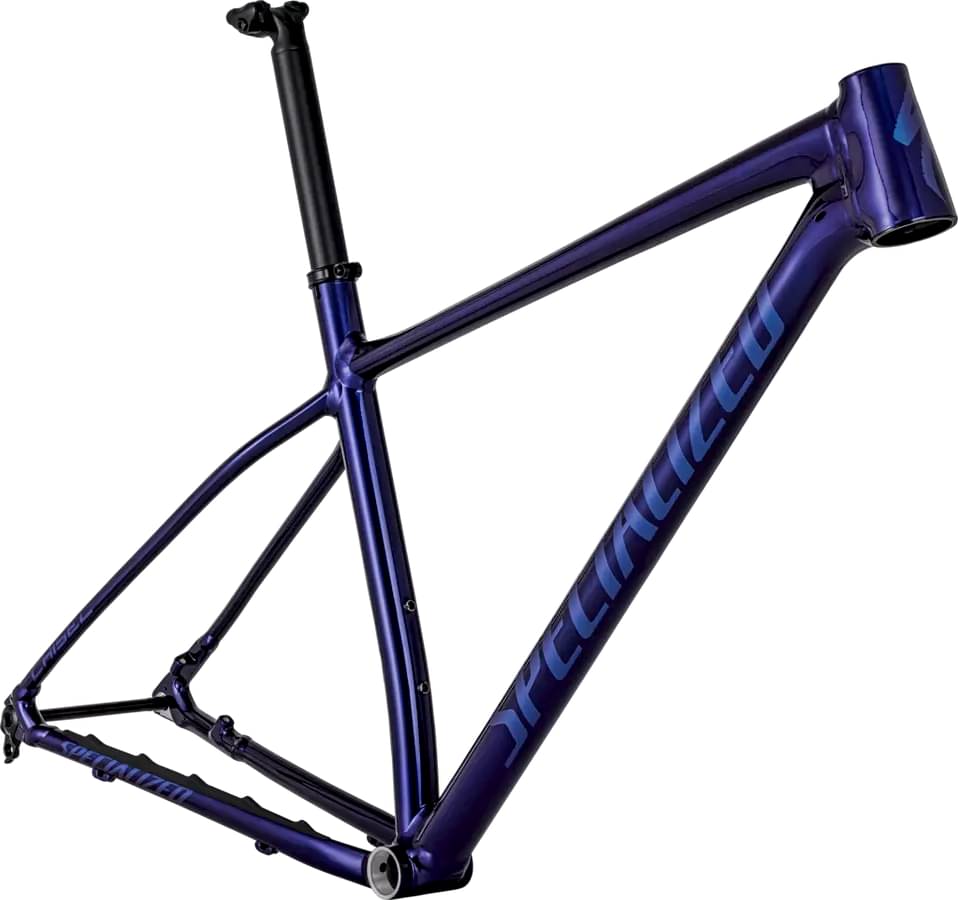

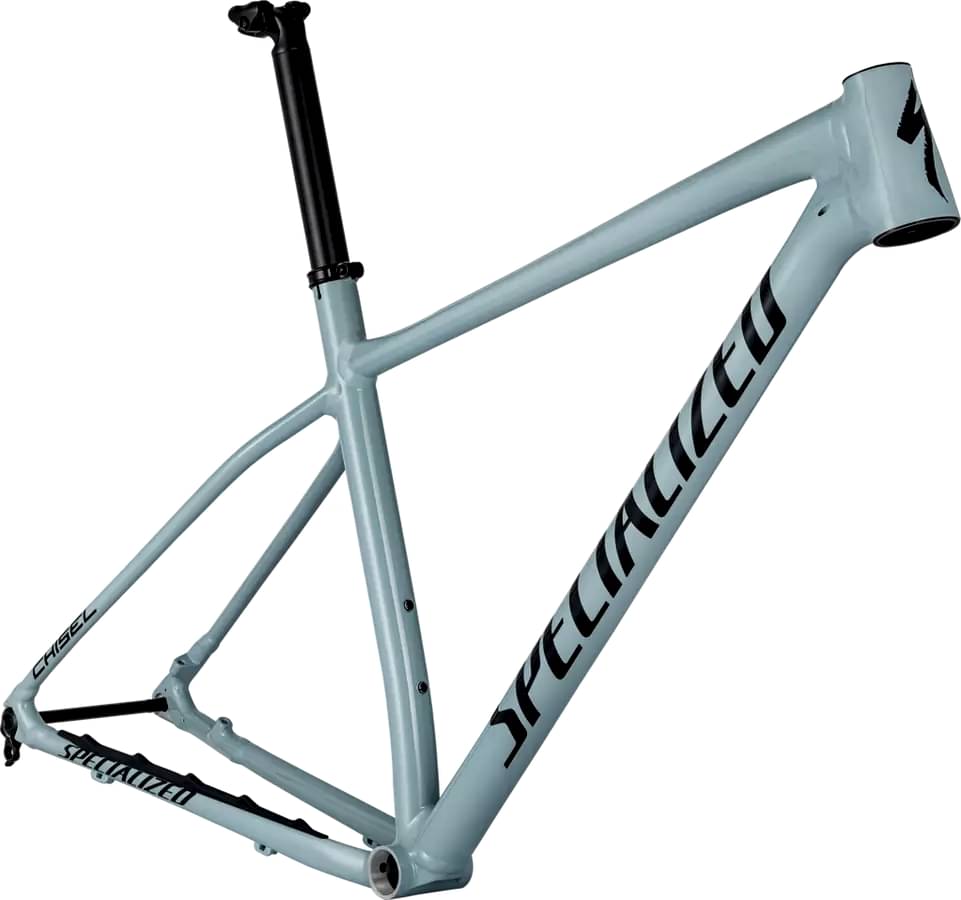

Specialized Chisel LTD Frameset 2023
2023 Mountain
Estimate price |
1,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 29"
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Seat
Seatpost
Specialized Alloy, Single Bolt, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.41 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Stack | 592 mm | 606 mm | 606 mm | 620 mm | 634 mm |
| Reach | 386 mm | 406 mm | 431 mm | 456 mm | 481 mm |
| Top Tube Length | 556 mm | 579 mm | 604 mm | 633 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1071 mm | 1100 mm | 1125 mm | 1155 mm | 1186 mm |
| Bottom Bracket Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 733 mm | 763 mm | 793 mm | 817 mm | 848 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Chisel LTD Frameset completes the Specialized Chisel model. There are 22 frames that carry this model name. You can easily view all of the Specialized Chisel frames models from 2023, here.
Model range prices
Specialized Chisel Frameset 2023 is the most economical model, with a starting price of 1100$. Specialized Chisel LTD Frameset 2023 on the other hand costs 1500$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Specialized Chisel LTD Frameset price was 1500$. Doing a quick comparison, we notice that Chisel LTD Frameset price is 12.6% lower than the average cost of a Crosscountry frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Chisel LTD Frameset components
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
