Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crosstrail A1 Premium Aluminum, formed TT, ORE DT, forged dropouts w/ replaceable hanger, integrated kickstand mount, chainstay disc mount
Suspension Fork
SR SunTour SF10-NVX-700C, alloy lower, 75mm travel, 28mm Hi-Ten stanchions, coil spring
Drivetrain
Rear Derailleur
Shimano Altus, 7-speed
Front Derailleur
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
Shift Levers
Shimano, ST-EF-50, 7-Speed, EZ fire plus
Cassette
Shimano MF-TZ31-7, 7-speed, 13-34t Mega Range
Crank
SR-Suntour 7-speed Crank Set, square, fully riveted plastic spider, w/ chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC Z7 w/ reuseable Missing Link
Pedals
Composite platform body, sealed loose ball bearings
Wheels
Front Hub
Forged alloy, double sealed, ground race, QR
Rear Hub
Forged alloy, double sealed, ground race, freewheel type, QR
Rims
Alex Z-1000, 26"", single wall, 36h
Spokes
2mm (14g) stainless
Tires
Specialized Borough XC Sport 700x45c, 60TPI, wire bead
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
Shimano EF-50 (integrated w/ shifter)
Cockpit
Stem
Melt Forged alloy, 2-bolt, 25.4mm, 15 degree rise
Handlebar
Hi-Ten riser bar, 25.4mm, 32mm rise, 620mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized Enduro, closed end, 130mm
Headset
1-1/8"" threadless, sealed loose ball bearings
Seat
Saddle
Specialized XC, Body Geometry, 143mm width, front and rear bumpers
Seatpost
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Front Center | 648 mm | 658 mm | 673 mm | 678 mm | 681 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 91 mm | 88 mm | 88 mm | 85 mm | 85 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 618 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 72.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1093 mm | 1103 mm | 1119 mm | 1123 mm | 1126 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 739 mm | 776 mm | 810 mm | 842 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

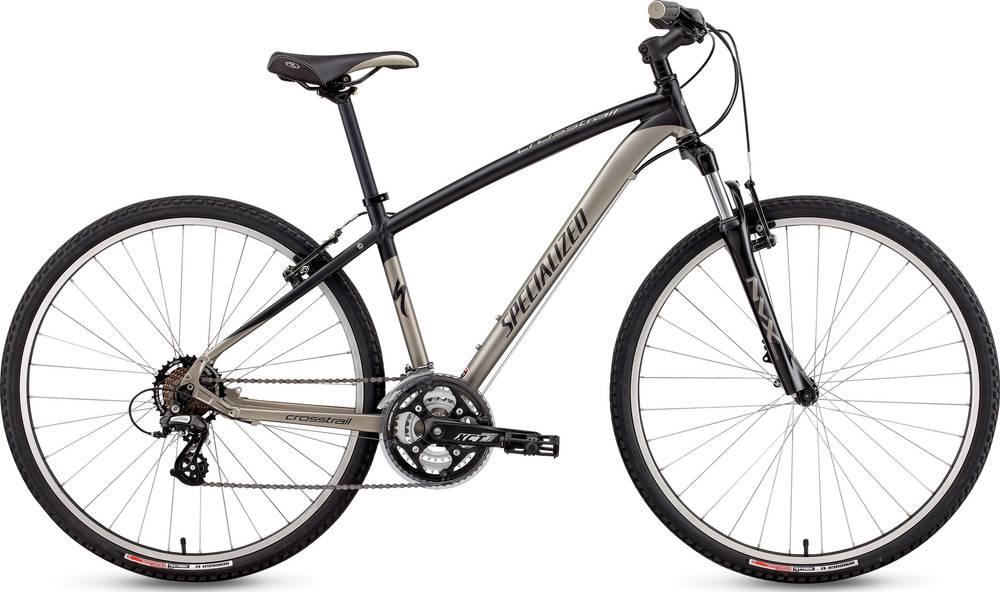

Model Overview
CrossTrail is part of the Specialized Crosstrail model. 50 bikes variations carry this model name so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the CrossTrail bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized CrossTrail is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
