Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork SunTour
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, double-butted w/ fender/rack braze-ons, forged dropouts, kickstand mount
Suspension Fork
SR Suntour NEXi Coil, aluminum lower, custom integrated fork crown, 60mm travel
Drivetrain
Rear Derailleur
Shimano Altus, 8-speed
Front Derailleur
Shimano FDM-191
Shift Levers
Shimano SL-M310, Rapidfire
Cassette
Shimano, 8-speed, 11-32
Crank
SR Suntour XCT, 8-speed, square taper spindle, replaceable outer ring, w/ chainguard
Bottom Bracket
Cartridge bearings, square spindle, capless bolts
Chain
KMC X8
Pedals
Composite plastic body, loose ball, w/ reflectors
Wheels
Front Hub
Disc, double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR, round disc mount
Rear Hub
Disc, double-sealed, loose ball, ground race, dual-lock nuts w/ 19mm contact side, QR
Rims
Alloy double-wall, 32h
Tires
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
Brakes
Brakes
Tektro Novela, mechanical disc, dual pad angle adj. 160mm rotor
Brake Levers
Tektro, mechanical lever
Cockpit
Stem
Alloy, 4-bolt, 10-degree rise, 25.4mm clamp
Handlebar
Specialized riser bar, alloy, 8-degree backsweep, 25mm rise, 25.4mm
Grips
Specialized Body Geometry XCT, dual compound, lock-on
Headset
1-1/8"" FSA Ahead, semi-integrated, 8mm cone spacer
Seat
Saddle
Body Geometry Targa Sport, steel rails, 155mm
Seatpost
Alloy, 2-bolt, 12.5mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Front Center | 626 mm | 636 mm | 652 mm | 668 mm | 678 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Top Tube Length | 569 mm | 579 mm | 594 mm | 609 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1058 mm | 1068 mm | 1084 mm | 1100 mm | 1111 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 739 mm | 775 mm | 803 mm | 836 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

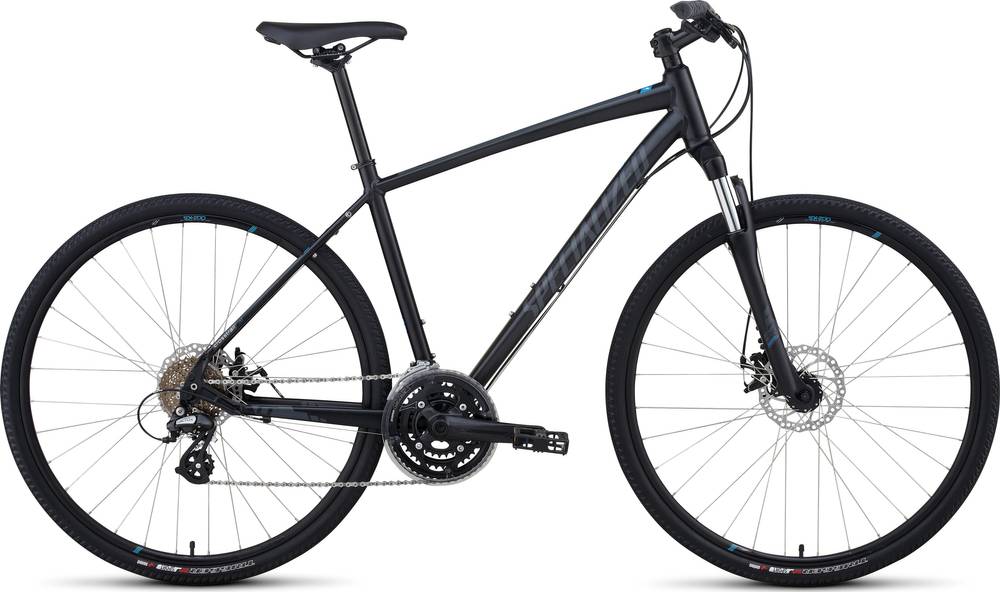

Crosstrail Disc is part of the Specialized Crosstrail model. Specialized released 50 bikes variations of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosstrail Disc components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 60mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Crosstrail Disc model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Crosstrail Disc has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
