Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, double-butted w/ fender/rack braze-ons, forged dropouts, kickstand mount
Suspension Fork
Custom SR Suntour NEX, w/ custom SBC Multi-Circuit Damping, alloy lowers, custom coil spring weights, Hi-Ten 28mm stanchions, 1-1/8"" steerer, hydraulic lockout w/ preload adjust, disc mount, 63mm travel
Drivetrain
Rear Derailleur
Shimano Altus, 8-speed
Front Derailleur
Shimano FD-M191, top swing, dual-pull
Shift Levers
Shimano Acera, 8-speed
Cassette
Shimano, 8-speed, 12-32
Crank
Custom Samox, forged alloy, w/ chainguard
Bottom Bracket
Square taper, cartridge bearings
Chain
KMC X8, 8-speed, reusable Missing Link
Pedals
Composite platform, w/ reflectors, 9/16""
Wheels
Front Hub
Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h
Rear Hub
Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
Rims
700c disc, alloy double-wall, pin joint, 32h
Spokes
Stainless, 14g
Tires
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
Brakes
Brakes
Tektro Aries, mechanical disc, organic pads
Brake Levers
Tektro SPL-01, die-cast alloy, trigger shifter
Cockpit
Stem
Specialized forged alloy, 4-bolt, 10-degree rise
Handlebar
Specialized riser, alloy, 8-degree backsweep, 4-degree upsweep, 25mm rise, 25.4mm
Grips
Specialized Body Geometry XCT, lock-on
Headset
Ahead, semi-integrated, loose ball, 8mm cone spacer
Seat
Saddle
Body Geometry Targa Sport, steel rails, 155mm
Seatpost
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Front Center | 625 mm | 635 mm | 651 mm | 666 mm | 677 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Top Tube Length | 569 mm | 579 mm | 594 mm | 609 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1057 mm | 1067 mm | 1083 mm | 1099 mm | 1110 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 731 mm | 766 mm | 794 mm | 827 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

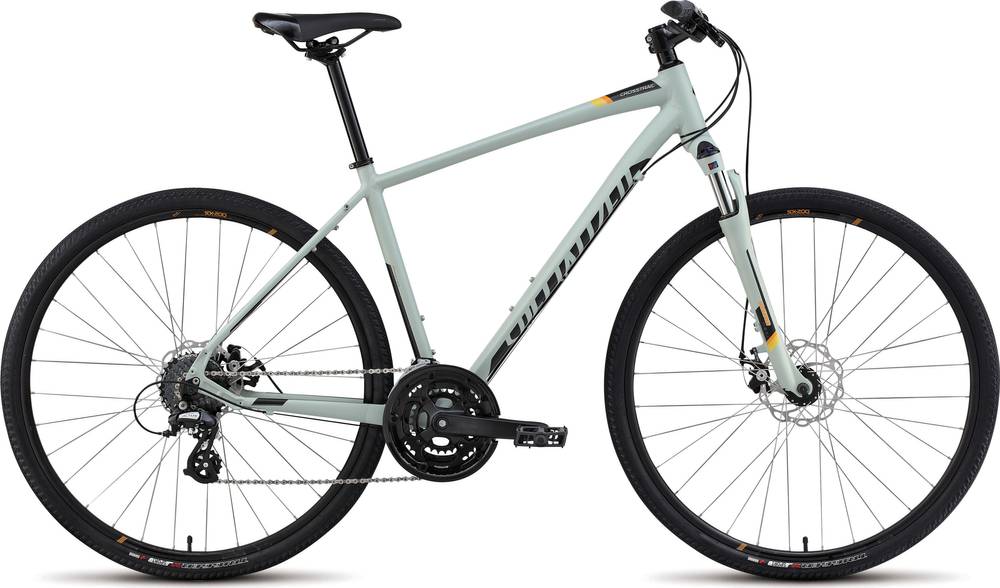

Crosstrail Disc belongs to the Specialized Crosstrail model. There are 50 bikes that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosstrail Disc components
Fork
The Crosstrail Disc comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Crosstrail Disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Crosstrail Disc has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
