Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 SL Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, internal cable routing, flat mount disc, rack & Plug + Play mounts
Drivetrain
Rear Derailleur
Shimano Altus, 8-speed
Front Derailleur
Shimano Tourney, top swing, for 7-/8-speed 31.8mm clamp
Shift Levers
Shimano Altus, 8-speed
Cassette
Sunrace, 8-speed, 11-34t
Crank
Stout, forged alloy w/chainguard, 48/38/28T w/chainguard
Bottom Bracket
BSA, square taper, cartridge bearings
Chain
KMC X8, 8-speed w/reusable MissingLink
Pedals
Specialized Fitness platform
Wheels
Front Hub
Specialized disc, double-sealed, loose ball bearings, 9mm QR
Rear Hub
Specialized disc, loose ball bearings, for Shimano 8-/9-speed cassettes, 9mm QR
Rims
700c disc, 6061 aluminum double-wall
Spokes
Stainless, 14g
Tires
Trigger Sport Reflect, 700x38mm, 60TPI, wire bead
Brakes
Brakes
Tektro, hydraulic disc, post mount, organic pads, 160mm rotor
Cockpit
Stem
3D forged aluminum, 7-degree rise, 31.8mm clamp
Handlebar
Specialized, double-butted alloy, 9-degree backsweep, 31.8mm
Grips
Body Geometry Flow Set Control Grips, lock-on
Seat
Saddle
Canopy Sport, steel rails
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.528 mm | 1.529 mm | 1.521 mm |
| Front Center | 630 mm | 641 mm | 655 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 87 mm | 84 mm | 84 mm | 84 mm |
| Stack | 594 mm | 611 mm | 630 mm | 648 mm |
| Reach | 390 mm | 400 mm | 412 mm | 426 mm |
| Top Tube Length | 572 mm | 587 mm | 604 mm | 624 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1067 mm | 1078 mm | 1096 mm | 1117 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 740 mm | 776 mm | 813 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

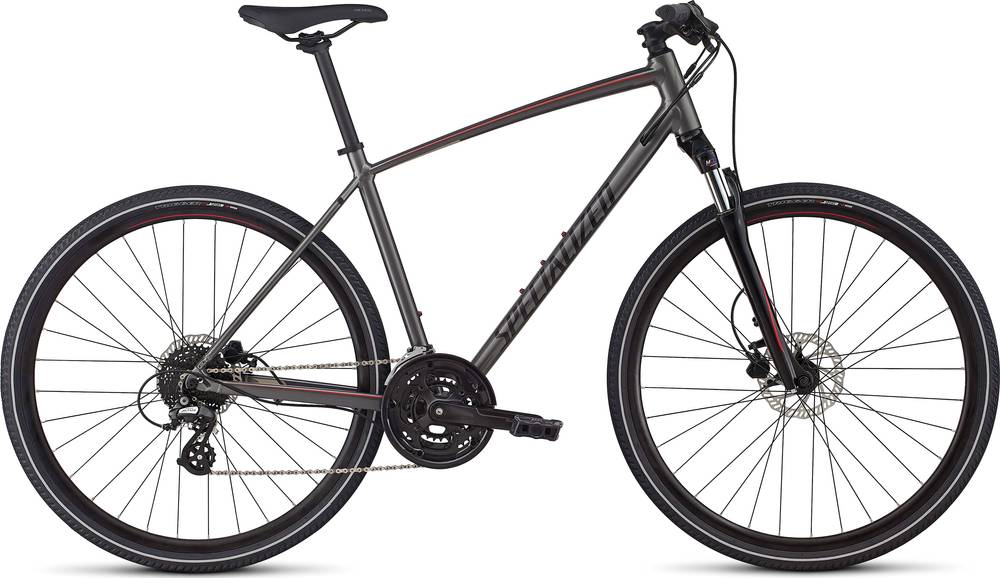

Crosstrail Disc is a Specialized Crosstrail model. Specialized released 50 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Wheels size
When leaving the production line, the Crosstrail Disc model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Crosstrail Disc has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
