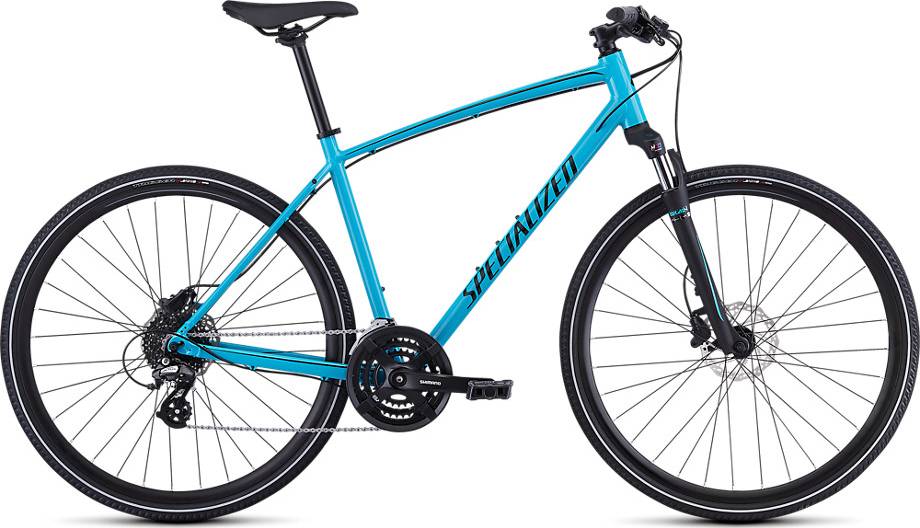

Specialized CrossTrail – Hydraulic Disc 2019
2019 Urban
Estimate price |
670$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 55mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, Fitness Geometry, butted tubing, Plug + Play rack/fender mounts
Suspension Fork
SR Suntour NEX w/ Specialized Fitness Brain technology, 1-1/8" steerer, QR, fender mounts, 55mm of travel
Drivetrain
Rear Derailleur
Shimano Altus, 8-speed
Front Derailleur
Shimano Tourney, 3-speed, top-swing
Shift Levers
Shimano Acera, 8-speed
Cassette
SunRace, 8-speed, 11-34t
Crank
Shimano Tourney, 3-piece, square-taper, 48/38/28T
Bottom Bracket
68mm, square taper, 124.5mm length
Chain
KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™
Pedals
Specialized Body Geometry Fitness, platform, plastic
Wheels
Front Hub
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h
Rear Hub
Alloy, 6-bolt disc, 8-/9-speed freehub, loose ball bearing, quick-release, 32h
Rims
700C disc, 6061 aluminum, double-wall
Spokes
Stainless, 14g
Tires
Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm
Brakes
Brakes
Promax Solve, hydraulic disc, post-mount, 160mm
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebar
Double-butted alloy, 9-degree backsweep, 31.8mm
Seat
Saddle
Specialized Canopy Sport, steel rails, 155mm
Seatpost
Alloy, 12mm offset, 2-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.503 mm | 1.505 mm | 1.507 mm | 1.502 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 628 mm | 638 mm | 657 mm | 678 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 84 mm | 81 mm | 81 mm | 81 mm |
| Stack | 586 mm | 602 mm | 621 mm | 640 mm |
| Reach | 390 mm | 400 mm | 412 mm | 426 mm |
| Top Tube Length | 569 mm | 584 mm | 602 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1065 mm | 1075 mm | 1094 mm | 1115 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 722 mm | 742 mm | 802 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CrossTrail – Hydraulic Disc is a Specialized Crosstrail model. 50 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Specialized CrossTrail – Mechanical Disc 2019 has a starting price of 525$. Specialized CrossTrail Elite 2019 on the other hand is the most expensive at 1200$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 670$. In conclusion, this bike price is 2.13% more expensive than the price of the average Fitness bike.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 55mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the CrossTrail – Hydraulic Disc model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized CrossTrail – Hydraulic Disc is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Specialized CrossTrail – Hydraulic Disc bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
