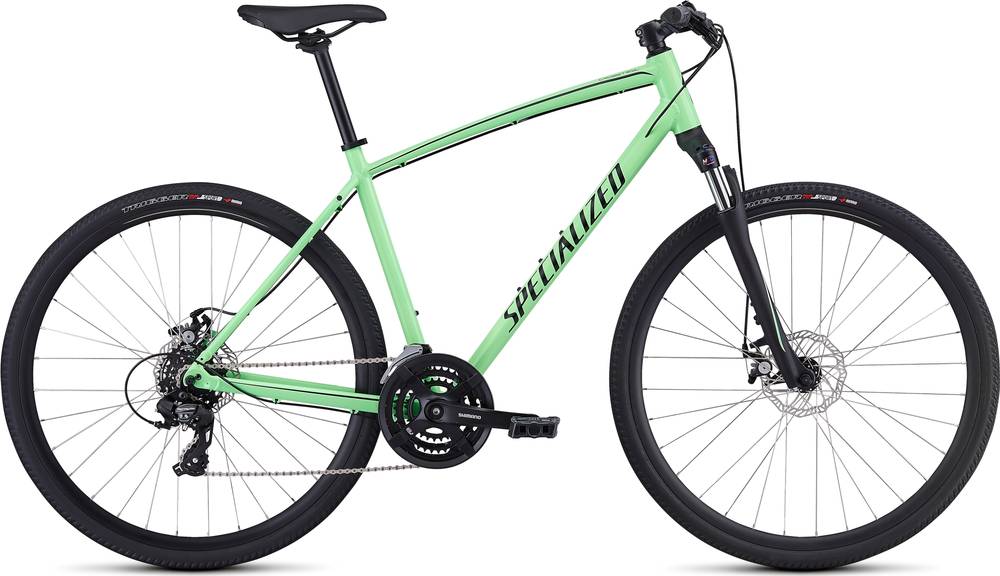

Specialized CrossTrail – Mechanical Disc 2020
2020 Urban
Estimate price |
525$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork SunTour NEX
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, Fitness Geometry, butted tubing, Plug + Play rack/fender mounts
Suspension Fork
SR Suntour NEX, custom Multi-Circuit Damping, 1-1/8" steerer, QR, fender mounts, 35mm offset, 60mm of travel
Drivetrain
Rear Derailleur
Shimano Tourney TX, 7-speed
Front Derailleur
Shimano Tourney, top-swing, 31.8mm band clamp
Shift Levers
Shimano EF500, 7-speed
Cassette
Shimano HG200, 7-speed, 12-32t
Crank
50/34T
Bottom Bracket
BSA, square-taper, 68mm
Chain
KMC Z7, 8-speed w/ reusable Missing Link™
Pedals
Specialized Body Geometry Fitness, platform, plastic
Wheels
Front Hub
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h
Rear Hub
Alloy, 6-bolt disc, 7-speed freehub, loose ball bearing, quick-release, 32h
Rims
Axis Sport Disc
Spokes
Stainless, 14g
Tires
Trigger Sport, 60TPI, wire bead, 700x38mm
Brakes
Brakes
Mechanical disc, organic pads, 6-bolt, tool-less reach adjust, 160mm
Cockpit
Stem
10-degree rise, 25.4mm clamp
Handlebar
Double-butted alloy, 5-degree backsweep, 25.4mm
Grips
Specialized Body Geometry XCT, lock-on
Seat
Saddle
Specialized Canopy Sport, steel rails, 155mm
Seatpost
Alloy, 12mm offset, 2-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.503 mm | 1.505 mm | 1.507 mm | 1.502 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 628 mm | 638 mm | 657 mm | 678 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 84 mm | 81 mm | 81 mm | 81 mm |
| Stack | 586 mm | 602 mm | 621 mm | 640 mm |
| Reach | 390 mm | 400 mm | 412 mm | 426 mm |
| Top Tube Length | 569 mm | 584 mm | 602 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1065 mm | 1075 mm | 1094 mm | 1115 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 722 mm | 742 mm | 802 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CrossTrail – Mechanical Disc is a Specialized Crosstrail model. There are 50 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Specialized CrossTrail – Mechanical Disc 2020 is the most economical model, with a starting price of 525$. Specialized CrossTrail Elite 2020 on the other hand costs 1200$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 525$. In conclusion, this bike price is 24.95% smaller than the price of the average Fitness bike.
CrossTrail – Mechanical Disc components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on CrossTrail – Mechanical Disc are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized CrossTrail – Mechanical Disc is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
