Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crosstrail A1 Premium Aluminum, formed TT, ORE DT, forged dropouts w/ replaceable hanger, integrated kickstand mount, chainstay disc mount
Suspension Fork
SR SunTour SF10-NVX-MLO 700C, alloy lower, 75mm travel, 28mm stanchions, coil spring, mechanical lock-out
Drivetrain
Rear Derailleur
Shimano Acera, 8-speed
Front Derailleur
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
Shift Levers
Shimano SL-MC40, 8-speed, rapid fire
Cassette
SRAM PG-820, 8-speed, 11-32t
Crank
Shimano FC-M361-8 w/ chainguard
Bottom Bracket
Cartridge bearing, square spindle with crank stop right side and capless bolts
Chain
KMC Z8, w/ reusable Missing Link
Pedals
Composite platform body, sealed loose ball bearings
Wheels
Front Hub
Forged alloy, double sealed, ground race, QR
Rear Hub
Forged alloy, double sealed, ground race, cassette, QR, 32h
Rims
Alex Crosstrail, 700c, alloy double wall w/ machine sidewalls, 32h
Spokes
1.8mm (15g) stainless
Tires
Specialized Borough XC Sport 700x45c, 60TPI, wire bead
Brakes
Brakes
Alloy linear pull, 1pc. pad
Brake Levers
V-Brake, Linear pull
Cockpit
Stem
Melt Forged alloy, 2-bolt, 25.4mm, 15 degree rise
Handlebar
Alloy riser bar, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
Grips
Specialized Enduro, closed end, 130mm
Headset
1-1/8"" threadless, sealed loose ball bearings
Seat
Saddle
Specialized XC, Body Geometry, 143mm width, front and rear bumpers
Seatpost
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Front Center | 648 mm | 658 mm | 673 mm | 678 mm | 681 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 91 mm | 88 mm | 88 mm | 85 mm | 85 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 618 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 72.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1093 mm | 1103 mm | 1119 mm | 1123 mm | 1126 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 739 mm | 776 mm | 810 mm | 842 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

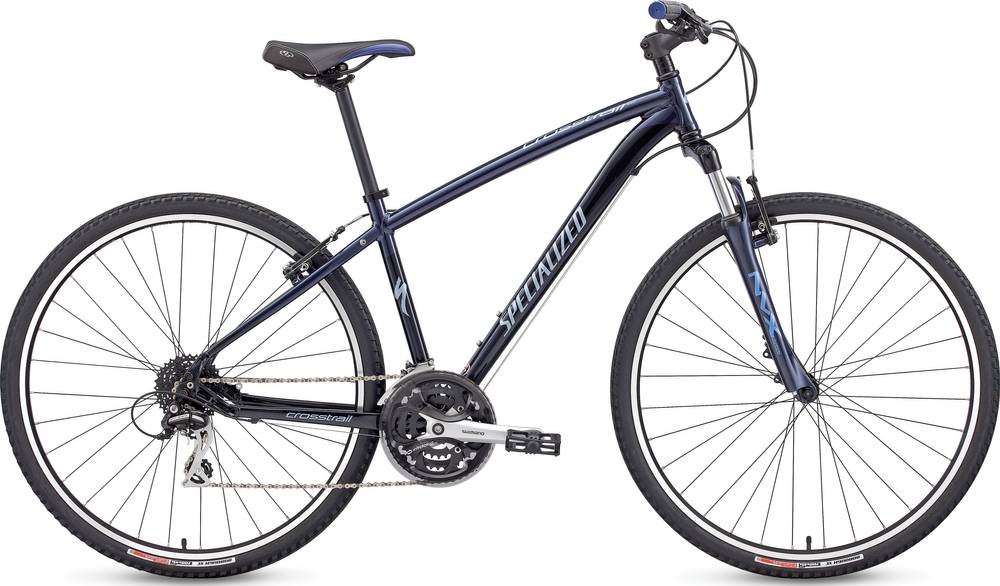

Crosstrail Sport is a Specialized Crosstrail model. 50 bikes variations carry this model name so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosstrail Sport components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Crosstrail Sport 2010 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
