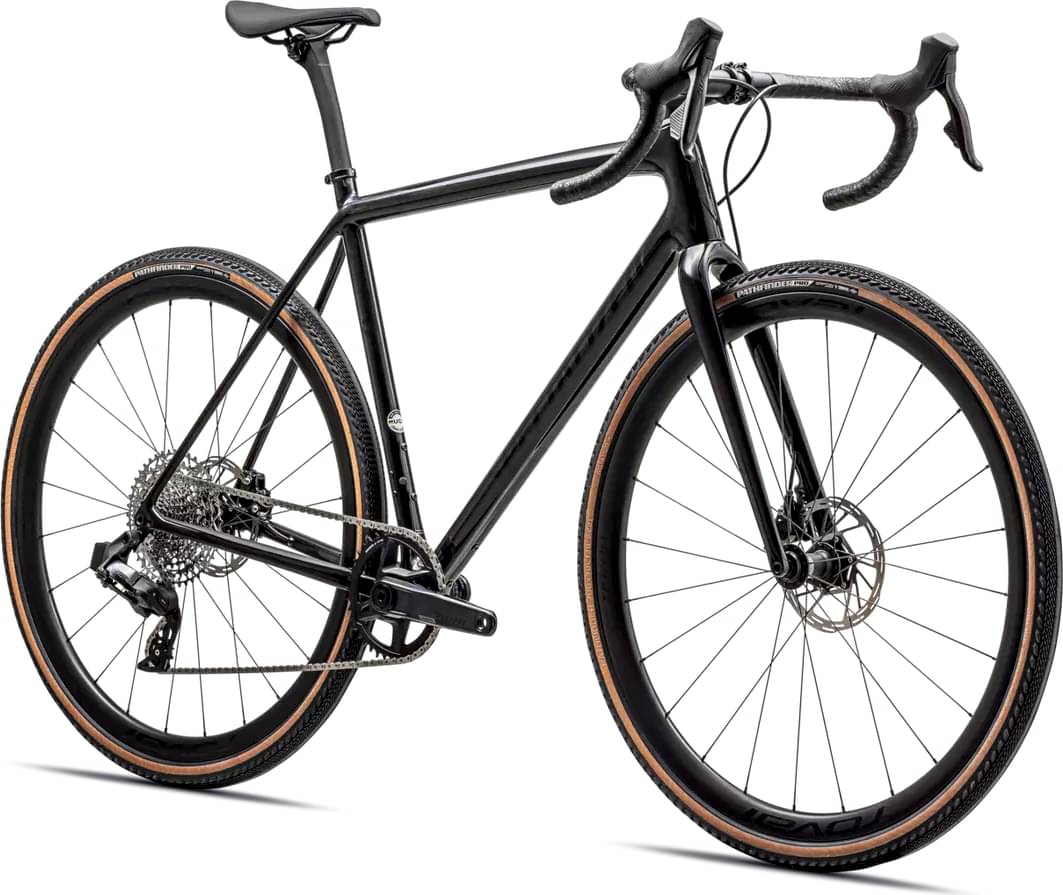

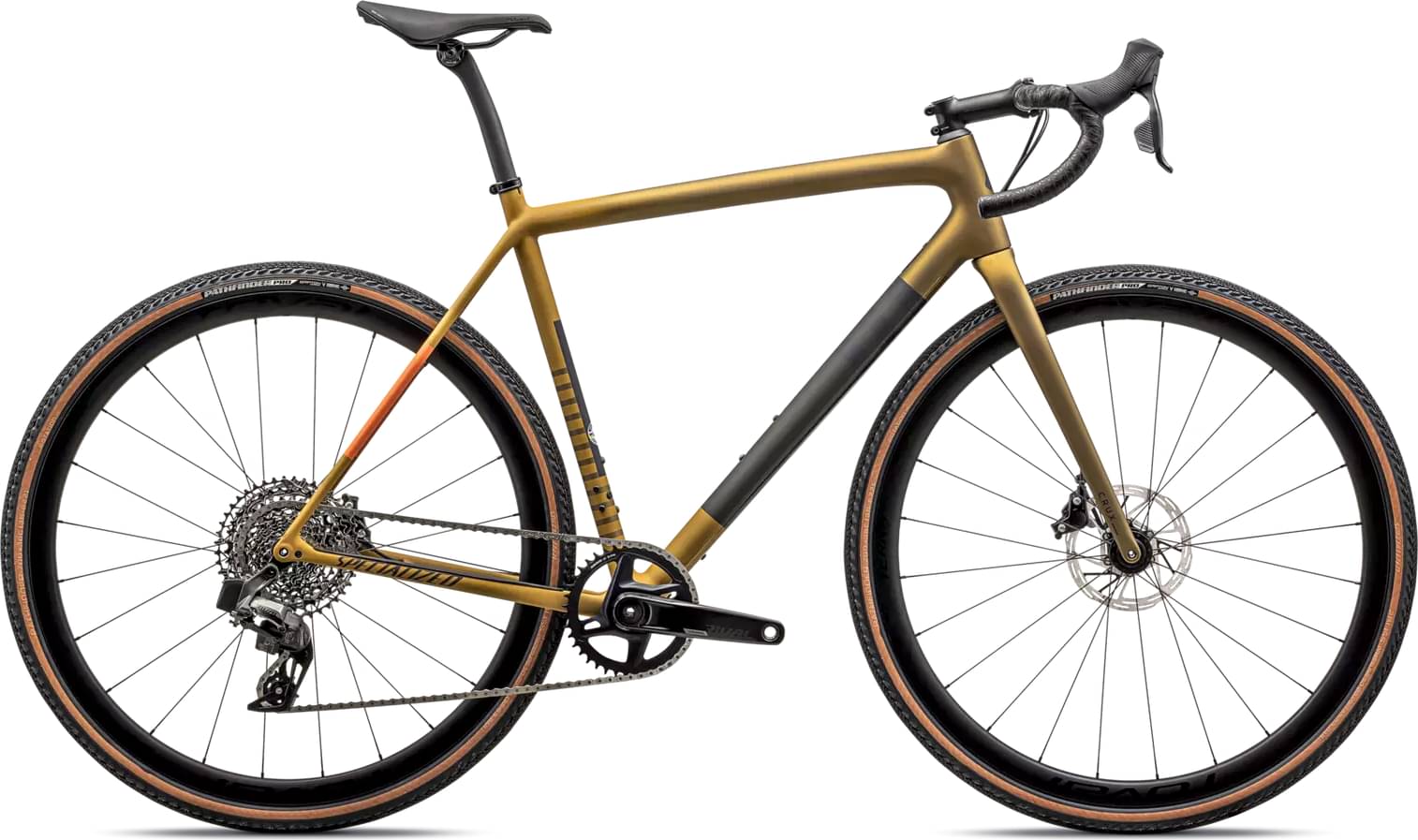

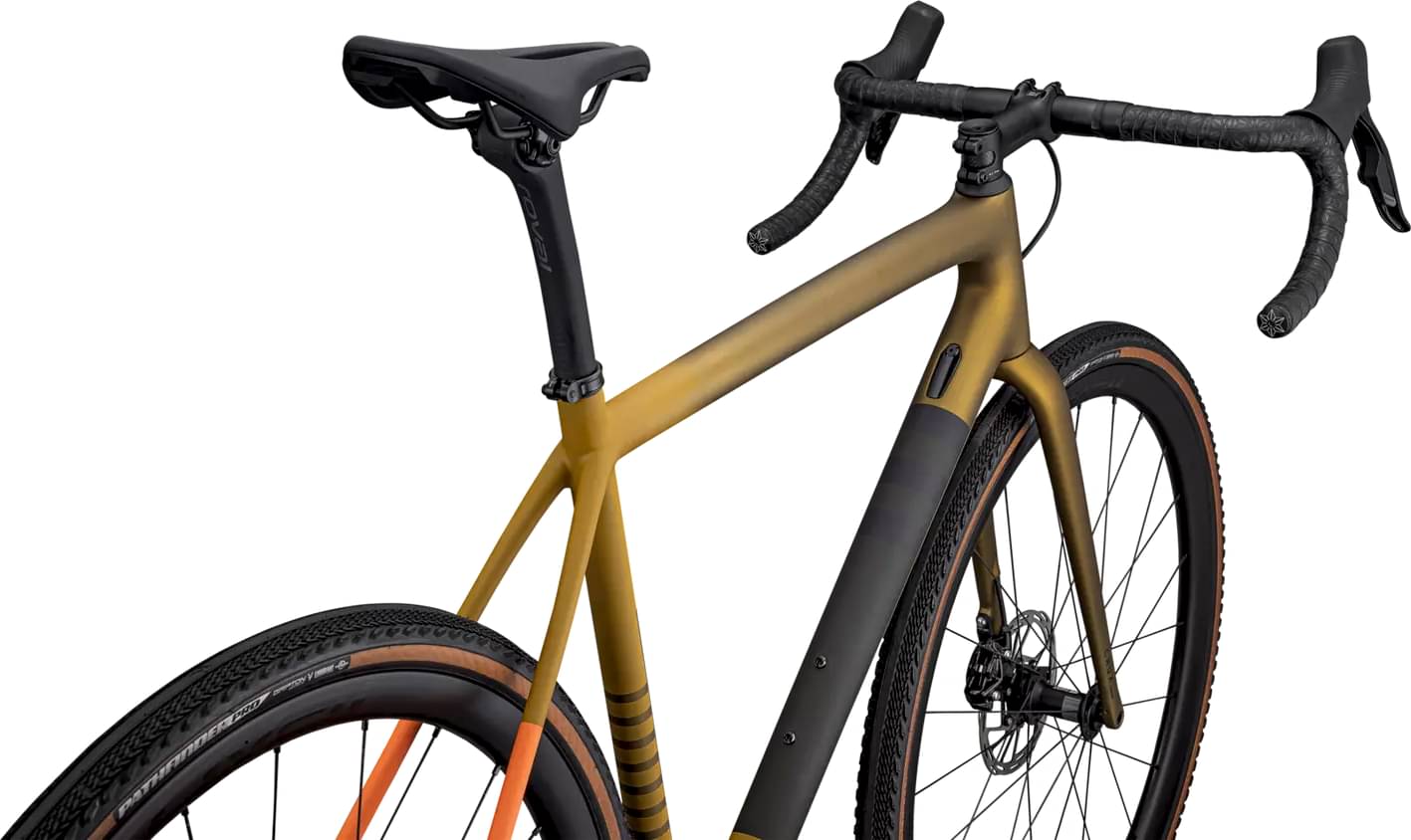

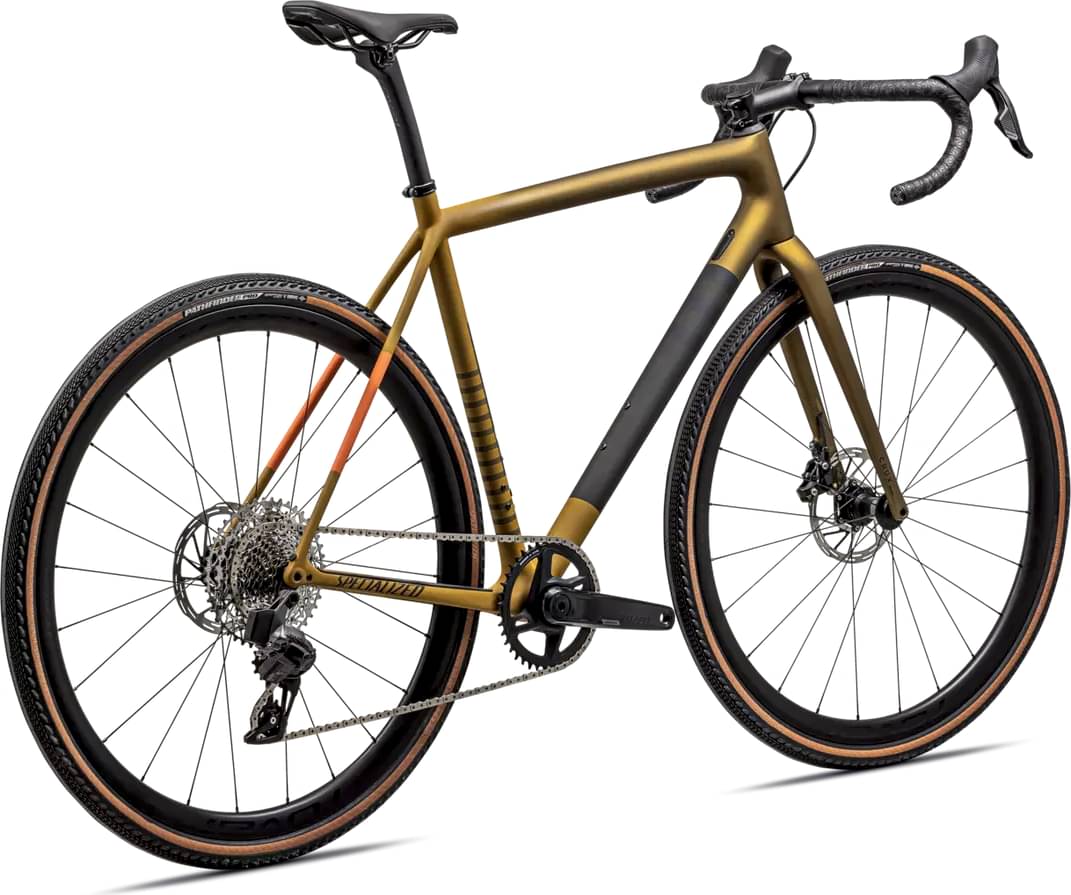

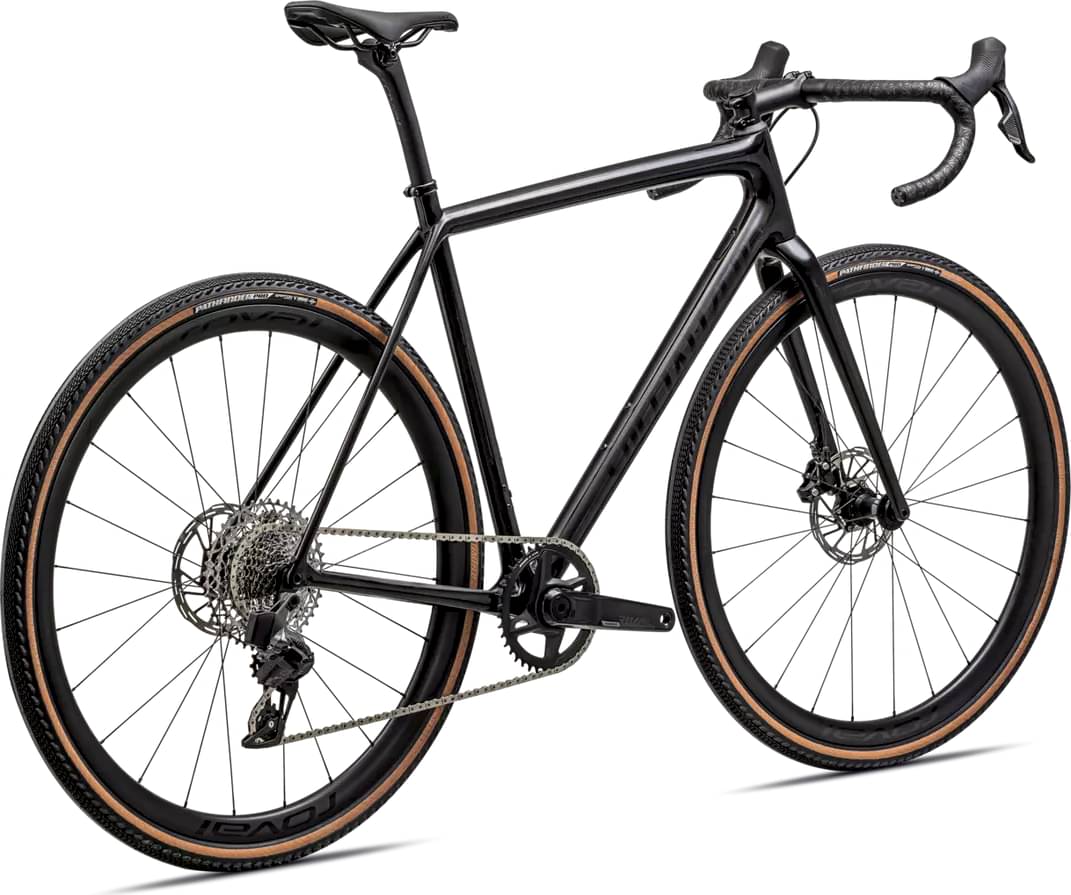

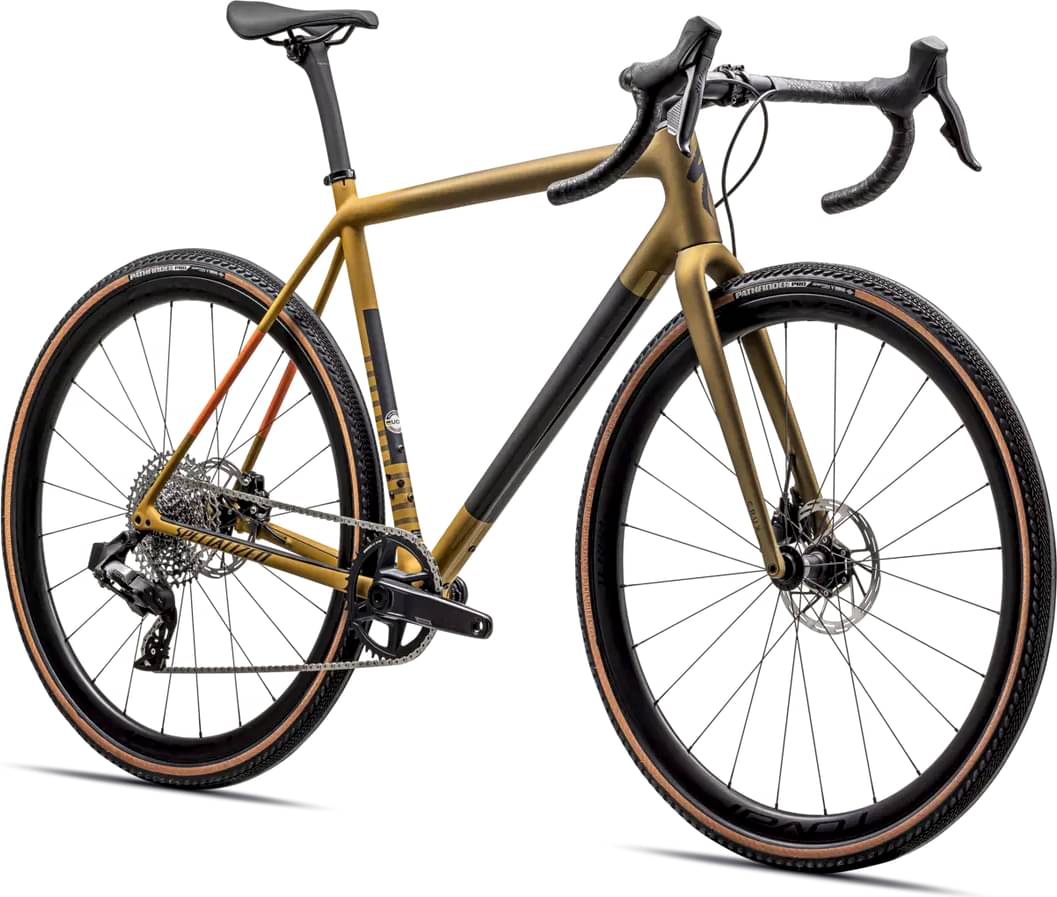

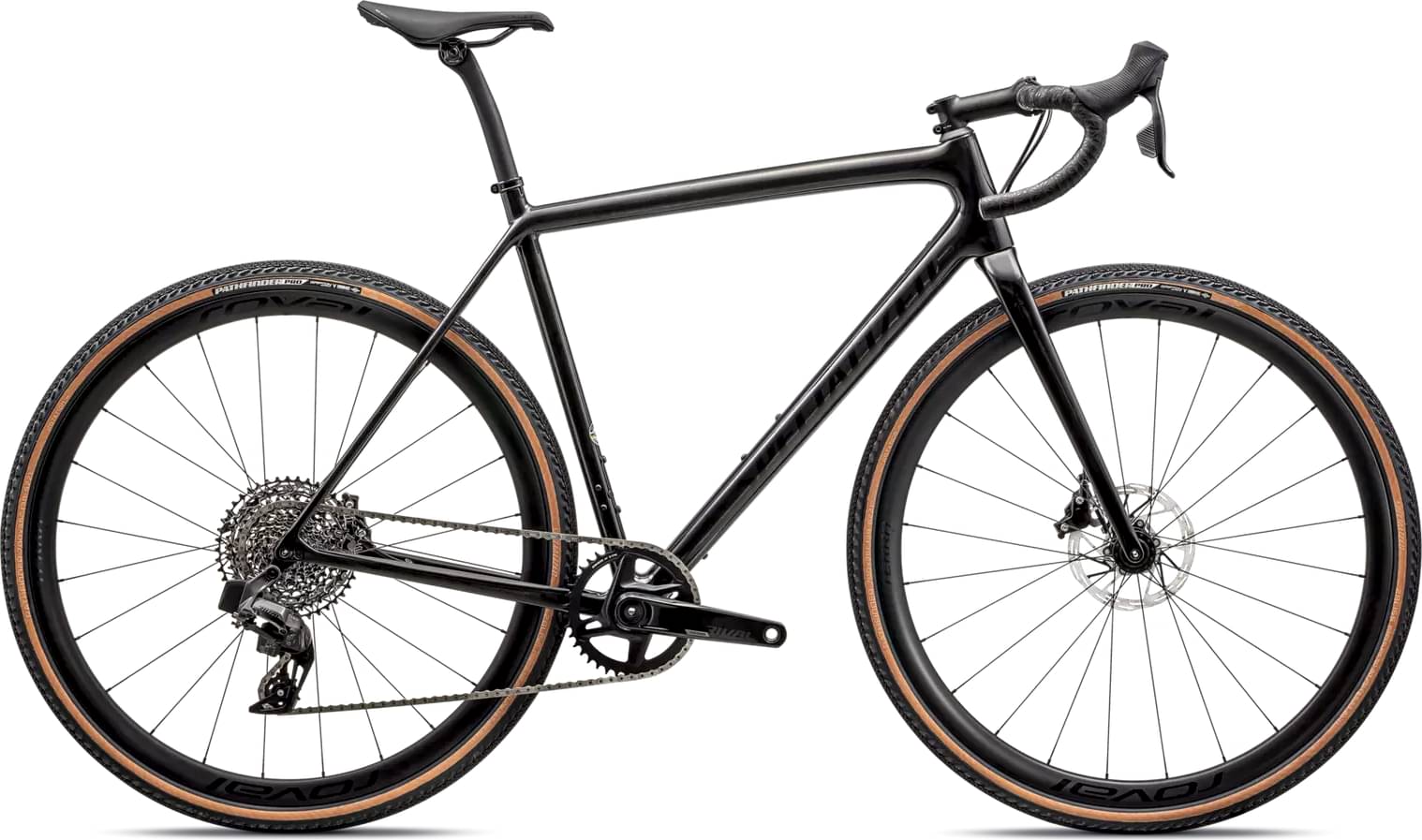

Specialized Crux Expert 2024
2024 Road
Estimate price |
6,882$
Weight | 8.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

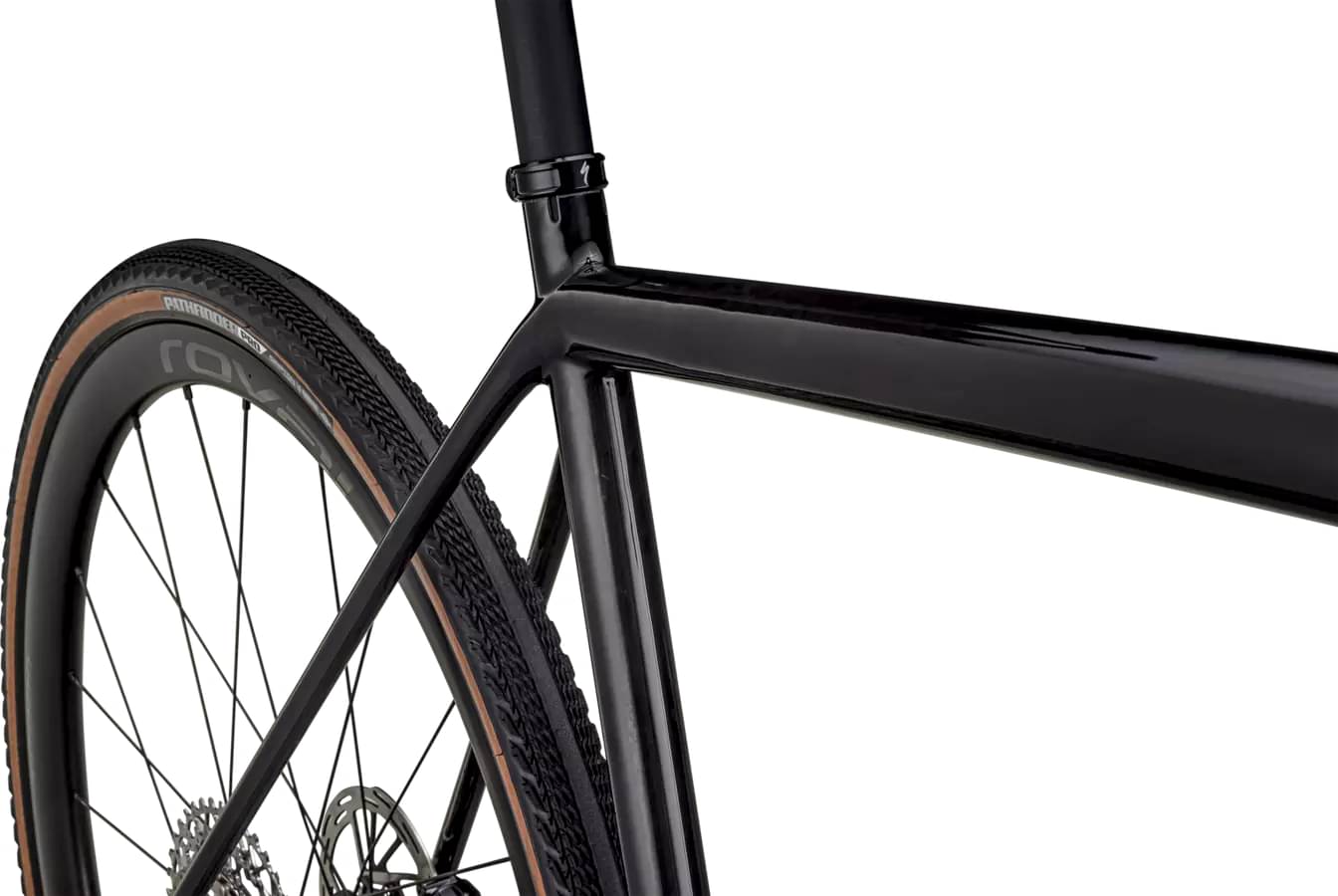

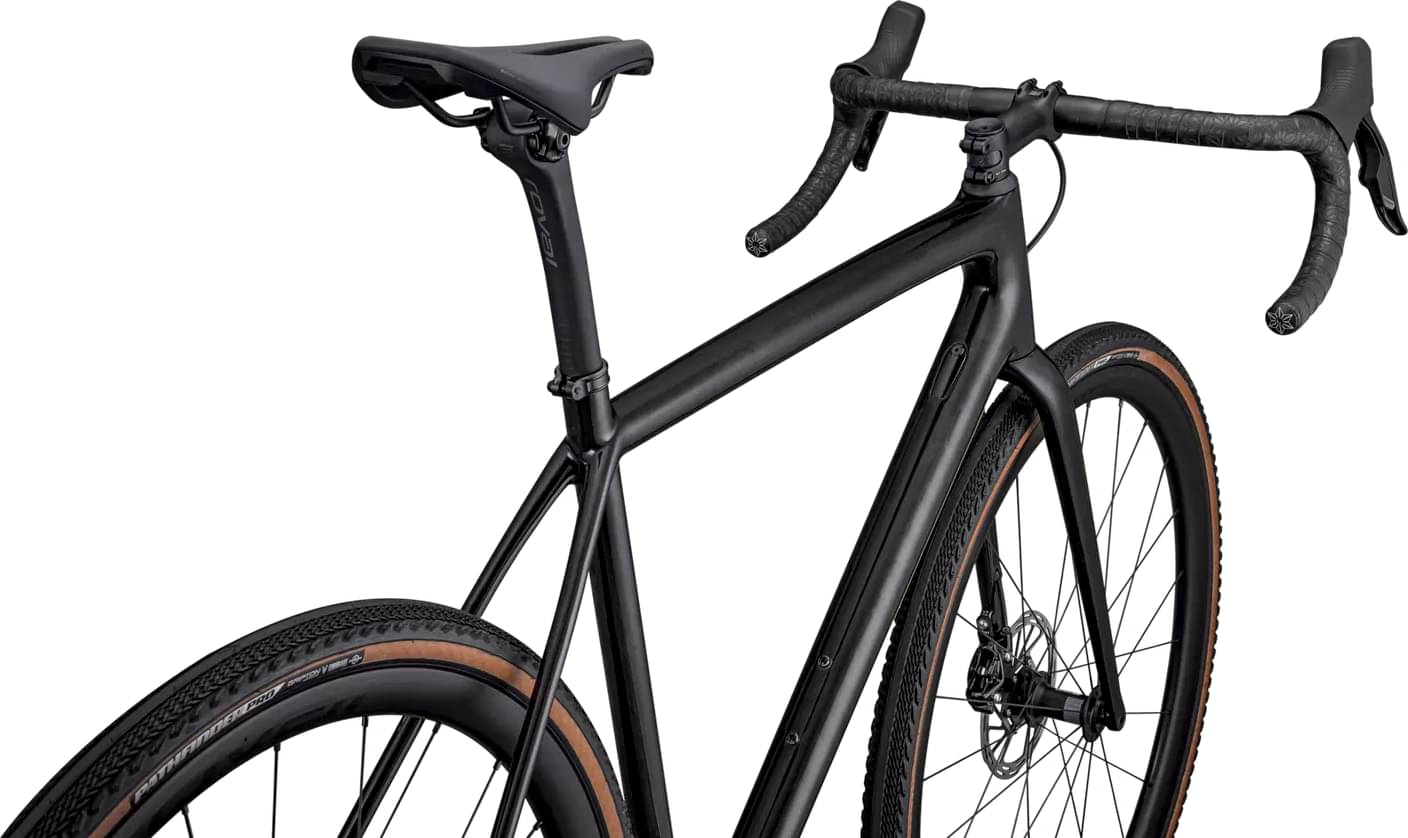

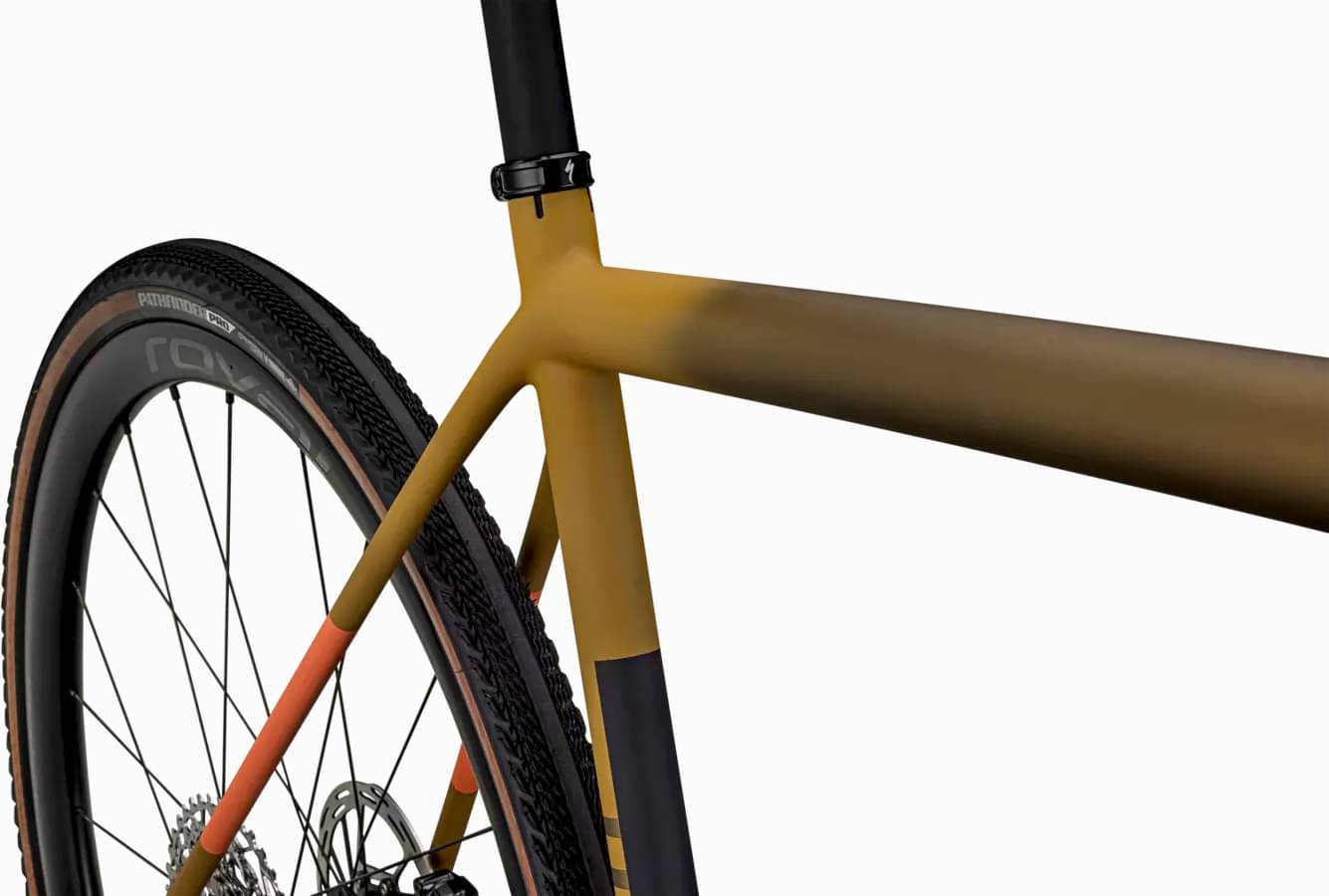

Frame
Frame
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension Fork
FACT 12R Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTap AXS
Shift Levers
SRAM Rival eTAP AXS
Cassette
SRAM XPLR, XG-1251, 12-speed, 10-44t
Crank
SRAM Rival 1x, 40T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Rival 12-speed
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
Wheels
Rims
Front: Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes, Rear: Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes
Tires
Front: Pathfinder Pro 2BR, Tan Sidewall, 700x38, Rear: Pathfinder Pro 2BR, Tan Sidewall, 700x38
Brakes
Brakes
Front: SRAM Rival eTAP AXS, hydraulic disc, Rear: SRAM Rival eTAP AXS, hydraulic disc

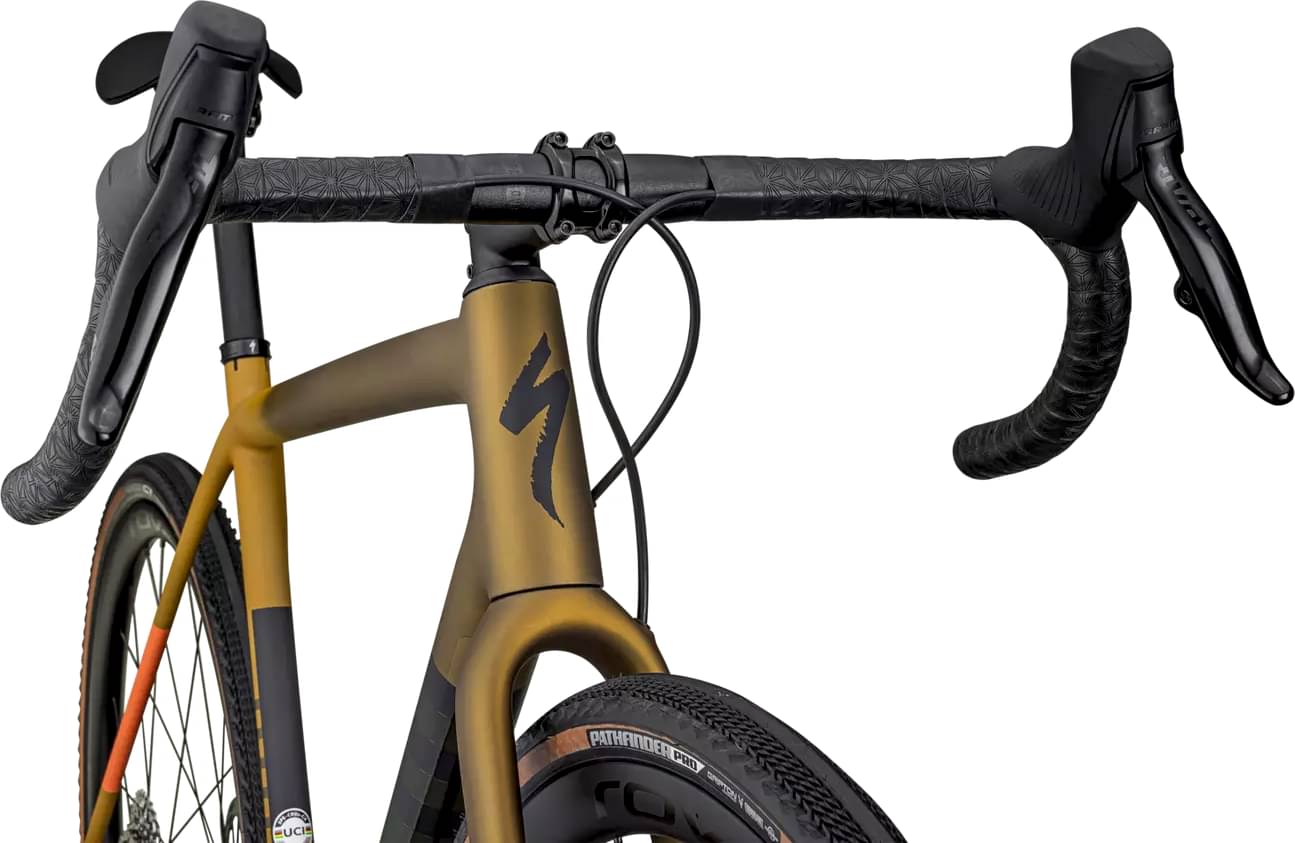

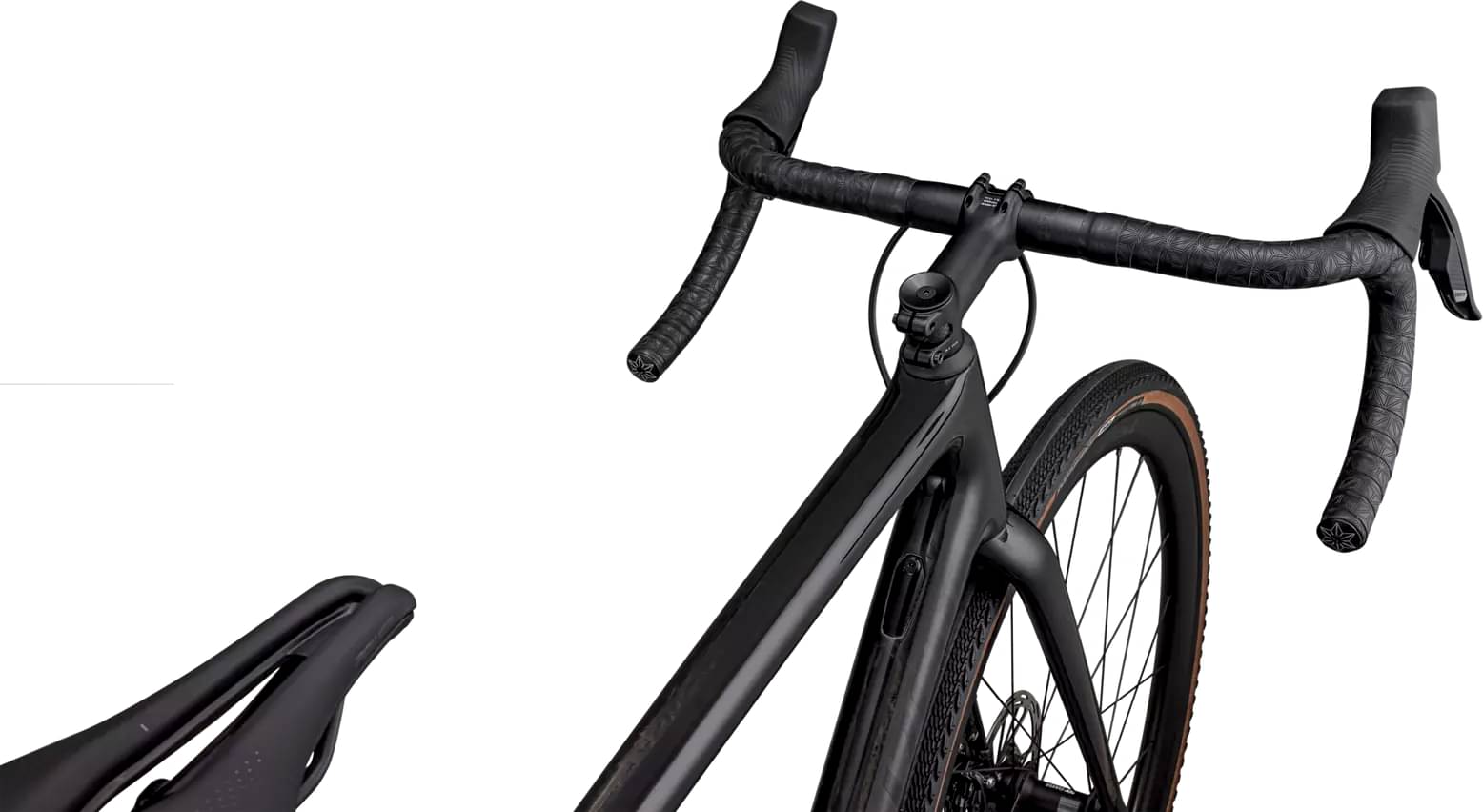

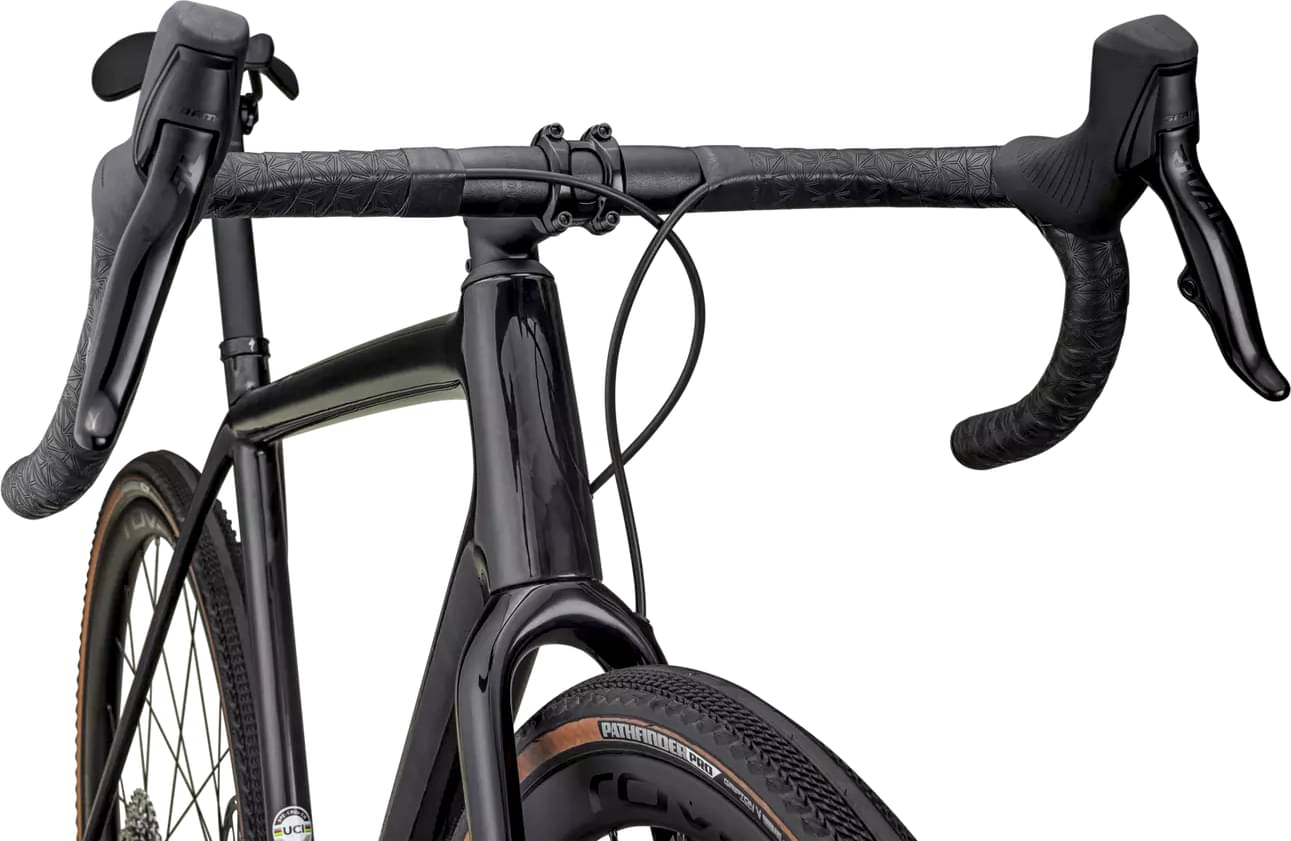

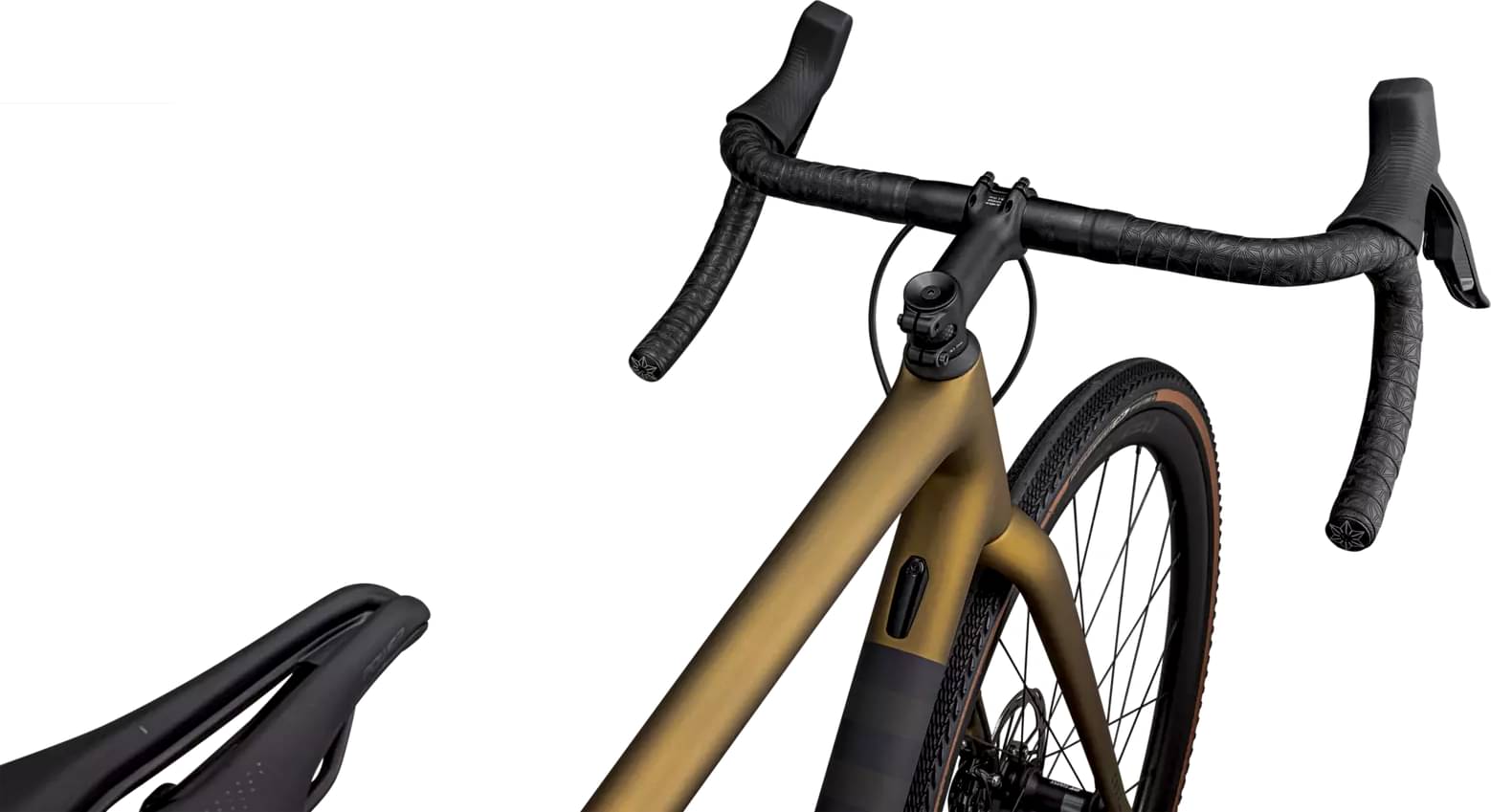

Cockpit
Stem
Specialized Pro SL, alloy, 4-bolt, 6-degree rise
Handlebar
Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Seat
Saddle
Body Geometry Power Expert, titanium rails
Seatpost
Roval Terra Carbon Seat Post, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.432 mm | 1.443 mm | 1.456 mm | 1.477 mm | 1.496 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 594 mm | 600 mm | 608 mm | 618 mm | 630 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 69 mm | 67 mm | 64 mm | 62 mm | 60 mm |
| Stack | 530 mm | 547 mm | 560 mm | 578 mm | 598 mm | 621 mm |
| Reach | 375 mm | 382 mm | 388 mm | 397 mm | 405 mm | 415 mm |
| Top Tube Length | 512 mm | 539 mm | 549 mm | 568 mm | 582 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 466 mm | 496 mm | 521 mm | 546 mm | 576 mm | 606 mm |
| Head Tube Angle | 70.5 ° | 71.25 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 147 mm | 167 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1008 mm | 1014 mm | 1023 mm | 1033 mm | 1045 mm | 1059 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 772 mm | 794 mm | 816 mm | 841 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
Crux Expert belongs to the Specialized Crux model. 98 bikes variations carry this model name so far. Take a sneak peek at all Specialized Crux bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Specialized Crux Comp 2024 has a starting price of 4236$. Specialized S-Works Crux 2024 on the other hand is the most expensive at 12178$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 6354$. Comparing the average cost of a Gravel bike to this one, you will see that Crux Expert price is 158.08% higher.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Crux Expert has a weight of 8.16 kg (17.99 lbs). In conclusion, the average Gravel bike weighs 0.37% less than Crux Expert.
Crux Expert components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Crux Expert model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Crux Expert has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
