Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 26" -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

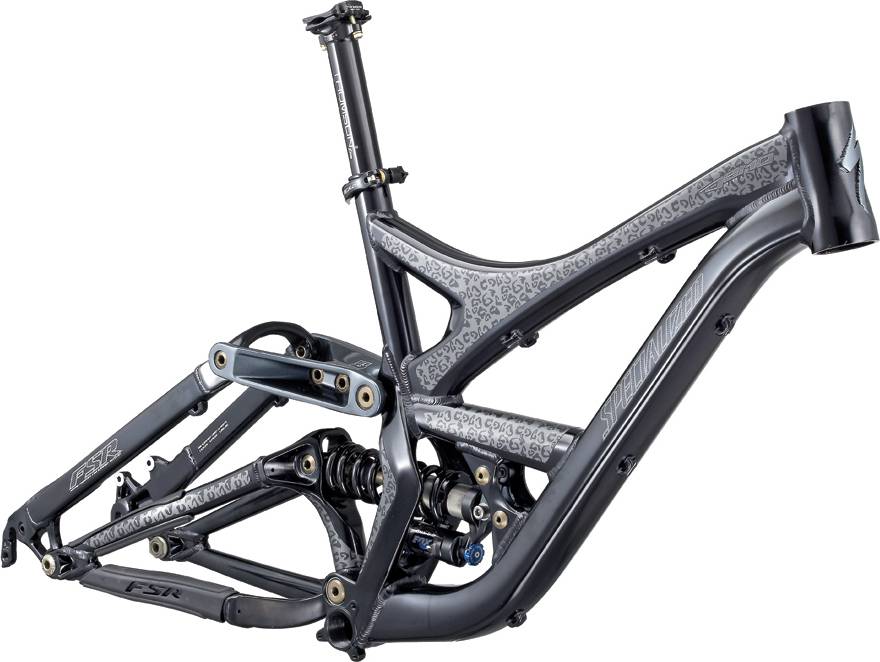

Demo 7 FSR M5 Manipulated Alloy, 7"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, adj. geometry, 1.5"" forged HT, cartridge bearing rear shock mount, rear derailleur protector
Rear Shock
Fox DHX 5.0 coil 8.5x2.375"", ProPedal and rebound adj. bottom out control, S:450, M:500, L:550
Seat
Seatpost
6066 butted alloy, two-bolt, 0 offset, 30.9x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 374 mm | 374 mm | 374 mm |
| Top Tube Length | 548 mm | 573 mm | 593 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 457 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1158 mm | 1183 mm | 1203 mm |
| Bottom Bracket Drop | -31 mm | -31 mm | -31 mm |
| Standover Height | 746 mm | 751 mm | 761 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Demo 7 Frame is a Specialized Demo model. Specialized released 63 frames variations of this model so far. Check out the entire range from 2009 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Overview of components
Sizes
This frame is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
