Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 26" -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

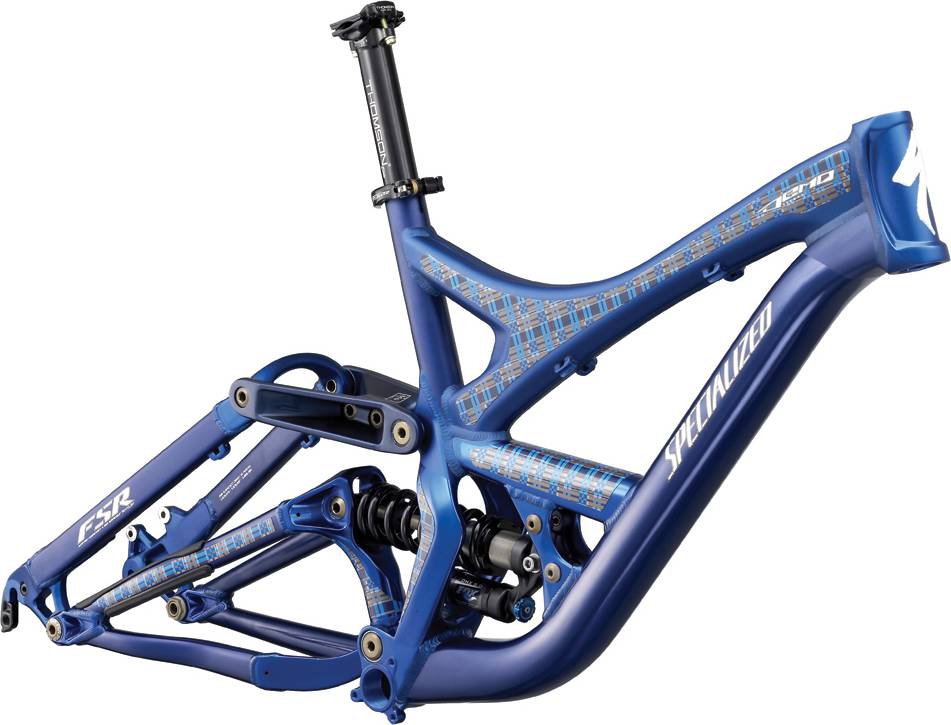

Demo 8 FSR M5 Manipulated Alloy, 8.2"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, adj. geometry, 1-1/8"" forged HT, cartridge bearing rear shock mount, rear derailleur protector
Rear Shock
Fox DHX 5.0 coil 8.5x2.375"", ProPedal and rebound adj. bottom out control, S:450, M:500, L:550
Seat
Seatpost
Thomson straight w/ 12 degree clamp, 367mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 380 mm | 380 mm | 380 mm |
| Top Tube Length | 548 mm | 573 mm | 590 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 457 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1166 mm | 1194 mm | 1211 mm |
| Bottom Bracket Drop | -37 mm | -37 mm | -37 mm |
| Standover Height | 752 mm | 757 mm | 767 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Demo 8 Frame is part of the Specialized Demo model. Specialized launched 63 frames of this model so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Overview of components
Sizes
Specialized Demo 8 Frame frame has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
