Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset X0, X9 -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 alloy, S3 Geometry, carbon link and seatstay, BB30, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Suspension Fork
RockShox BoXXer Team 650b, coil spring, S: Extra soft spring, M: Soft spring, L: Medium spring, XL: Firm spring, 200mm of travel, charger damper, compression adjust, rebound adjust, alloy steerer, 48mm offset, Maxle Lite DH
Rear Shock
Custom Öhlins TTX, Twin-Tube desgin, high and low-speed compression adjust, rebound adjust, 9.5x3""
Drivetrain
Rear Derailleur
SRAM X0 Type 2.1, short cage, 10-speed
Shift Levers
SRAM X9, 10-speed, trigger
Cassette
SRAM PG-1030, 10-speed, 11-36t
Crank
SRAM X0 DH, BB30, carbon arms, triple base w/Gamut bashguard 165mm, SRAM 36T
Bottom Bracket
SRAM BB30, 83mm
Chain
SRAM PC-1031, 10-speed w/PowerLink
Pedals
Specialized Bennies, 6061 alloy body, sealed cartridge bearings, 4.5mm removable pins
Wheels
Front Hub
Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20mm thru-axle, 32h
Rear Hub
Custom DT Swiss 350, 135mm spacing, SRAM XD driver, 54T ratchet, 12mm thru-axle, 32h
Rims
Roval 650b, alloy, 24mm inner width, 32h
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Tires
Butcher, DH casing, 650bx2.5"", 60TPI, wire bead
Brakes
Brakes
SRAM Guide RS lever, hydraulic disc, organic pads, Code calipers, 200mm rotor
Cockpit
Stem
Specialized P.Series MTB, forged alloy, 4-bolt, 45mm
Handlebar
Specialized DH, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 800mm, 31.8mm
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Thomson, alloy, straight, 12-degree clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | MD | Long | Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.46 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 754 mm | 779 mm | 799 mm | 819 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 615 mm | 615 mm | 615 mm | 615 mm |
| Reach | 396 mm | 421 mm | 441 mm | 461 mm |
| Top Tube Length | 572 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 367 mm | 367 mm | 367 mm | 367 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1184 mm | 1209 mm | 1229 mm | 1249 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 699 mm | 699 mm | 699 mm | 699 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

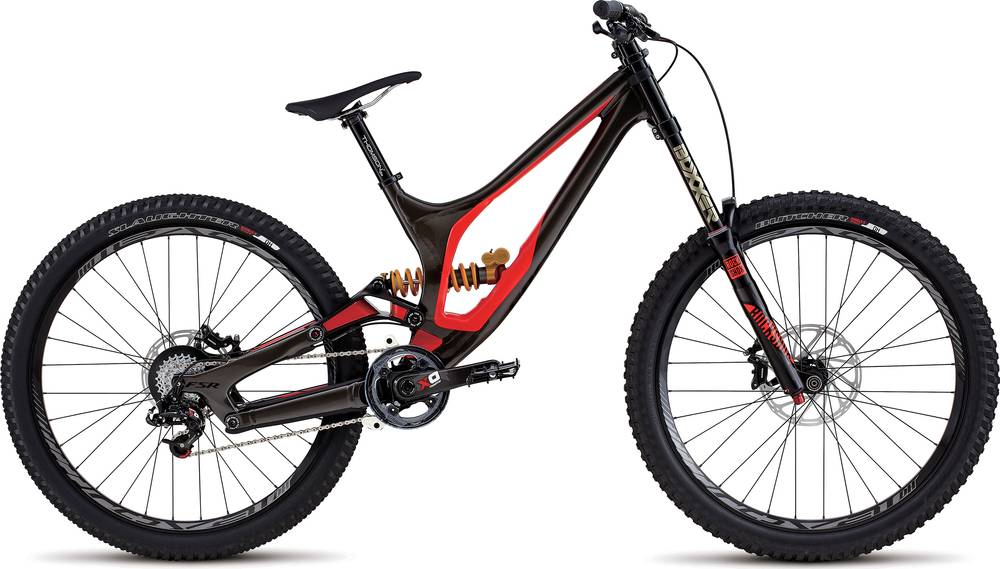

Demo 8 II Alloy completes the Specialized Demo model. Specialized released 63 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill bikes
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the RockShox BoXXer fork installed. The fork’s travel is 200mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The Demo 8 II Alloy has a rear shock with a travel of 200mm. The model Custom Öhlins TTX is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Demo 8 II Alloy 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Demo 8 II Alloy comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
