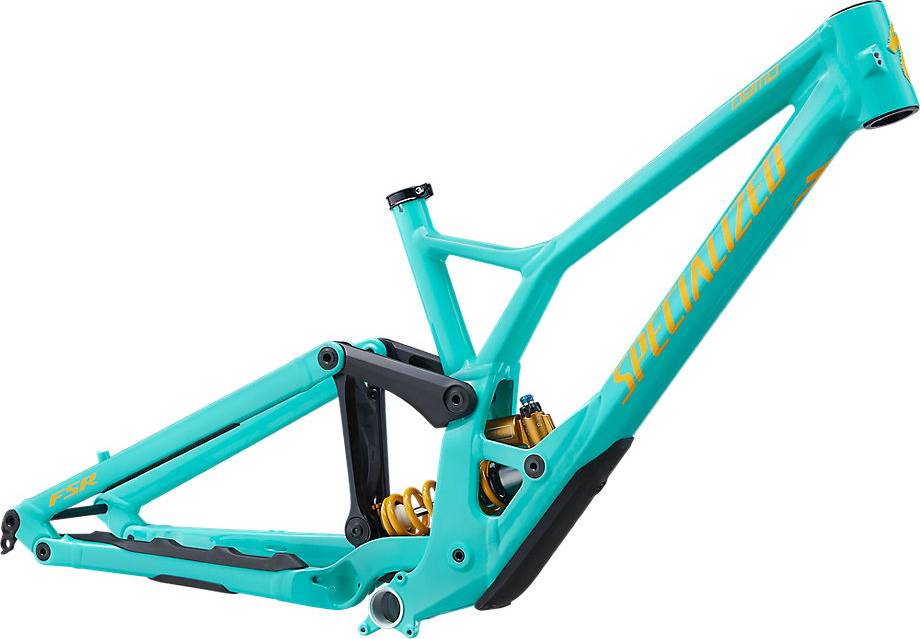

Specialized Demo Race 29 Frame 2020
2020 Mountain
Estimate price |
2,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 200mm -
Suspension Full
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 alloy, Style-Specific DH Geometry, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Rear Shock
Öhlins TTX, Twin-Tube design, high- & low-speed compression adjust, external rebound adjust, Trunnion mount, 225x75
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Seat
Saddle
Body Geometry Henge DH, hollow titanium rails, 130mm
Seatpost
Thomson, alloy, straight, 12-degree clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Front Center | 804 mm | 824 mm | 844 mm |
| Rake | 58 mm | 58 mm | 58 mm |
| Trail | 128 mm | 128 mm | 128 mm |
| Stack | 627 mm | 627 mm | 627 mm |
| Reach | 419 mm | 439 mm | 459 mm |
| Top Tube Length | 557 mm | 594 mm | 614 mm |
| Seat Tube Angle | 77.7 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 394 mm | 420 mm | 420 mm |
| Head Tube Angle | 62.7 ° | 62.7 ° | 62.7 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1247 mm | 1267 mm | 1287 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 754 mm | 754 mm | 754 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm |
Model Overview
Demo Race 29 Frame belongs to the Specialized Demo model. Specialized launched 63 frames of this model so far. You can easily view all of the Specialized Demo frames models from 2020, here.
Model range prices
Specialized Demo Race 29 Frame 2020 is the cheapest frame model and costs 2500$. Specialized S-Works Demo 8 Frame 2020 is the most expensive one and costs 4000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill frames
According to our math, the average price for a trustworthy Downhill frame is 1923$. However, even though the average price of a Downhill frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2500$. In conclusion, this frame price is 30.01% higher than the price of the average Downhill frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
From the factory, it comes with the Öhlins TTX rear shock model, which has a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Specialized Demo Race 29 Frame frame has 3 sizes, in the range of 157 cm – 188 cm (5.15 ft – 6.17 ft). In conclusion, finding one for you shouldn’t be a problem.
