Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 20mm -
Fork Specialized Future Shock 1.5
-
Groupset Apex -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
163cm - 170cm
54cm
170cm - 178cm
56cm
175cm - 180cm
58cm
180cm - 188cm
61cm
188cm - 196cm
64cm
196cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized Diverge E5 Premium Aluminum, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Drivetrain
Rear Derailleur
SRAM Apex 1, long cage, 11-speed
Shift Levers
SRAM Apex, hydraulic
Cassette
Sunrace, 11-speed, alloy spider, 11-42t
Crank
SRAM Apex 1x, 40T
Bottom Bracket
SRAM GXP
Chain
KMC X11 Extra Lightweight, 11-speed
Pedals
REMOVE
Wheels
Rims
Front: AXIS Elite Disc, Rear: AXIS Elite Disc
Tires
Front: Specialized Pathfinder Sport, 700x38c, Rear: Specialized Pathfinder Sport, 700x38c
Brakes
Brakes
Front: SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor, Rear: SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
Cockpit
Stem
Future Stem, Comp

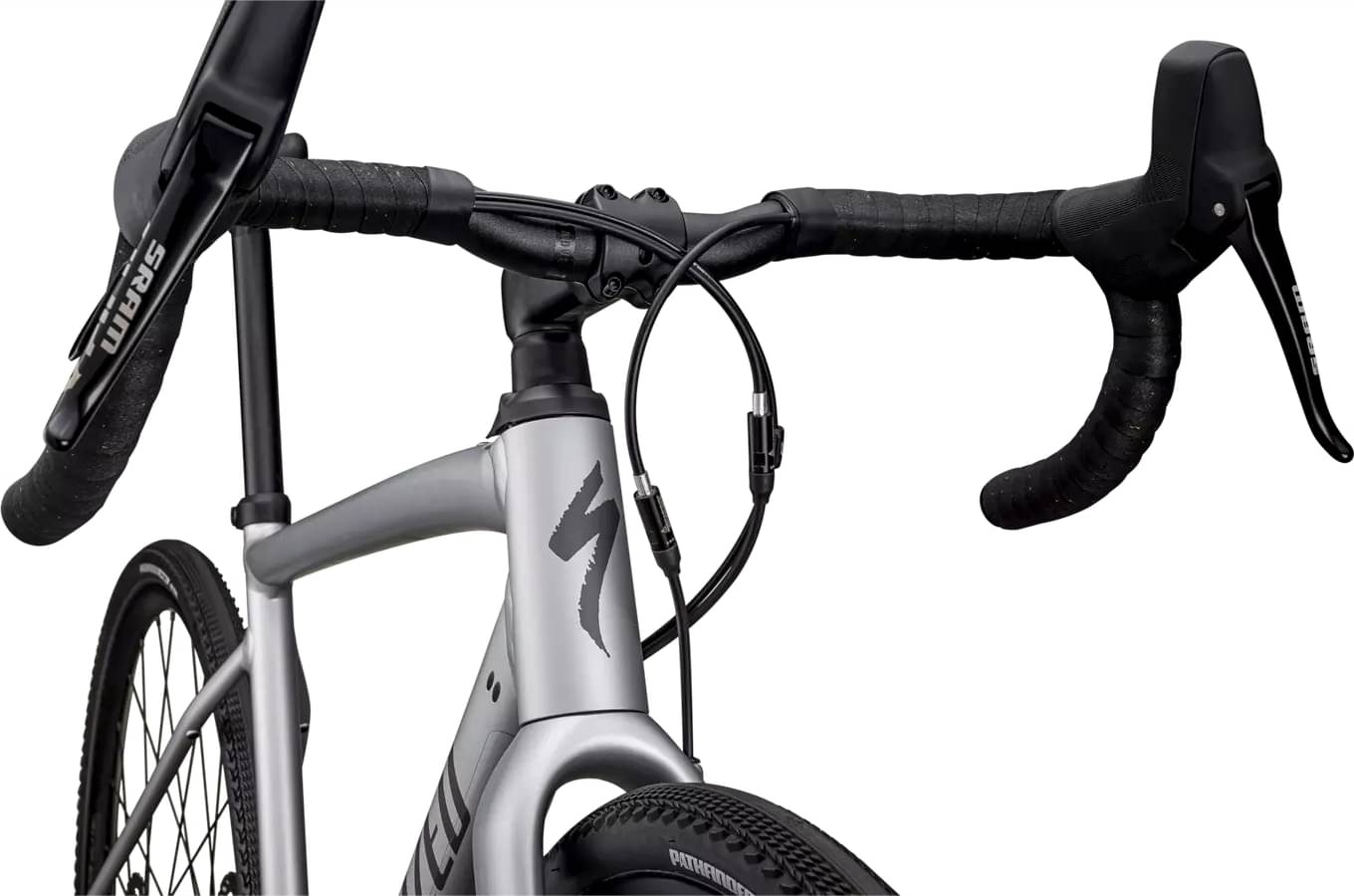

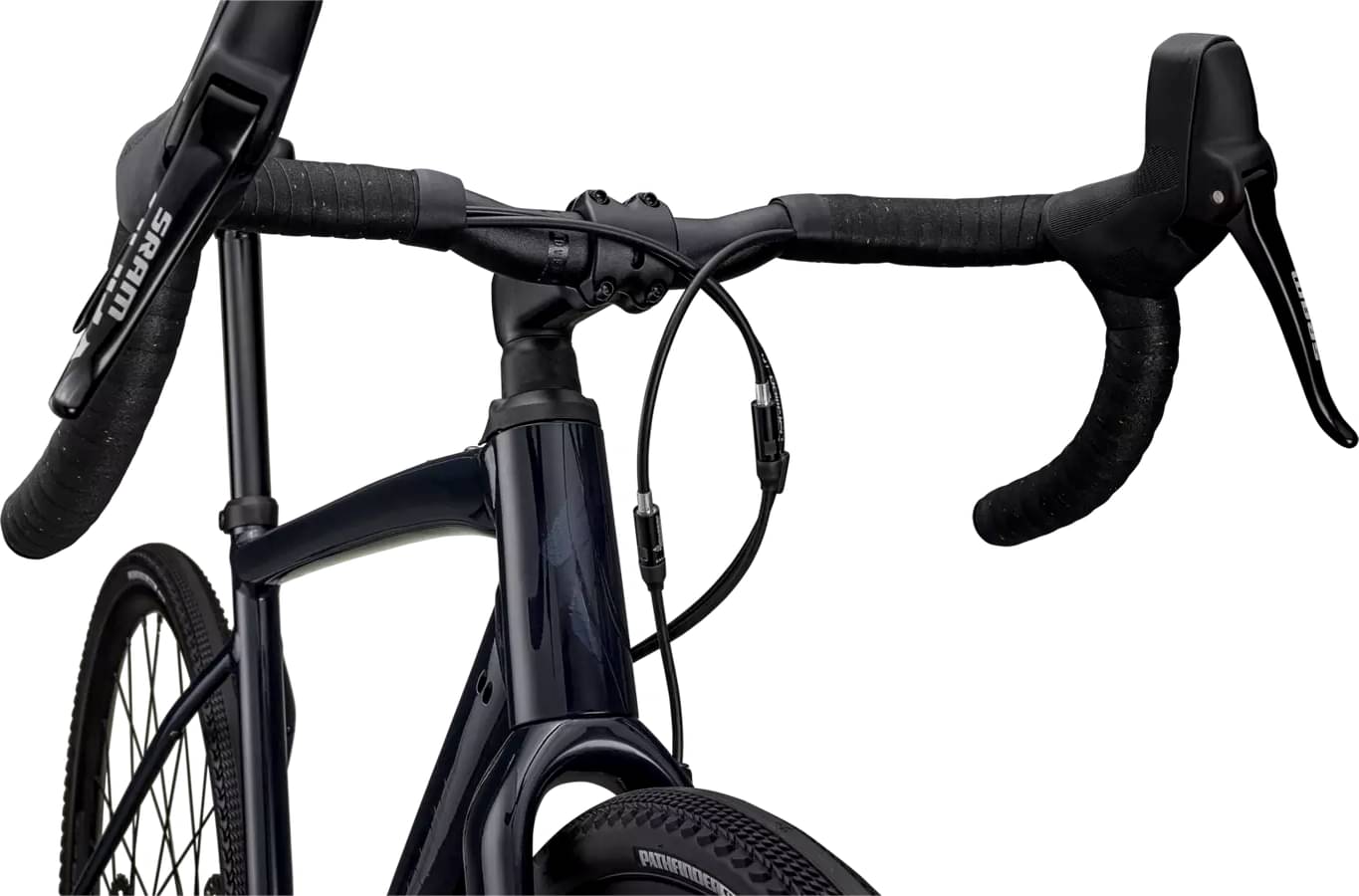

Handlebar
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Alloy, 2-bolt Clamp, 12mm offset, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.54 mm | 1.55 mm | 1.57 mm | 1.6 mm | 1.62 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 607 mm | 614 mm | 620 mm | 630 mm | 647 mm | 664 mm | 675 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm | 54 mm |
| Stack | 578 mm | 584 mm | 599 mm | 617 mm | 641 mm | 666 mm | 691 mm |
| Reach | 372 mm | 381 mm | 390 mm | 399 mm | 408 mm | 417 mm | 426 mm |
| Top Tube Length | 536 mm | 549 mm | 565 mm | 580 mm | 596 mm | 612 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.25 ° | 71.75 ° | 71.75 ° | 71.75 ° | 72.25 ° |
| Head Tube Length | 99 mm | 104 mm | 116 mm | 133 mm | 159 mm | 185 mm | 209 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1033 mm | 1040 mm | 1046 mm | 1056 mm | 1073 mm | 1090 mm | 1102 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 704 mm | 729 mm | 745 mm | 784 mm | 807 mm | 830 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Diverge Comp E5 belongs to the Specialized Diverge model. Specialized launched 115 bikes of this model so far. Take a sneak peek at all Specialized Diverge bikes models from 2023, by clicking here.
Model range prices
Specialized Diverge E5 2023 is the most affordable bike of this model and has a price of 1300$. On the other hand, Specialized S-Works Diverge 2023, is the most expensive and costs 12500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 2500$. Comparing this to the average Gravel bike price, we see that the price is 1.54% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Diverge Comp E5 components
Fork
The Diverge Comp E5 comes factory-installed with the Specialized Future Shock 1.5 fork. This has a travel range of 20mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Diverge Comp E5 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Diverge Comp E5 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
