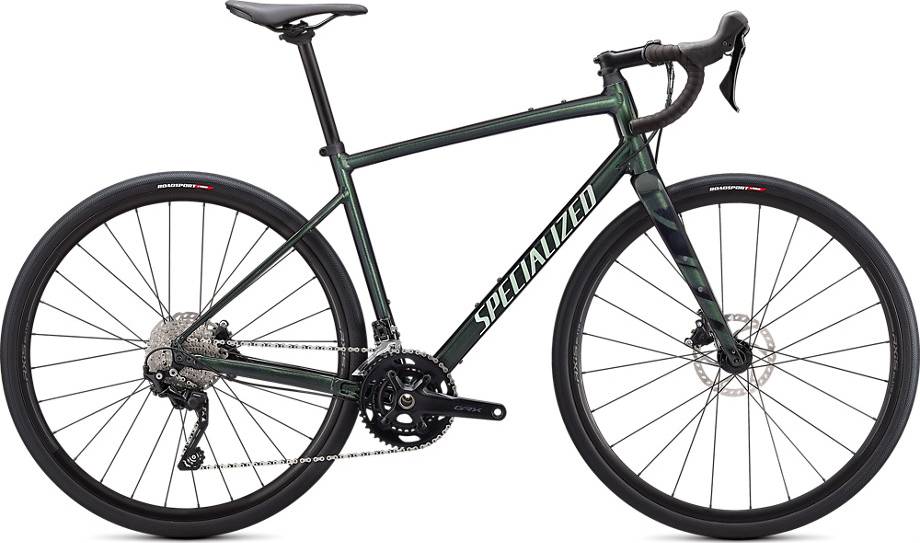

Specialized Diverge Elite E5 2020
2020 Road
Estimate price |
1,700$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
142cm - 152cm
52cm
163cm - 170cm
54cm
170cm - 178cm
56cm
175cm - 180cm
58cm
180cm - 188cm
61cm
188cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized Diverge E5 Premium Aluminum, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
FACT carbon, full carbon steerer, 12x100 mm thru-axle, flat-mount
Drivetrain
Rear Derailleur
Shimano GRX RX400, 10-speed
Front Derailleur
Shimano GRX RX400, braze-on
Shift Levers
Shimano GRX RX400 hydraulic brake levers, 2x10 speed mechanical shifting
Cassette
Shimano CS-HG50-10, 10-Speed 11-36t
Crank
Shimano GRX RX600, 46/30T
Bottom Bracket
Shimano threaded
Chain
KMC X10, 10-speed w/ reusable Missing Link™
Wheels
Tires
Specialized RoadSport, Flak Jacket protection, 700x35mm
Brakes
Brakes
Shimano GRX RX400, hydraulic disc
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebar
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Seat
Saddle
Body Geometry Bridge Saddle, steel rails
Seatpost
Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.5 mm | 1.5 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.55 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 589 mm | 598 mm | 608 mm | 615 mm | 626 mm | 641 mm | 656 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm |
| Stack | 526 mm | 542 mm | 558 mm | 575 mm | 596 mm | 615 mm | 632 mm |
| Reach | 354 mm | 362 mm | 371 mm | 380 mm | 389 mm | 398 mm | 407 mm |
| Top Tube Length | 501 mm | 518 mm | 535 mm | 551 mm | 567 mm | 581 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 363 mm | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71.25 ° | 71.75 ° | 71.75 ° | 71.75 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm | 213 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1005 mm | 1014 mm | 1024 mm | 1032 mm | 1043 mm | 1058 mm | 1073 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 677 mm | 700 | 720 mm | 760 mm | 786 mm | 805 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 142 cm | cm | 163 cm | 170 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 152 cm | cm | 170 cm | 178 cm | 180 cm | 188 cm | 196 cm |
About this model
Diverge Elite E5 completes the Specialized Diverge model. Specialized released 115 bikes variations of this model so far. You can easily view all of the Specialized Diverge bikes models from 2020, here.
Model range prices
Specialized Diverge E5 2020 is the most economical model, with a starting price of 1100$. Specialized S-Works Diverge – SRAM eTap AXS 2020 on the other hand costs 10000$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 1700$. Comparing this to the average Gravel bike price, we see that the price is 44.82% smaller.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Diverge Elite E5 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Diverge Elite E5 2020 bike is equipped with 700c wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Diverge Elite E5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
