Specialized Diverge Expert E5 EVO 2023
2023 Road
Estimate price |
2,600$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 20mm -
Fork Specialized Future Shock 1.5
-
Groupset GX Eagle, Rival -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized Diverge E5 Premium Aluminum, Future Shock suspension, 1x specific EVO geometry, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crank
SRAM Rival 1 Wide, 38T
Bottom Bracket
SRAM DUB BSA 68 Wide
Chain
SRAM GX Eagle, 12-speed
Wheels
Rims
Front: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples, Rear: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Tires
Front: Rhombus Pro, 2Bliss Ready, 700x42mm, Rear: Rhombus Pro, 2Bliss Ready, 700x42mm
Brakes
Brakes
Front: SRAM Level TLM, hydraulic disc, 160mm CenterLine rotor, Rear: SRAM Level TLM, hydraulic disc, 160mm CenterLine rotor
Cockpit
Stem
Future Stem, Comp
Handlebar
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
TranzX Dropper, 27.2mm, 90mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm |
| Front Center | 639 mm | 674 mm | 703 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 69 mm | 69 mm | 69 mm |
| Stack | 582 mm | 609 mm | 634 mm |
| Reach | 397 mm | 422 mm | 442 mm |
| Top Tube Length | 458 mm | 602 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 104 mm | 133 mm | 159 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1059 mm | 1094 mm | 1123 mm |
| Bottom Bracket Drop | 85 mm | 85 mm | 85 mm |
| Standover Height | 734 mm | 756 mm | 776 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Diverge Expert E5 EVO completes the Specialized Diverge Evo model. Specialized launched 2 bikes of this model so far. Take a sneak peek at all Specialized Diverge Evo bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Specialized released this model in 2023, its price was 2600$. Comparing the average cost of a Gravel bike to this one, you will see that Diverge Expert E5 EVO price is 5.61% more expensive.

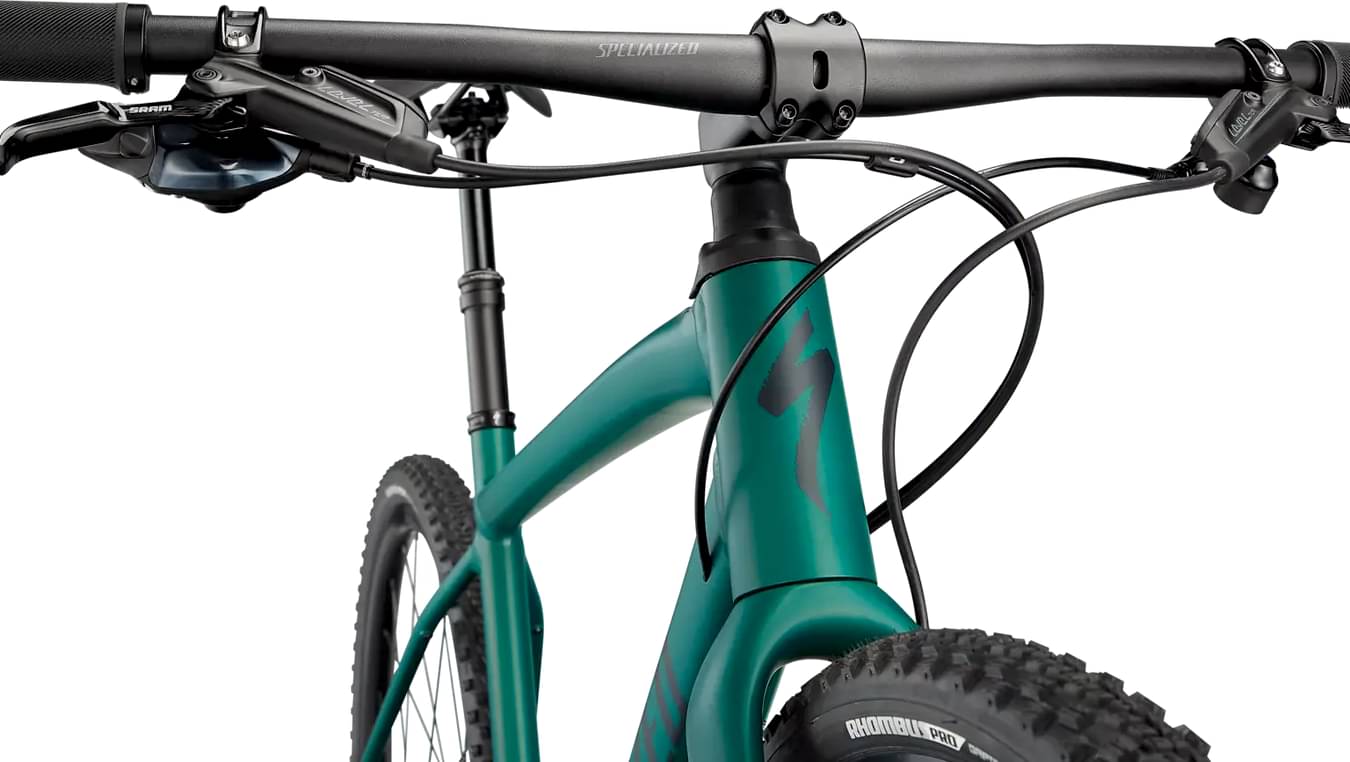

Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Specialized Future Shock 1.5 model. The travel on this model is 20mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Diverge Expert E5 EVO are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Diverge Expert E5 EVO comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.

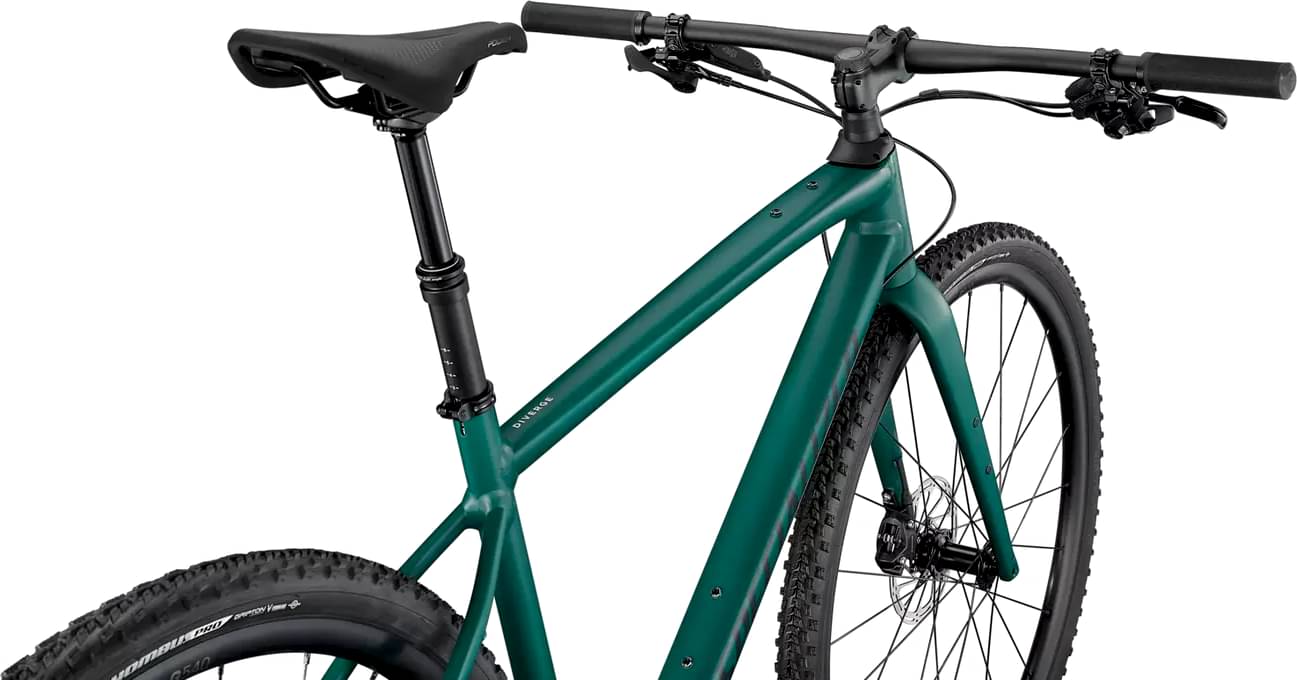

Dropper post
The Specialized model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
