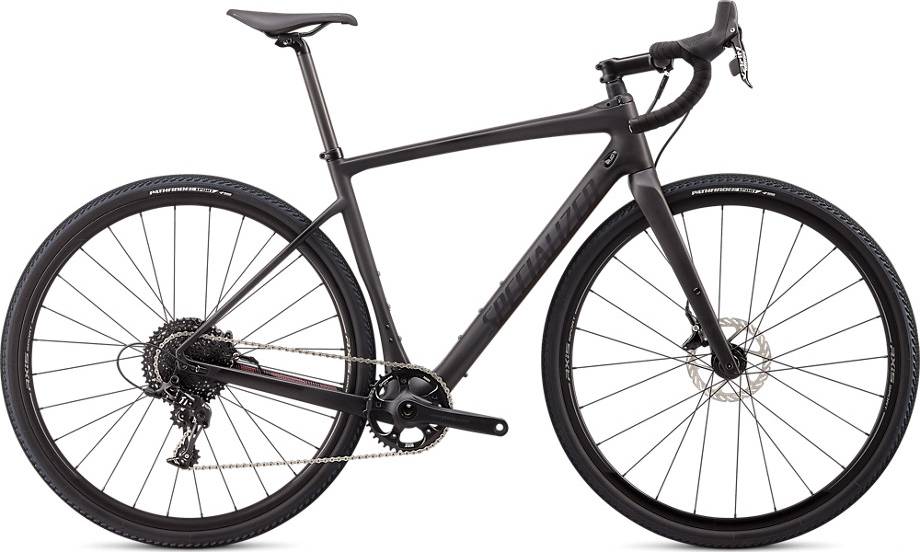

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex 1, Praxis -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
152cm - 158cm
52cm
163cm - 171cm
54cm
169cm - 178cm
56cm
175cm - 181cm
58cm
179cm - 189cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized FACT 9r carbon, Open Road Geometry, 12x142mm thru-axle, Future Shock Progressive suspension, 20mm of travel, flat-mount disc, BB386
Suspension Fork
Specialized FACT carbon, flat-mount disc, 12x100mm thru-axle
Drivetrain
Rear Derailleur
SRAM Apex 1, long cage, 11-speed
Shift Levers
SRAM Apex 1x HRD
Cassette
Sunrace, 11-speed, alloy spider, 11-42t
Crank
Praxis Alba 1x, 40T
Bottom Bracket
Praxis, PF30
Chain
KMC X11 EL, 11-speed
Pedals
Specialized Dirt
Wheels
Rims
Axis Sport Disc
Tires
Pathfinder Sport, 700x38c
Brakes
Brakes
SRAM Apex, hydraulic disc, flat-mount caliper, 160mm rotor
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebar
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat
Saddle
Body Geometry Power Sport, steel rails
Seatpost
Carbon, single-bolt, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.58 mm | 1.61 mm | 1.65 mm | 1.68 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 593 mm | 599 mm | 597 mm | 604 mm | 618 mm | 629 mm |
| Rake | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 62 mm | 62 mm | 58 mm | 58 mm | 56 mm |
| Stack | 574 mm | 579 mm | 597 mm | 618 mm | 644 mm | 667 mm |
| Reach | 365 mm | 372 mm | 378 mm | 384 mm | 390 mm | 397 mm |
| Top Tube Length | 529 mm | 537 mm | 554 mm | 566 mm | 580 mm | 594 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 440 mm | 473 mm | 500 mm | 525 mm | 555 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.9 ° | 72.5 ° | 72.5 ° | 72.8 ° |
| Head Tube Length | 90 mm | 95 mm | 108 mm | 128 mm | 155 mm | 178 mm |
| Chainstay Length | 424 mm | 424 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1002 mm | 1009 mm | 1009 mm | 1016 mm | 1030 mm | 1041 mm |
| Bottom Bracket Drop | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Standover Height | 709 mm | 731 mm | 757 mm | 781 mm | 806 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 163 cm | 169 cm | 175 cm | 179 cm | 187 cm |
| Rider Max Height | 158 cm | 171 cm | 178 cm | 181 cm | 189 cm | 196 cm |
About this model
Diverge X1 is part of the Specialized Diverge model. Specialized launched 115 bikes of this model so far. You can easily view all of the Specialized Diverge bikes models from 2020, here.
Model range prices
Specialized Diverge E5 2020 is the most economical model, with a starting price of 1100$. Specialized S-Works Diverge – SRAM eTap AXS 2020 on the other hand costs 10000$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2500$. In conclusion, this bike price is 1.54% more expensive than the price of the average Gravel bike.
Diverge X1 components
Fork material
Diverge X1 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Diverge X1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
