Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork X Fusion
-
Groupset X9, X7 -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 aluminum, 650b EVO geometry, tapered headtube, PF30 BB, ISCG ‘05 mount, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 180mm travel
Suspension Fork
Custom X-Fusion Metric Air R, 650b, air spring, tapered steerer, rebound adj. 20mm thru-axle, 180mm travel
Rear Shock
Custom FOX VAN R, 650b EVO tune, coil w/ piggy back, rebound adj. 8.75x2.5"", S: 450, M: 500, L: 550
Drivetrain
Rear Derailleur
SRAM X9 Type 2, 10-speed, mid cage
Shift Levers
SRAM X7, 10-speed, w/ MatchMaker clamp
Cassette
SRAM PG 1030, 10-speed, 11-36
Crank
SRAM X1 1000, X SYNC ring, PF30, 32T, 94mm BCD spider
Bottom Bracket
SRAM, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 36h
Rear Hub
Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 36h
Spokes
Stainless, 14g
Brakes
Brakes
Avid DB3, hydraulic disc, steel-backed metallic pads, 200mm Centerline rotor
Brake Levers
Avid DB3, w/ reach adjust
Cockpit
Stem
SRAM Hussefelt, 1-1/8 steerer clamp
Handlebar
Specialized Demo, low rise, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized alloy, single bolt, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.33 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Front Center | 793 mm | 759 mm | 793 mm |
| Rake | 92 mm | 39 mm | 39 mm |
| Trail | 68 mm | 126 mm | 126 mm |
| Stack | 592 mm | 592 mm | 601 mm |
| Reach | 396 mm | 421 mm | 451 mm |
| Top Tube Length | 537 mm | 562 mm | 595 mm |
| Seat Tube Angle | 76.8 ° | 76.8 ° | 76.8 ° |
| Seat Tube Length | 391 mm | 414 mm | 454 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm |
| Wheelbase | 1207 mm | 1173 mm | 1207 mm |
| Bottom Bracket Drop | 2 mm | 2 mm | 2 mm |
| Standover Height | 739 mm | 748 mm | 748 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

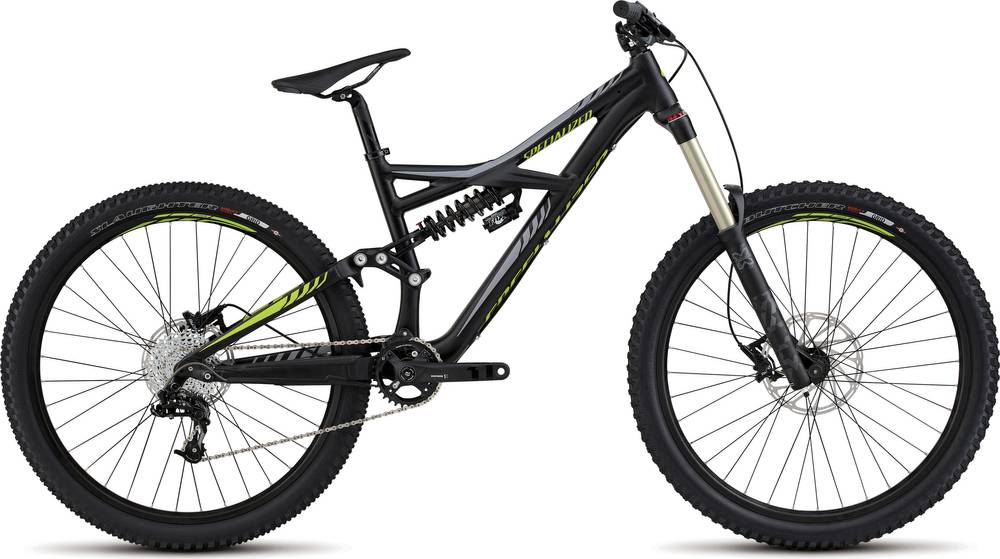

Enduro EVO 650b is part of the Specialized Enduro model. Specialized launched 117 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Specialized Enduro EVO 650b 2015 bike is equipped with the X Fusion fork, and has 180mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Custom FOX VAN R, with a travel distance of 180mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Enduro EVO 650b model has 27.5″ wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Enduro EVO 650b comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
