Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Rear 160mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

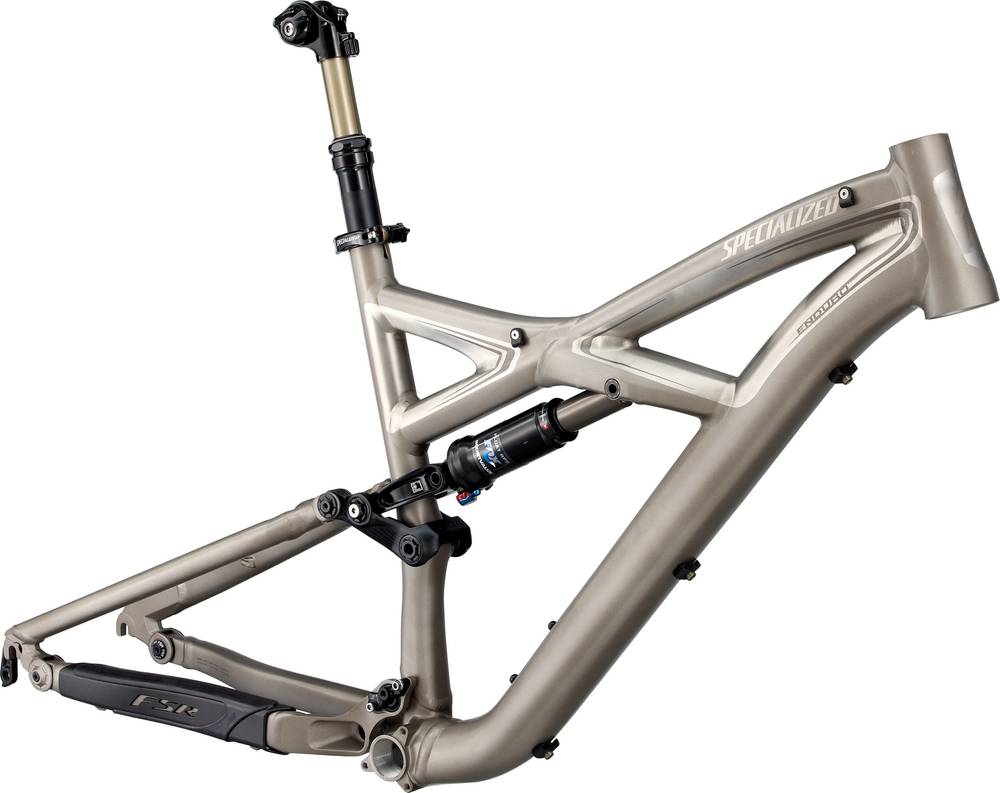

Enduro M5 alloy, fully manipulated frame w/ ORE TT and DT, forged HT, sealed cartridge bearing pivots, ISCG mount, replaceable derailleur hanger, 160mm travel
Rear Shock
Fox RP2BV with Boost Valve for Enduro. Ext reb and ProPedal
Wheels
Front Hub
NA
Cockpit
Headset
1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower cartridge bearing
Seat
Seatpost
Specialized Command Post, 3 position, 100mm Adjustable height, Remote Operated, Single bolt head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 580 mm | 590 mm | 608 mm | 626 mm |
| Reach | 407 mm | 434 mm | 460 mm | 480 mm |
| Top Tube Length | 563 mm | 593 mm | 623 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 444 mm | 467 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1123 mm | 1154 mm | 1188 mm | 1216 mm |
| Bottom Bracket Drop | -7 mm | -7 mm | -7 mm | -7 mm |
| Standover Height | 759 mm | 764 mm | 776 mm | 804 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
EnduroSL Expert Frame is part of the Specialized Endurosl model. 3 frames variations carry this model name so far. You can easily view all of the Specialized Endurosl frames models from 2010, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, this doesn’t mean that if you spend less money on an Enduro frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
EnduroSL Expert Frame components
Rear Shock
From the factory, it comes with the Fox RP2BV with Boost Valve for rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Specialized EnduroSL Expert Frame frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
