Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Rear 100mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 alloy, 29"" geometry, fully manipulated frame w/ ORE DT/TT, gussetless TT S/M, tapered HT, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
Rear Shock
Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length
Wheels
Rear Hub
Specialized Hi Lo 142+ disc, double sealed cartridge bearing, RWS, 32h
Cockpit
Headset
1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
Seat
Seatpost
Thomson Elite Setback w/ 12 degree clamp, 410mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Stack | 580 mm | 599 mm | 608 mm | 627 mm |
| Reach | 380 mm | 409 mm | 432 mm | 452 mm |
| Top Tube Length | 548 mm | 583 mm | 609 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 424 mm | 463 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1069 mm | 1103 mm | 1130 mm | 1157 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 749 mm | 760 mm | 769 mm | 784 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

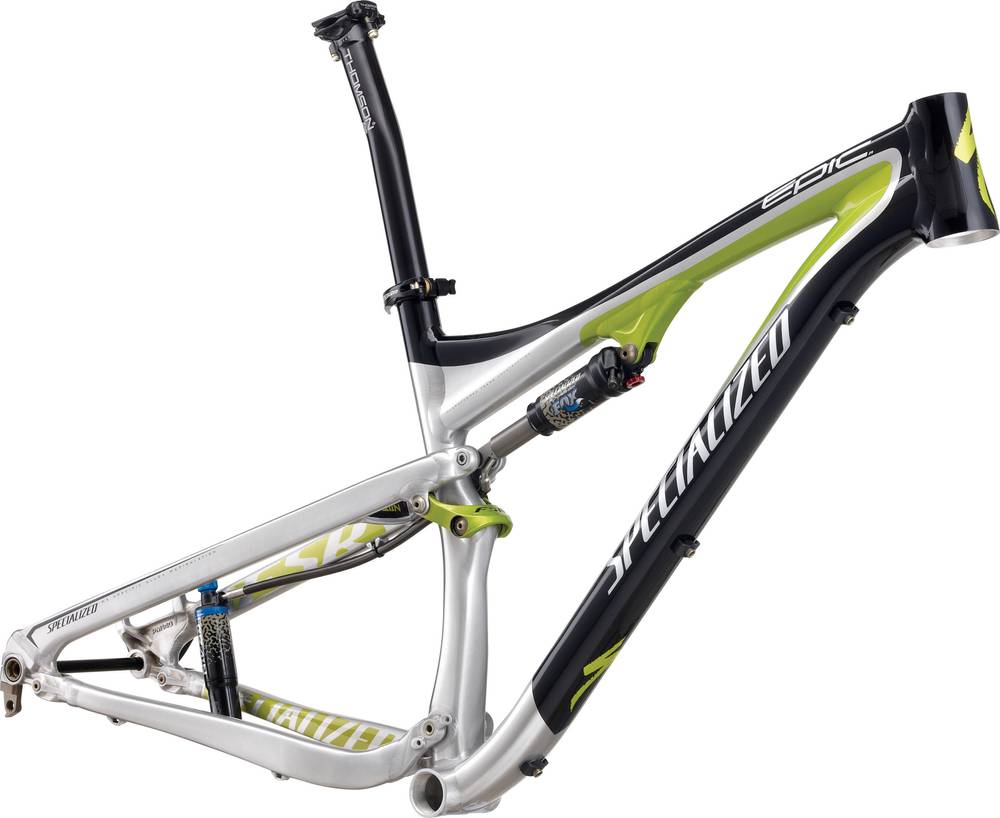

Epic 29er Frameset completes the Specialized Epic model. There are 161 frames that carry this model name. Take a sneak peek at all Specialized Epic frames models from 2011, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry frames
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Epic 29er Frameset components
Rear Shock
As for the rear shock, this frame has the Fox/Specialized remote Mini-Brain model, with a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Specialized Epic 29er Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
