Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox
-
Groupset X9, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, IS construction, M5 aluminum rear triangle. sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger
Suspension Fork
Fox F100 RL, 100mm travel, air spring, compression and rebound adj. w/ LO, alloy steerer
Rear Shock
Fox/SBC remote Mini-Brain, inertia valve, w/ Brain fade adjust
Drivetrain
Rear Derailleur
SRAM X-9, 9-speed, mid cage
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Shift Levers
SRAM X-7, aluminum trigger
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M542, S: 170mm, others: 175mm
Bottom Bracket
Custom Shimano BB-91, OS, press-in bearing
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
None
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom Shimano M525 SL, alloy QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss 1.8mm stainless
Tires
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Elixir R SL, alloy backed organic pads, S/M: 160mm, L/XL: 185mm rotor
Brake Levers
Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
Cockpit
Stem
3D forged alloy, adjustable rise, 31.8mm clamp
Handlebar
Specialized XC low rise bar, 7050 butted alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
Headset
1-1/8"" Threadless, Campy style upper and lower cartridge bearing
Seat
Saddle
Specialized Phenom, hollow Cr-Mo rails, thin foam, S/M: 130mm, L/XL: 143mm
Seatpost
2014 butted alloy, single bolt setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Stack | 541 mm | 561 mm | 579 mm | 598 mm |
| Reach | 394 mm | 423 mm | 444 mm | 464 mm |
| Top Tube Length | 548 mm | 583 mm | 609 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 444 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 126 mm | 144 mm | 154 mm | 184 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1055 mm | 1092 mm | 1120 mm | 1147 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 720 mm | 741 mm | 751 mm | 769 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

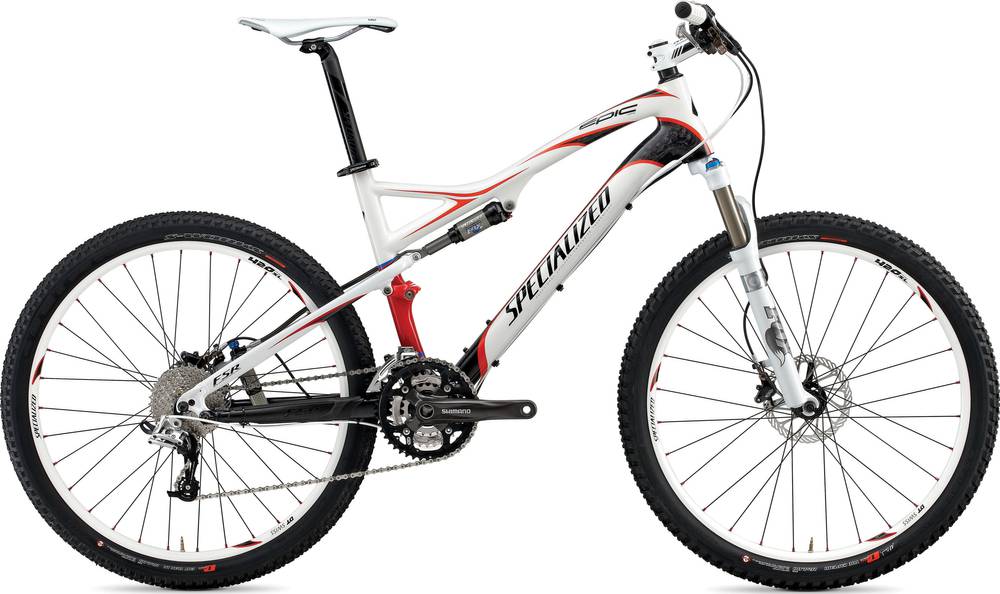

Epic Comp Carbon is a Specialized Epic model. Specialized launched 161 bikes of this model so far. Take a sneak peek at all Specialized Epic bikes models from 2010, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Specialized Epic Comp Carbon 2010 bike is equipped with the Fox fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
From the factory, it comes with the Fox/SBC remote Mini-Brain rear shock model, which has a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Epic Comp Carbon bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
