Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset X0, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Epic FSR M5 alloy, fully manipulated frame w/ ORE DT/TT, sealed cartridge bearings, 100mm travel, replaceable derailleur hanger
Suspension Fork
RockShox SID Race for Specialized, 100mm travel, air spring, rebound and floodgate compression adj.w/ LO, alloy steerer
Rear Shock
Fox/SBC remote Mini-Brain, inertia valve, w/ Brain fade adjust
Drivetrain
Rear Derailleur
SRAM X-0, 9-speed, mid cage
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Shift Levers
SRAM X-9 aluminum trigger
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M762 XT, 2pc. S: 170mm, others: 175mm
Bottom Bracket
Custom Shimano, outboard bearing
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
None
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, oversized 28mm end caps, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom DT Swiss 330SL w/ alloy freehub, QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss Competition 1.8/1.6mm stainless
Tires
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Elixir CR SL, alloy backed semi-met pads, S/M: 160mm, L/XL: 185mm rotor
Brake Levers
Custom Avid Elixir CR SL Hydraulic, carbon lever blade, tool-less adj. reach and pad contact
Cockpit
Stem
3D forged alloy, adjustable rise, 31.8mm clamp
Handlebar
Specialized XC low rise bar, 7050 butted alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
Headset
1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
Seat
Saddle
Specialized Phenom, hollow Cr-Mo rails, thin foam, S/M: 130mm, L/XL: 143mm
Seatpost
2014 butted alloy, single bolt setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Stack | 541 mm | 561 mm | 579 mm | 598 mm |
| Reach | 394 mm | 423 mm | 444 mm | 464 mm |
| Top Tube Length | 548 mm | 583 mm | 609 mm | 635 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 444 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1055 mm | 1092 mm | 1120 mm | 1147 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 723 mm | 745 mm | 753 mm | 758 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

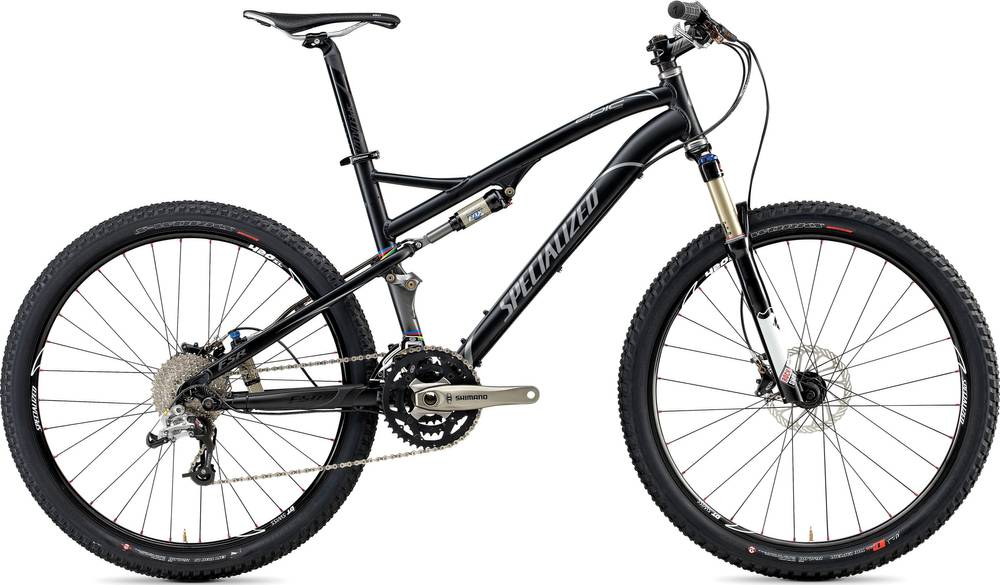

Epic Expert completes the Specialized Epic model. Specialized released 161 bikes variations of this model so far. Take a sneak peek at all Specialized Epic bikes models from 2010, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Epic Expert components
Fork
The Epic Expert comes factory-installed with the RockShox SID fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The shock that’s installed on this bike is Fox/SBC remote Mini-Brain, with a travel distance of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Epic Expert bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Epic Expert is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Epic Expert comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
