Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset X0, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, IS construction, M5 aluminum rear triangle. sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger
Suspension Fork
RockShox SID Race, 100mm travel, air spring, motion control damper, external rebound and external floodgate compression adj.w/ LO, alloy steerer
Rear Shock
Specialized AFR remote mini, BRAIN inertia valve w/ BRAIN fade and rebound adj.
Drivetrain
Rear Derailleur
SRAM X-0, 9-speed, mid cage
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Shift Levers
SRAM X-9, aluminum trigger, 9-speed
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M762, 2pc. S: 170mm, others: 175mm
Bottom Bracket
Shimano M762
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
None
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, Oversized end caps, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom DT Swiss 370 w/ DT RWS QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss Competition 1.8/1.6mm, stainless, black, alloy nipples
Tires
S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Elixir R Carbon SL, Carbon lever, SS hardware, alloy backed organic pads, S/M: 160mm, L/XL: 185mm rotor
Brake Levers
Custom Avid Elixir R Carbon SL Hydraulic, tool-less adj. reach
Cockpit
Stem
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
Handlebar
Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
Grips
Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL)
Seat
Saddle
Specialized Phenom, hollow Cr-Mo rails, thin foam, S/M: 130mm, L/XL: 143mm
Seatpost
2014 butted alloy, single-bolt setback, S/M: 350, L/XL: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Top Tube Length | 548 mm | 583 mm | 609 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 444 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 126 mm | 144 mm | 154 mm | 184 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1055 mm | 1092 mm | 1120 mm | 1147 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 720 mm | 741 mm | 751 mm | 769 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

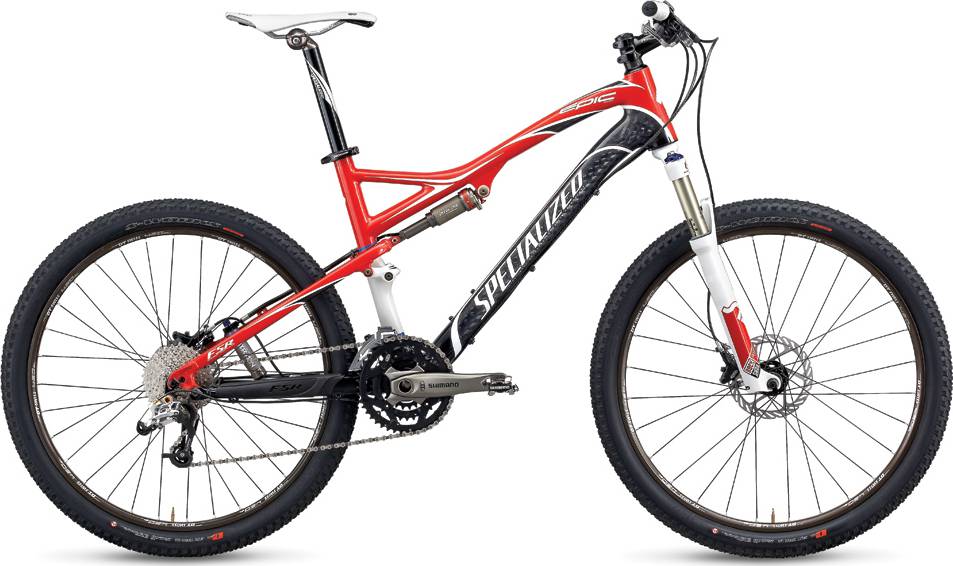

About this model
Epic Expert Carbon is a Specialized Epic model. Specialized released 161 bikes variations of this model so far. Take a sneak peek at all Specialized Epic bikes models from 2009, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Epic Expert Carbon components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this bike has the Specialized AFR remote mini model, with a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Epic Expert Carbon are the 26″ aluminum type. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Epic Expert Carbon comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
