Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 95mm -
Travel Rear 95mm -
Fork RockShox SID
-
Groupset X01, XX1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 10m carbon front triangle, SWAT EMT tool cradle, 29"" World Cup geometry, FACT IS construction, FACT carbon World Cup mega-chainstays, M5 seatstays, single ring only, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 95mm
Suspension Fork
Custom RockShox SID 29 Brain, inertia valve damper, Solo Air spring, tapered alloy steerer, bottom-mount Brain Fade and rebound adj. 15mm thru-axle, 95mm travel
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve w/ Aramid hose, Brain Fade adjust, 200x48mm, 95mm travel
Drivetrain
Rear Derailleur
SRAM X01 Type 2, 11-speed, mid cage
Shift Levers
SRAM X01, 11-speed, trigger
Cassette
SRAM X01, 11-speed, 10-42
Crank
Custom SRAM carbon S-2200, custom SRAM XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
Bottom Bracket
SRAM PF30, OS press-in bearings, sealed cartridge
Chain
SRAM XX1, 11-speed, hollow plates/pins, PowerLink
Wheels
Front Hub
Roval Control Carbon 29, 15mm thru-axle, 32h
Rear Hub
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
Rims
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
Spokes
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
Tires
S-Works Fast Trak, 2Bliss Ready, 29x2.0"", foldable aramid bead, 120 TPI
Brakes
Brakes
Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, S/M: 160mm, L/XL:180mm rotor
Brake Levers
Magura MTS, carbon master cylinder, alloy lever blade, hollow lever pivot, reach adj.
Cockpit
Stem
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Handlebar
Specialized XC, flat bar, 2014 butted alloy, 700mm wide, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized 2014 butted alloy, single bolt setback, 27.2mm, S: 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.411 mm | 1.37 mm | 1.355 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 637 mm | 667 mm | 695 mm | 721 mm |
| Rake | 48 mm | 48 mm | 48 mm | 49 mm |
| Trail | 78 mm | 78 mm | 78 mm | 77 mm |
| Stack | 583 mm | 597 mm | 611 mm | 630 mm |
| Reach | 398 mm | 423 mm | 446 mm | 465 mm |
| Top Tube Length | 562 mm | 592 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1073 mm | 1103 mm | 1131 mm | 1157 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

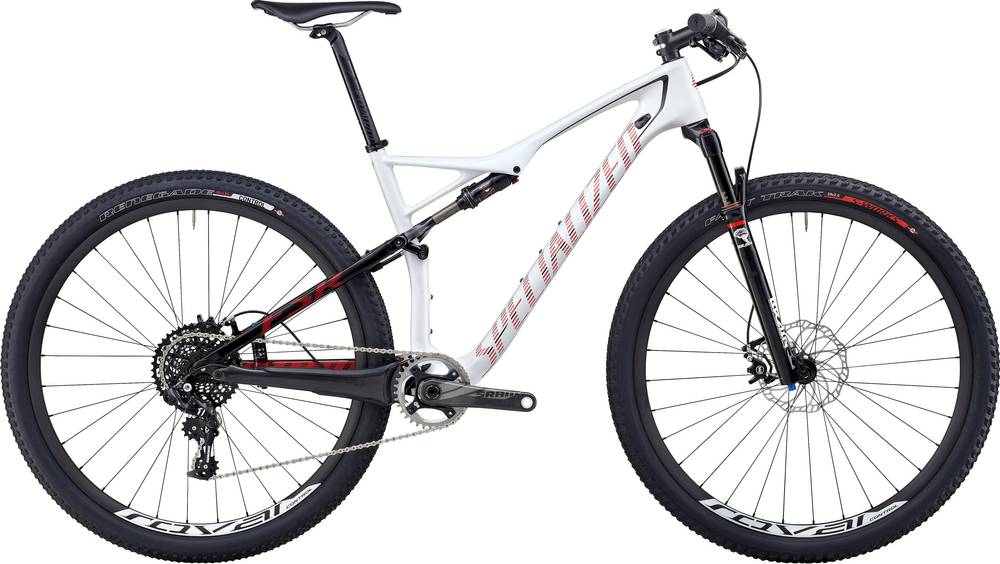

Epic Expert Carbon World Cup is a Specialized Epic model. Specialized launched 161 bikes of this model so far. Take a sneak peek at all Specialized Epic bikes models from 2014, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Epic Expert Carbon World Cup components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 95mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Specialized Epic Expert Carbon World Cup bike has the FOX/Specialized remote Mini-Brain w/ AUTOSAG model installed, and has a travel of 95mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Epic Expert Carbon World Cup model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Epic Expert Carbon World Cup has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Epic Expert Carbon World Cup comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
