Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 95mm -
Fork RockShox SID
-
Groupset X1, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m, carbon front triangle, M5 alloy rear end, XC Geometry, MFS chainstay, PF30 BB, carbon headset cups, 12x142mm rear spacing, internal cable routing, 95mm of travel, SWAT™ tool cradle
Suspension Fork
Custom RockShox SID w/Brain, Position Sensitive damper, bottom-mount Brain Fade adjust, rebound adjust, Solo Air spring, tapered alloy crown/steerer, 100x15mm Maxle Stealth thru-axle, 100mm of travel, 51mm offset
Rear Shock
Fox/SBC Epic remote Mini Brain w/Auto Sag. Brain Fade adjust I-Valve, 200 x 48mm
Drivetrain
Rear Derailleur
SRAM X1 Type 2.1, 11-speed
Shift Levers
SRAM X1, 11-speed, trigger
Cassette
SRAM XG-1150, 11-speed, 10-42t
Crank
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 49mm chainline, 32T
Bottom Bracket
PF30
Chain
SRAM PC-1130, 11-speed w/PowerLink
Wheels
Front Hub
Roval Control, sealed bearings, 15x100mm thru-axle, 32h
Rear Hub
Roval Control, DT Swiss internals, 36T engagement, XD driver body, 12x142mm, 32h
Rims
Roval Control, hookless alloy, 21mm inner width, 32h, tubeless ready
Spokes
DT Swiss Revolution
Tires
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
Shimano Deore SLX M7000, hydraulic disc, metallic pad, 180/160mm rotor
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized Mini-rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm width, 31.8mm clamp
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized, alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.411 mm | 1.37 mm | 1.355 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 633 mm | 661 mm | 691 mm | 717 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 583 mm | 597 mm | 611 mm | 630 mm |
| Reach | 398 mm | 423 mm | 446 mm | 465 mm |
| Top Tube Length | 562 mm | 592 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.75 ° | 70.75 ° | 70.75 ° | 70.75 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1073 mm | 1103 mm | 1131 mm | 1157 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

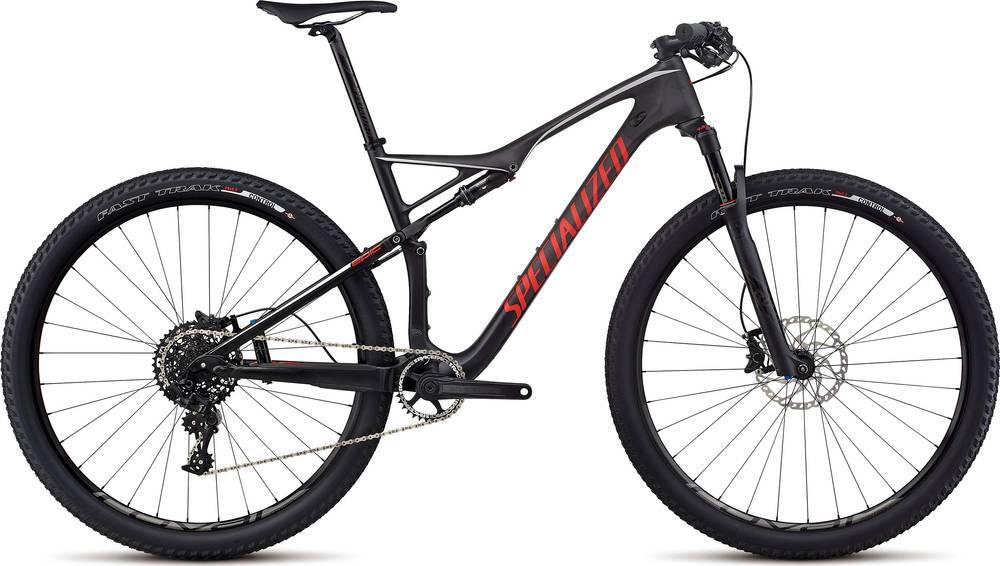

Model Overview
Epic FSR Expert Carbon World Cup belongs to the Specialized Epic model. Specialized released 161 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Epic FSR Expert Carbon World Cup components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the Fox/SBC Epic remote Mini Brain w/Auto model, with a travel of 95mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Epic FSR Expert Carbon World Cup model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
