Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 95mm -
Fork RockShox SID
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 10m, full carbon frame, XC Geometry, MFS chainstay, PF30 BB, carbon headset cups, 12x142mm rear spacing, internal cable routing, 95mm of travel, SWAT™ tool cradle
Suspension Fork
Custom RockShox SID w/Brain, Position Sensitive damper, bottom-mount Brain Fade adjust, rebound adjust, Solo Air spring, tapered alloy crown/steerer, 100x15mm Maxle Stealth thru-axle, 100mm of travel, 51mm offset
Rear Shock
Fox/SBC Epic remote Mini Brain w/Auto Sag and Spike Valve. Brain Fade adjust I-Valve, 200 x 48mm, with Kashima Coating
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM X01 Eagle, 12-speed, trigger
Cassette
SRAM XG-1295, 12-speed, 10-50t
Crank
Custom SRAM X1 Eagle, alloy, 30mm spindle, 49mm chainline, 32T, SRAM X-Sync, direct mount, 34T
Bottom Bracket
PF30, press-fit
Chain
SRAM X01 Eagle, silver, 12-speed w/PowerLink
Pedals
Resin Test Ride with toe clips, CEN std.
Wheels
Front Hub
Roval Control, sealed bearings, 15x100mm thru-axle, 32h
Rear Hub
Roval Control, DT Swiss internals, 36T engagement, XD driver body, 12x142mm, 32h
Rims
Roval Control Carbon 29, hookless carbon, 22mm inner width, 32h, tubeless ready
Spokes
DT Swiss Revolution
Tires
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
Shimano XT M8000, hydraulic disc, post mount, metallic pads, 180/160mm rotors
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized Mini-rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm width, 31.8mm clamp
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Phenom Expert, Adaptive Edge design, hollow titanium rails, 143mm
Seatpost
Specialized, alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.411 mm | 1.37 mm | 1.355 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 633 mm | 661 mm | 691 mm | 717 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 583 mm | 597 mm | 611 mm | 630 mm |
| Reach | 398 mm | 423 mm | 446 mm | 465 mm |
| Top Tube Length | 562 mm | 592 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.75 ° | 70.75 ° | 70.75 ° | 70.75 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1073 mm | 1103 mm | 1131 mm | 1157 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

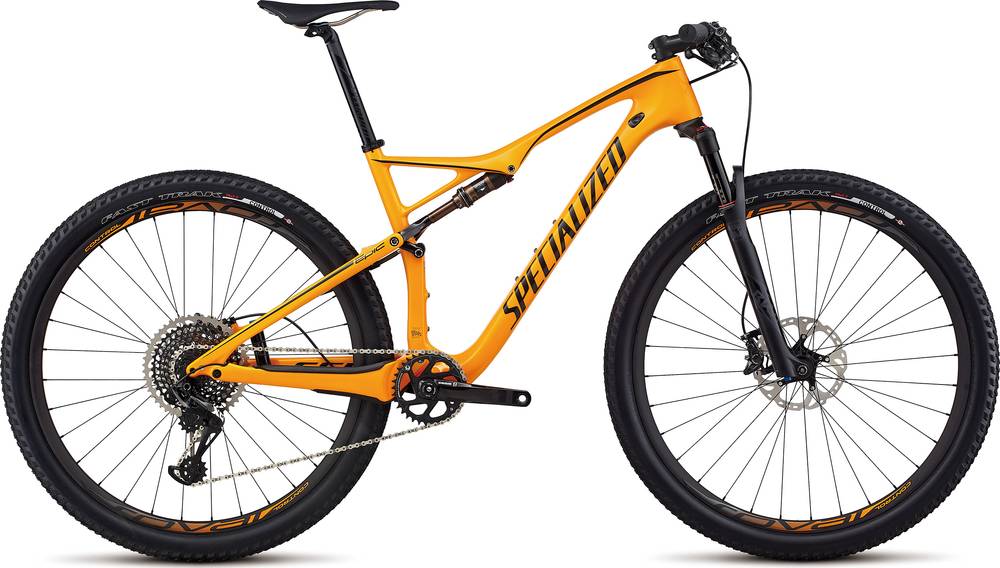

Model Overview
Epic FSR Pro Carbon World Cup belongs to the Specialized Epic model. Specialized released 161 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Specialized Epic FSR Pro Carbon World Cup 2017 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The Epic FSR Pro Carbon World Cup has a rear shock with a travel of 95mm. The model Fox/SBC Epic remote Mini Brain w/Auto is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Epic FSR Pro Carbon World Cup 2017 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
