Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset X0, SRAM -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 10m carbon front triangle, SWAT EMT tool cradle, 29"" geometry, FACT IS construction, FACT carbon chainstays, M5 seatstays, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm
Suspension Fork
Custom RockShox SID 29 Brain, inertia valve damper, Solo Air spring, tapered alloy steerer, top-mount Brain Fade and rebound adj. 15mm thru-axle, 100mm travel
Rear Shock
FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve w/ Aramid hose, Brain Fade adjust, 205x53mm, 100mm travel
Drivetrain
Rear Derailleur
SRAM X0 Type 2, 10-speed, mid cage
Front Derailleur
Custom SRAM X0, 10-speed, high direct-mount
Shift Levers
SRAM X0, 10-speed, trigger
Cassette
SRAM PG-1050, 10-speed, 11-36
Crank
Custom SRAM carbon S-2200, 10-speed XC double, PF30 spindle, removable spider, S: 170mm, Others: 175mm
Bottom Bracket
SRAM PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1051, 10-speed, PowerLink
Wheels
Front Hub
Roval Control Carbon 29, 15mm thru-axle, 32h
Rear Hub
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
Rims
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
Spokes
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
Tires
S-Works Fast Trak, 2Bliss Ready, 29x2.0"", foldable aramid bead, 120 TPI
Brakes
Brakes
Magura MT6, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, S/M: 160mm, L/XL: 180mm rotor
Brake Levers
Magura MT6, carbon master cylinder, alloy lever blade, hollow lever pivot, reach adj.
Cockpit
Stem
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Handlebar
S-Works XC, flat bar, carbon, 700mm wide, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Phenom Expert, hollow TI rails, 143mm
Seatpost
Specialized 2014 butted alloy, single bolt setback, 27.2mm, S: 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.494 mm | 1.438 mm | 1.395 mm | 1.372 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 637 mm | 667 mm | 695 mm | 723 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 84 mm | 84 mm | 84 mm | 83 mm |
| Stack | 587 mm | 601 mm | 615 mm | 634 mm |
| Reach | 393 mm | 418 mm | 441 mm | 462 mm |
| Top Tube Length | 564 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 400 mm | 434 mm | 470 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1082 mm | 1112 mm | 1140 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 770 mm | 774 mm | 780 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

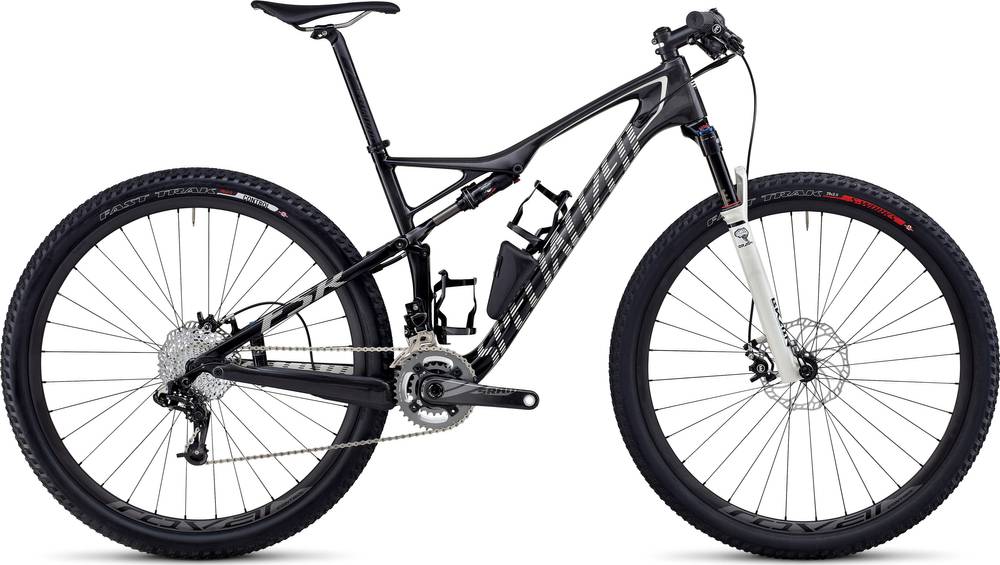

Epic Marathon Carbon 29 is a Specialized Epic model. 161 bikes variations carry this model name so far. You can easily view all of the Specialized Epic bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
As for the rear shock, this bike has the FOX/Specialized remote Mini-Brain w/ AUTOSAG model, with a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Specialized Epic Marathon Carbon 29 2014, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Epic Marathon Carbon 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
