Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset e*thirteen TRS Plus -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M4 Premium Aluminum, fully butted w/ smooth welds, tapered headtube, post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger
Suspension Fork
Specialized FACT carbon, full monocoque, tapered steerer, 135mm hub spacing
Drivetrain
Crank
Custom e.thirteen, TRS+, PF30, 100mm spindle, w/ BB
Bottom Bracket
e.thirteen, PF30, included w/ crankset
Cockpit
Headset
1-1/8"" upper, 1-1/2"" lower, Campy style, integrated sealed cartridge bearings, split crown race, 3.8mm cone spacer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 635 mm | 657 mm | 680 mm | 706 mm |
| Rake | 46 mm | 40 mm | 41 mm | 41 mm |
| Trail | 73 mm | 79 mm | 78 mm | 78 mm |
| Stack | 584 mm | 594 mm | 609 mm | 623 mm |
| Reach | 389 mm | 414 mm | 431 mm | 452 mm |
| Top Tube Length | 570 mm | 597 mm | 619 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1077 mm | 1099 mm | 1122 mm | 1148 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 751 mm | 787 mm | 814 mm | 843 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

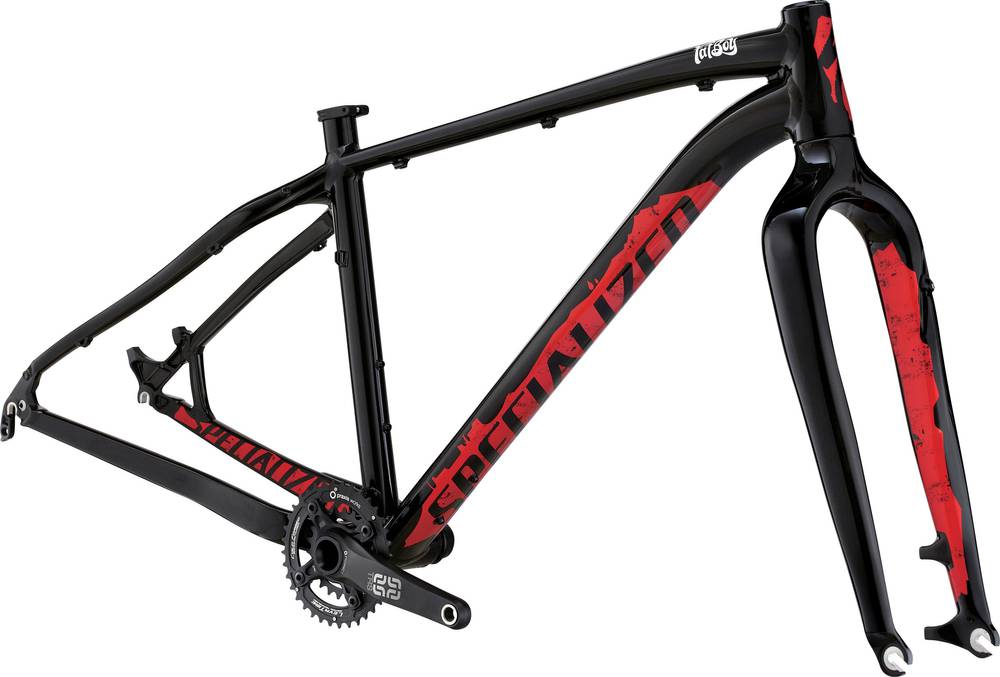

Fatboy Frameset is a Specialized Fatboy model. Specialized released 31 frames variations of this model so far. Take a sneak peek at all Specialized Fatboy frames models from 2015, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike frames average price
Our math shows that the average cost of a dependable Fatbike frame is 1277$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
Fatboy Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
