Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset X5 -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M4 aluminum, fully-butted tubing w/smooth welds, tapered head tube, post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger
Suspension Fork
Specialized, alloy, air-formed legs, tapered alloy steererer, 135mm hub spacing, open quick-release dropouts
Drivetrain
Rear Derailleur
SRAM X5, long cage, 10-speed
Front Derailleur
SRAM X5, low direct-mount, 2x10
Shift Levers
SRAM X5, 10-speed, trigger
Cassette
Sunrace, 10-speed, 11-36t
Crank
Custom Samox, forged alloy, 2x10, Cr-Mo spindle, 104mm BCD spider
Bottom Bracket
BB30, sealed cartridge bearings
Chain
KMC X10EPT Anti-Rust, 10-speed, w/reusable MissingLink
Pedals
Specialized Dirt Pedals
Wheels
Front Hub
Specialized Stout XC 135, disc alloy, loose ball bearings, bolt-on axle, 32h
Rear Hub
Specialized disc, sealed cartridge bearings, alloy body cassette, 10mm steel QR, 32h
Rims
Specialized 26"" disc front, 21mm depth, 86mm internal width, 32h
Spokes
Stainless, black, 14g
Tires
Ground Control Fat, 60 TPI, wire bead, 26x4.6""
Brakes
Brakes
Tektro Aries, mechanical disc, organic pads, 160mm rotor
Cockpit
Stem
Ahead 3D-forged alloy, 31.8mm clamp, 6-degree rise
Handlebar
Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
Grips
Specialized MTB Grip, lock-on
Seat
Saddle
Body Geometry Henge Sport, steel rails, 143mm
Seatpost
Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 634 mm | 663 mm | 685 mm | 711 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 584 mm | 594 mm | 608 mm | 622 mm |
| Reach | 389 mm | 414 mm | 431 mm | 452 mm |
| Top Tube Length | 570 mm | 597 mm | 619 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1077 mm | 1105 mm | 1127 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 748 mm | 780 mm | 806 mm | 834 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

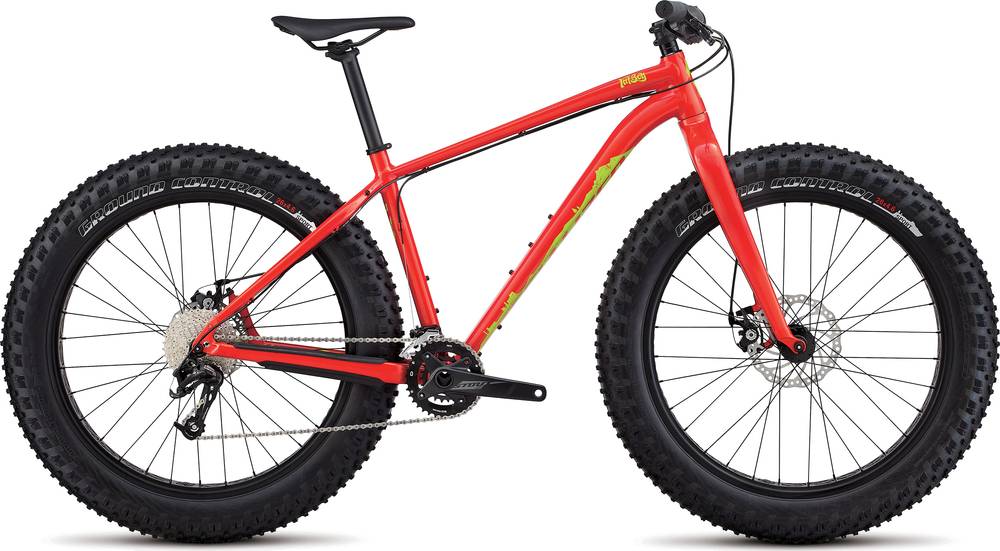

About this model
Fatboy SE is a Specialized Fatboy model. 31 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike bikes
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Fatboy SE components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Fatboy SE are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fatboy SE has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Fatboy SE comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
