Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FSR XC M4 tubing, rocker design, bolt on cable guides, 120mm travel, sealed cartridge pivot bearings, disc only, replaceable rear derailleur hanger
Suspension Fork
RockShox Recon SLite Solo Air, 120mm travel, alloy steerer, Turn Key damper, rebound adj. w/ LO, air spring
Rear Shock
X Fusion 02RC, Custom tuned for Specialized, rebound adj. compression adjust w/lock-out, 7.5x1.75"", 2 bearing upper shock mount
Drivetrain
Rear Derailleur
Shimano RD-M772 Deore XT Shadow, long cage
Front Derailleur
Shimano FD-M590 Deore, 34.9mm clamp, top swing, bottom pull
Shift Levers
Shimano SL-M531 Deore, trigger
Cassette
Shimano HG50, 9-speed, 11-34t
Crank
Shimano FC-M521, Hollowtech, Octalink spline, replacable rings w/ alloy outer, S: 170mm, others: 175mm
Bottom Bracket
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
Chain
KMC X9 w/ reuseable Missing Link
Pedals
None
Wheels
Front Hub
Forged alloy, hi/low flange, double sealed, ground race, machined disc mount, 32h, QR
Rear Hub
Disc, double sealed cartridge bearing, high/low flange w/ OS contact side, 32h, QR
Rims
Custom DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
Spokes
1.8mm (15g) stainless
Tires
Specialized The Captain Sport, 26.2.2"", 60 TPI, wire bead
Brakes
Brakes
Custom Avid Elixir 4, full hydraulic, alloy backed pads, Clean Sweep rotor, S/M: 185mm, L/XL: 203mm
Brake Levers
Avid Elixir 4 Hydraulic
Cockpit
Stem
3D forged alloy, 4-bolt, 31.8mm, adjustable rise
Handlebar
XC low rise,6061 butted alloy, 660mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized waffle lock on grip (S/M) Specialized thick lock on grip (L/XL)
Headset
1-1/8"" threadless, loose ball
Seat
Saddle
Specialized Rival, Body Geometry, 143mm width, front and rear bumpers
Seatpost
6061 alloy, 2-bolt micro adjust setback head, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.3 mm | 1.3 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 554 mm | 573 mm | 591 mm | 610 mm |
| Reach | 395 mm | 424 mm | 453 mm | 468 mm |
| Top Tube Length | 550 mm | 584 mm | 619 mm | 639 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 534 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1080 mm | 1116 mm | 1153 mm | 1175 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 711 mm | 718 mm | 726 mm | 732 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

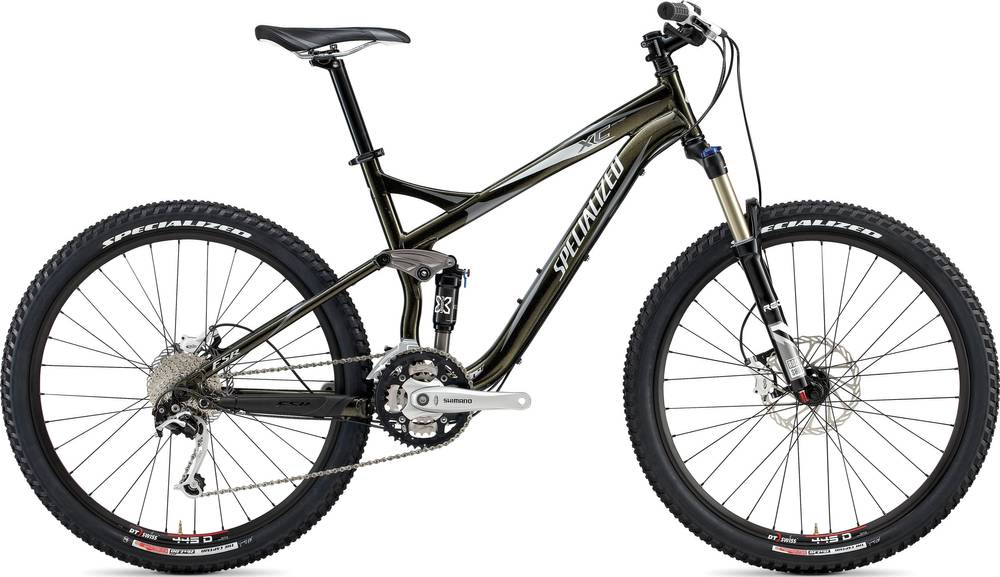

FSRxc Expert belongs to the Specialized Fsrxc model. Specialized launched 10 bikes of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this bike has the X Fusion 02RC model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the FSRxc Expert bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FSRxc Expert comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Specialized FSRxc Expert bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
